HDPE Tube Bundle DB Series: 7-ways 14/10mm with PE Sheath 1.2mm
1 APPLICATION
l Developed to be the best solution of direct burial modular-tubes family, featuring a non-metallic construction.
l A bundle of micro-or mini-tubes (regular wall size) is surrounded by single thin HDPE sheath. The design makes the duct assemblies suitable for outdoor direct buried or other existing ducts or cable trays. The micro ducts are optimized for best cable blowing performance.
2 MODULAR-TUBE

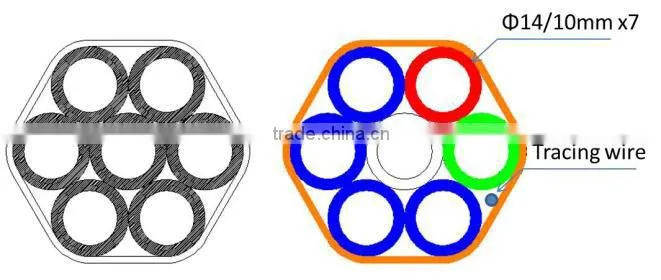

3 CONSTRUCTION
|
INNER TUBES
|
Materials |
HDPE (High-density Polyethylene) |
Diameter |
14/10mm |
|
Color options |
White, red, green, blue Fully colored |
|
Inner surface |
Ribs with silicon |
|
Layer |
2 |
|
Numbers |
7 |
|
|
OUTER SHEATH
|
Materials |
HDPE (High-density Polyethylene) |
Thickness |
1.2mm (Nominal) |
|
Diameter |
44.4mm / 40.6mm (±1.7mm) |
|
Color |
Orange |
|
Tracing wire |
x 1 |
4 SPECIFICATION
² Individual Microduct 14/10mm:
|
Outer dia. (mm) |
Wall thickness (mm) |
Ovality (%, before coiled) |
Max. Pulling force (N) |
Microduct Φ14/10mm |
14.0 ± 0.1 |
2.0 ± 0.1 |
≤5 |
1010 |
Tube bundle:
|
UNIT |
Properties |
Weight |
Kg/km |
675 |
Bending radius |
mm |
750 |
Tensile strength |
N |
6800 |
Internal pressure |
bar |
12 |
Crush performance |
N |
2000 |
Outdoor exposure limit |
Month |
6 |
Maximum delivery lengths on drums |
m |
500, 1000 |
STANDARD:
Crush performance |
IEC 60794-1-2-E3 |
Tensile |
IEC 60794-1-2-E1 |
Bend |
IEC 60794-1-2-E11 |
Flexibility |
IEC 60794-1-2-E8 |
Storage:
Completed packages of the HDPE Tube Bundle on drums can be stored outdoor max. 6 months upon the date of production.
l Storage temperature: -40°C ~+70°C
l Installation temperature: -20°C ~+50°C
l Operating temperature: -40°C ~+70°C
Exhibition:
•Packing: By drum.
•Shipping: By air. By sea. By TNT. By DHL.By UPS etc.
ODM,Product training,FTTH?solution consultant,After sale service,Fiber blowing solution consultant,Fiber tools&toolkits consultant.
•Production Capacity:We can provide 6000km per month.
•R&D department:10 designer.
•The Exhibition experience:ECOC,OFC,NETCOM,Local Exhibition.
•Cooperation customers:CMCC,Huawei,Tyco,ZTE,3M,Dura-Mine,GM,MG...
•Transaction Term:EXW,FOB,CNF,CIF.
•Payment Term:100% T/T in advance.
