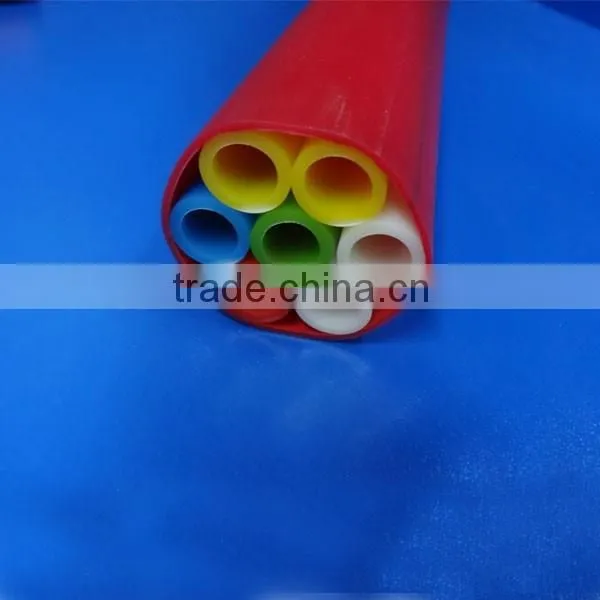

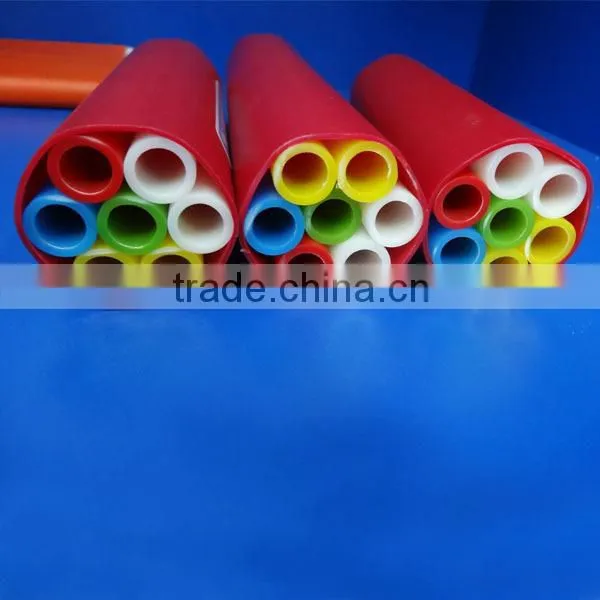

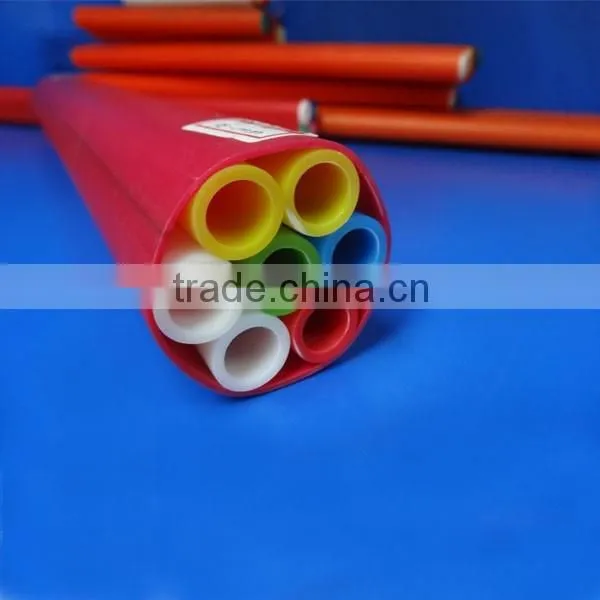

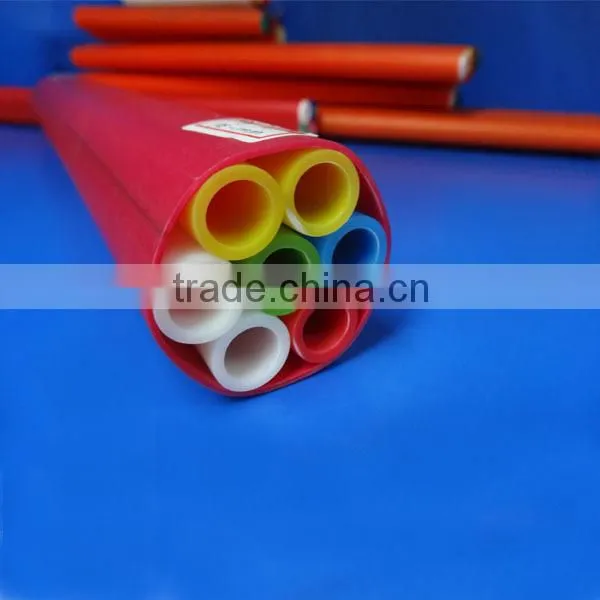

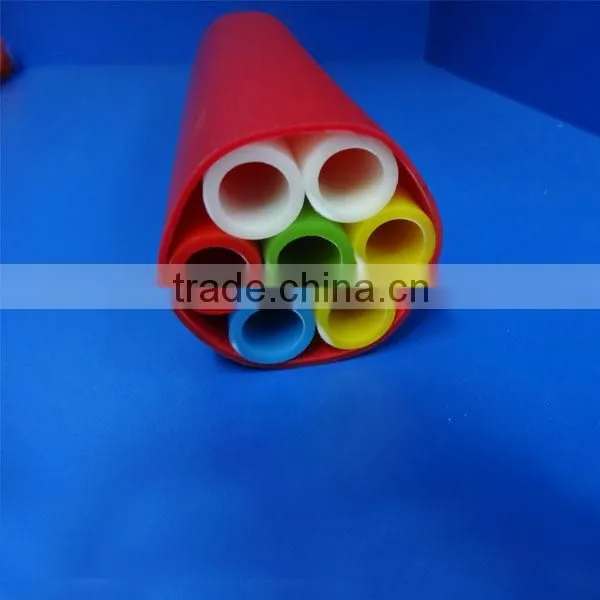

HDPE Tube Bundle DB Series: 7-ways 12/8mm with PE Sheath 1.2mm
1 APPLICATION
l Developed to be the best solution of direct burial modular-tubes family, featuring a non-metallic construction.
A bundle of micro- or mini-tubes (regular wall size) is surrounded by single thin HDPE sheath. The design makes the duct assemblies suitable for outdoor direct buried or other existing ducts or cable trays. The microducts are optimized for best cable blowing perform
2 MODULAR-TUBE
3 CONSTRUCTION
INNER TUBES |
Materials |
HDPE (High-density Polyethylene) |
Diameter |
12/8mm |
|
|
Color
Color options |
Red, blue, green, yellow, grown, white, grey Fully colored |
|
Inner surface |
Ribs with silicon |
|
Layer |
2 |
|
Numbers |
7 |
|
|
|
|
OUTER SHEATH |
Materials |
HDPE (High-density Polyethylene) |
Thickness |
1.2mm (Nominal) |
|
Diameter |
38.4mm / 35.2mm (±1.7mm) |
|
Color |
Orange |
1 SPECIFICATION
² Individual Microduct :
|
Outer dia. (mm) |
Wall thickness (mm) |
Ovality (%, before coiled) |
Max. Pulling force (N) |
Microduct Φ12/8mm |
12.0 ± 0.1 |
2.0 ± 0.1 |
≤ 5 |
935 |
² Tube bundle:
|
UNIT |
Properties |
Weight |
Kg/km |
558 |
Bending radius |
mm |
560 |
Tensile strength |
N |
5480 |
Internal pressure |
bar |
16 |
Crush performance |
N |
2000 |
Outdoor exposure limit |
Month |
6 |
Maximum delivery lengths on drums |
m |
500, 1000 |
² STANDARD:
Crush performance |
IEC 60794-1-2-E3 |
Tensile |
IEC 60794-1-2-E1 |
Bend |
IEC 60794-1-2-E11 |
Flexibility |
IEC 60794-1-2-E8 |
² Storage:
Completed packages of the HDPE Tube Bundle on drums can be stored outdoor max. 6 months upon the date of production.
Storage temperature:-40°C~ +70°C
Installation temperature:-20°C~ +50°C
Operating temperature: -40°C~ +70°C
Exhibition:

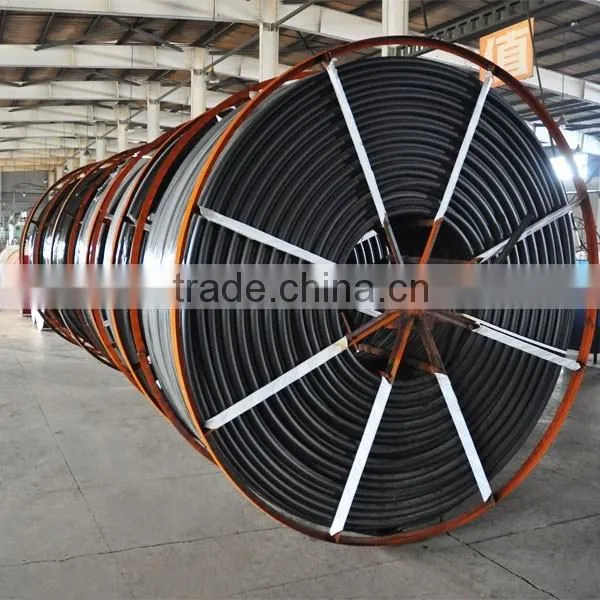

•Packing: By drum.
•Shipping: By air. By sea. By TNT. By DHL.By UPS etc.
•Production Capacity:We can provide 6000km per month.
•R&D department:10 designer.
•The Exhibition experience:ECOC,OFC,NETCOM,Local Exhibition.
•Cooperation customers:CMCC,Huawei,Tyco,ZTE,3M,Dura-Mine,GM,MG...
•Transaction Term:EXW,FOB,CNF,CIF.
•Payment Term:100% T/T in advance.
