FCST15210 Micro Duct End Cap
Brief Introduction:
To keep Micro Duct networks free of debris, seal the system with Push
Fit End Caps. With the same functionality as the Push-Fit Connectors, installation simply involves pushing the Micro Duct into the End Cap. The End Cap can be attached and removed 10 times while still maintaining the same high performance characteristics.
Push-Fit Micro Duct End Stop Connector operate at 15 BAR (218 psi) with a maximum permissible leakage rate of 1cc/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 25 BARS (363 psi).

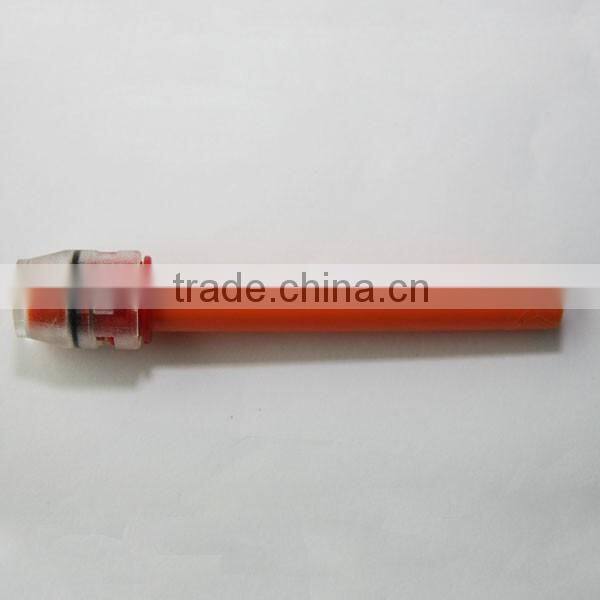

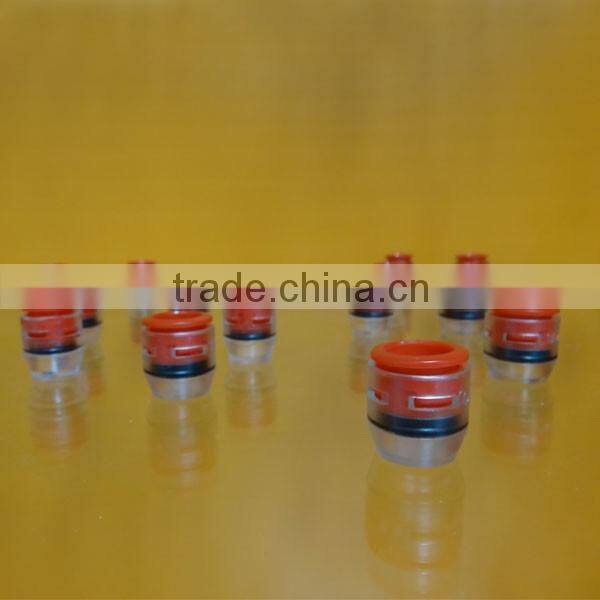

Product Picture:
Specification:
Model No. |
Part Name |
Blow Pressure |
Pull Strength For HDPE tube |
Pull Strength For LSZH tube |
Life time |
FCST15201 |
3 mm DI end stop |
>18bar |
≥350N |
>150N |
10 Years |
FCST15202 |
4 mm DI end stop |
>18bar |
≥350N |
>150N |
10 Years |
FCST15203 |
5 mm DI end stop |
>18bar |
≥350N |
>150N |
10 Years |
FCST15204 |
6 mm DI end stop |
>18bar |
≥350N |
>150N |
10 Years |
FCST15205 |
7 mm DI end stop |
>18bar |
≥350N |
>150N |
10 Years |
FCST15206 |
8 mm DI end stop |
>18bar |
≥350N |
>150N |
10 Years |
FCST15207 |
10 mm DI end stop |
>18bar |
≥350N |
>150N |
10 Years |
FCST15208 |
12 mm DI end stop |
>18bar |
≥350N |
>150N |
10 Years |
FCST15209 |
14 mm DI end stop |
>18bar |
≥350N |
>150N |
10 Years |
FCST15210 |
16 mm DI end stop |
>18bar |
≥350N |
>150N |
10 Years |
Design Lifetime:
The connector shall meet all performance requirements over a minimum period of 10 years at the normal condition.
Exhibition:
•Packing: By carton
•Shipping: By air. By sea. By TNT. By DHL.By UPS etc.
ODM,Product training,FTTH solution consultant,?After?sale?service,Fiber blowing solution consultant, Fiber tools&toolkits consultant
•Production Capacity: We can provide 50,000pcs per week
•R&D department: 10 designer
•The Exhibition experience:ECOC,OFC,NETCOM,Local Exhibition
•Cooperation customers:CMCC,Huawei,Tyco,ZTE,3M, Dura-Mine,GM,MG...
•Transaction Term: EXW,FOB,CNF,CIF
•Payment Term: 100% T/T in advance
