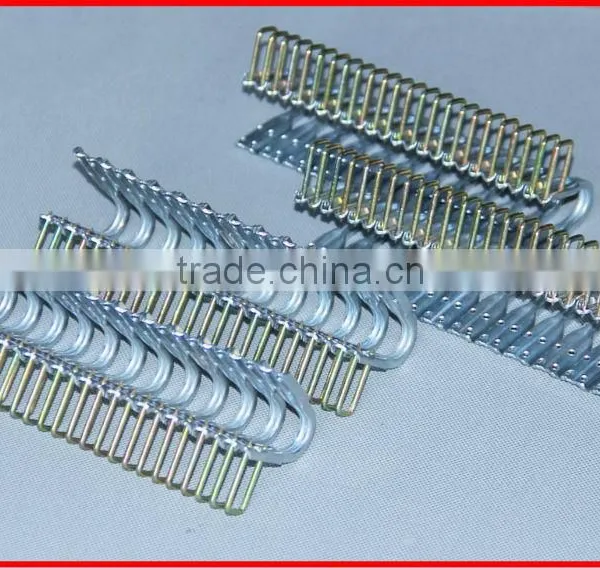

Chinese Professional Manufacturer High Strength Grade 1600KN/mm Mining Use Conveyor Belt Bolt Hinged Fasteners

US$ 1 - 85 MOQ: 1 Meter

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

DJ-1600

Foshan Nanhai Wei Shuo Rubber And Plastic Product Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen Fo Shan

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DJ

Model Number DJ-1600

Specifications

bolt hinged fasteners
1,special steel material
2.good joint straight,easy to connect
3.small impact to roller & cleaner

Product name: high strength grade 1600KN/mm mining use conveyor belt bolt hinged fasteners

Features:

1. Joint strength cover average. long lifespan in usage.

2. Good joint straight, easy to be connected.

3. U type body design, low fastener body, small impact to roller and conveyor belt cleaner.

make up transmission smoothly

Specification and Data:

Item No	Belt thick(mm)	Tensile strength	Min Roller diameter	Each box/pcs	Weight/box	installation machine
DJ-1000	5-10	1000KN/M	250mm	200mm/10pcs	2.5KG	WDJ-1000
	7-12				2.6KG
DJ-1400	8-13	1400KN/m	260mm	200mm/10pcs	2.9KG	WDJ-1400
	10-15				3.9KG
DJ-1600	8-12	1600KN/m	360mm	200mm/10pcs	3.3KG	WDJ-1600
	13-17				3.3KG
DJ-2000	13-18	2000KN/m	360mm	200mm/10pcs	4.2KG	WDJ-2000
	15-20				5KG
DJV6	6-12	1000KN/mm	230mm	800mm,1000mm,1200mm/2pc	N/A	WDJV6
DJ-2500	7-12	2500KN/mm	380mm	56pcs/box for 1m joint	N/A	WDJ2500
	13-18
DJT38	12-16	3000KN/mm	360mm	200mm/10pcs	N/A	WDJT38D
	13-20
DJ2003	13-18	2000KN/mm	360mm	200mm/10pcs	N/A	WDJ2003
	15-20
DJ2002	6-12	1000KN/mm	230mm	800.1000.1200mm/2pc	N/A	WDJ2002
DJT12	8-12	1600KN/mm	360mm	200mm/10pcs	N/A	WDJT12
	12-16

Application:

mainly used for conveyor belt, transport coal,hard rock,sand and gravel,asphalt,pulp paper in these plants or factory.

Corresponding Hinge Pin is used.

Hinge Pin diameter	LENGTH Could custom any length as per request	Applying Tensile strength
7mm	650mm,800mm,1000mm,1200mm,1400mm	1600KN/mm
8mm	1000mm,1200mm,1400mm	2000KN/mm
9mm	1200mm,1400mm,1600mm	2500KN/mm
10mm	1200mm,1400mm,1600mm	3000KN/mm
12mm	1200mm,1400mm,1600mm,2000mm	3500KN/mm
