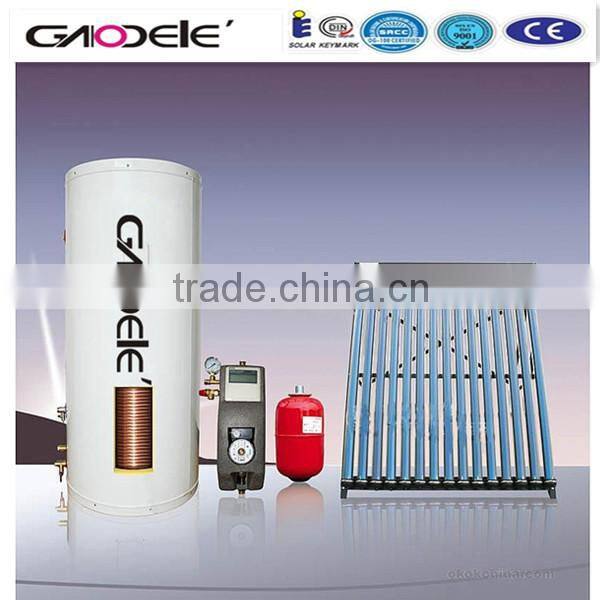

100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating

100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating thumbnail-1
100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating photo-1
US$ 500 - 1,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GAODELE
Model Number:
GDL-SPU58-1800-260
Contact Supplier Request Quote Chat Now
Zhejiang Gaodele New Energy Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GAODELE
Model Number GDL-SPU58-1800-260

Specifications

lar collector on selling
2.no pressure solar collector
3.own vacuum tube production line
4.low price solar heater

             100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating


Product Description

   solar Water Heater Material and Features:

  sola water heater system TankInner Tank Thickness0.5 mm
Outer Tank Thickness0.4 mm
Inner Tank MaterialSS 304
Outer Tank MaterialGalvanized steel/Stainless steel
ColorAccording to customers'
  solar water heater system BracketBracket MaterialGalvanized steel Powder Coated
Thickness1.2mm
ColorAccording to customers'
  solar water heater system ReflectorMaterialstainless steel/Aluminium Alloy
TypeStrip Type
  solar water heater system InsulationMaterialPUF
Thickness50 mm
  solar water heater Capacity80 to 420 Liters
  solar water heater Warranty5 years

 solar Water Heater vacuum tube Material and Features:

Tube structureAll-glass double-tube co-axial structure
Glass materialBorosilicate 3.3glass
Outer tube diameter and glass thicknessΦ =47± 0.7mm & T=1.6mm ± 0.15mm
Φ =58± 0.7mm & T=1.6mm ± 0.15mm
Inter tube diameter and glass thicknessΦ =37± 0.7mm & T=1.6mm ± 0.15mm
Φ =47± 0.7mm & T=1.6mm ± 0.15mm
Tube length1500mm, 1800mm
 Coating materialAL-N/SS/Cu
Absorber coatingSediment methodThree Targets magnetron sputtering plating
 Absorptiona: ≥92%(AM1.5)
 Emittanceε ≤ 3.4% (80° C± 5° C)
Vacuum degreeP ≤ 5.0× 10 -3 Pa
Hail resistanceΦ 25 mm
Pressure-endure0.8 Mpa
Temperature-endure250° C
Life> 15 years

solar Water Heater Working Principle:

100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating

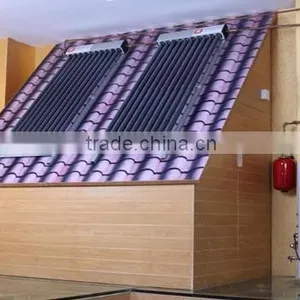

solar water heater Details Pictures:

100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating

100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating

100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating


Packaging & Shipping
ModelVacuum TubeTankLoading Qty
Size /mmNoCapacity/L20GP40GP40HQ
GDL-SPH-10-10058×18001010051107125
GDL-SPH-15-15058×180015150408296
GDL-SPH-20-20058×180020200336797
GDL-SPH-25-25058×180025250255261
GDL-SPH-30-30058×180030300244958
GDL-SPH-40-40058×180040400173642
GDL-SPH-50-50058×180050500153136



100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating


Company Information

100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating

solar water heater Quality Control

100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating



solar water heater Certificates

100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating

solar water heater Exhibition

100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating



Our Services

100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating100,150,200,250,300,400,500,600,700,750,800,900,1000 Liters Split Pressurized Solar Heating System For Home Hot Water Heating
