Help CenterSwimming Pools Evacuated Tube Solar Water Heating System
Related Products
-
Project Swimming Pool Solar Water Heater Sollector&solar GeysersUS$ 245 - 500MOQ: 1 Set -
Swimming Pool Solar Water Heater Solar CollectorUS$ 245 - 500MOQ: 1 Set
-
Swimming Pool Solar HeaterUS$ 245 - 500MOQ: 1 Set
-
High Efficience Solar Water Heater System For HotelUS$ 245 - 500MOQ: 1 Set
-
Solar Water Heater Project For South AfricaUS$ 245 - 500MOQ: 1 Set
Specifications
1.supply hot water for big project ;2.good design and low price;
3.10- 15 days a container ;
4.CE,CC ;
5.long life span.
Solar Heating System For Swimming Pool
solar collector Material and Features:
| Mainfold | Outer Tank Material | Alloy Aluminum,1.4mm |
| Color | Slivery | |
| Tube | Quantity | According to customers' |
| Length | 1800 mm | |
| O.D. | 58 mm | |
| Type | 3-Target Vacuum Tube | |
| Bracket | Bracket Material | Alloy Aluminum |
| Thickness | 2.2mm | |
| Color | Slivery | |
| Capacity | According to customers' | |
| Warranty | 5 years | |
Vacuum Tube Material and Features:
| Tube structure | All-glass double-tube co-axial structure | |
| Glass material | Borosilicate 3.3glass | |
| Outer tube diameter and glass thickness | Φ =47± 0.7mm & T=1.6mm ± 0.15mm | |
| Φ =58± 0.7mm & T=1.6mm ± 0.15mm | ||
| Inter tube diameter and glass thickness | Φ =37± 0.7mm & T=1.6mm ± 0.15mm | |
| Φ =47± 0.7mm & T=1.6mm ± 0.15mm | ||
| Tube length | 1500mm, 1800mm | |
| Coating material | AL-N/SS/Cu | |
| Absorber coating | Sediment method | Three Targets magnetron sputtering plating |
| Absorption | a: ≥92%(AM1.5) | |
| Emittance | ε ≤ 3.4% (80° C± 5° C) | |
| Vacuum degree | P ≤ 5.0× 10 -3 Pa | |
| Hail resistance | Φ 25 mm | |
| Pressure-endure | 0.8 Mpa | |
| Temperature-endure | 250° C | |
| Life | > 15 years | |
Working Principle:
Professional Service:

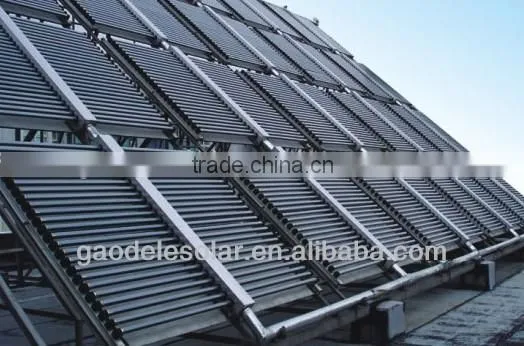

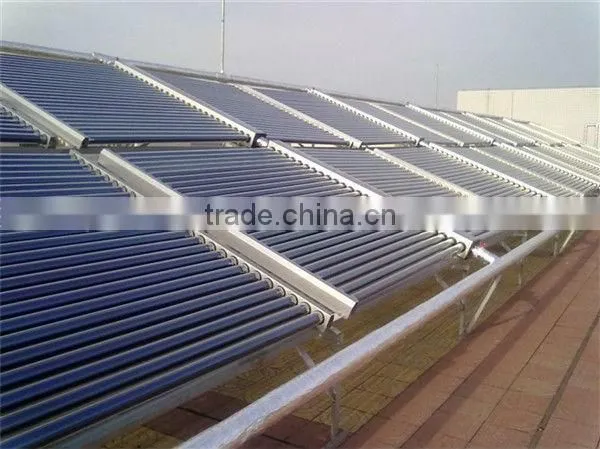

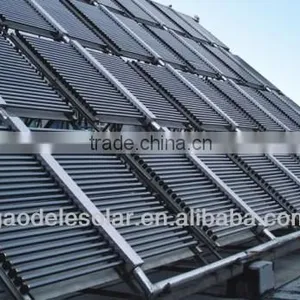

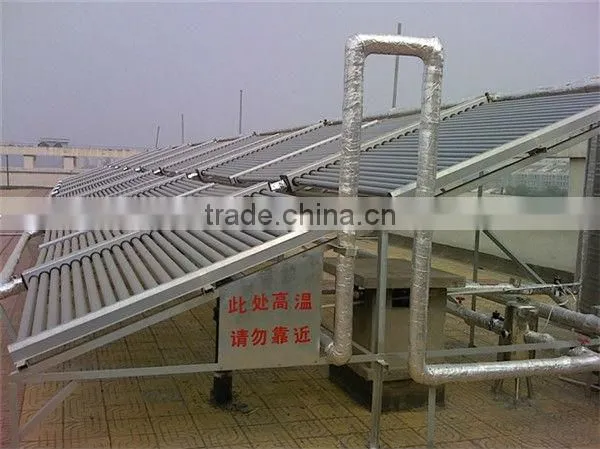

Large Project of Solar Collector for swim pool, hotel, factory and so on

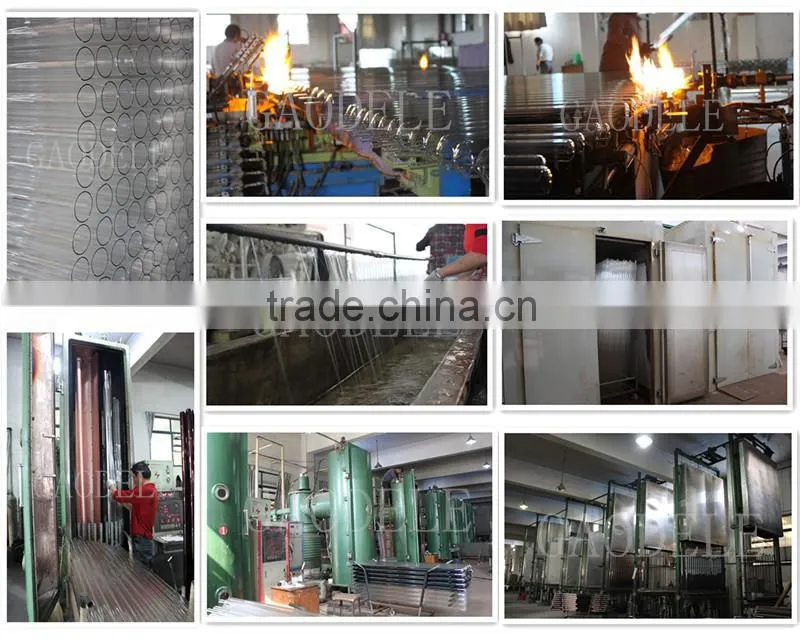

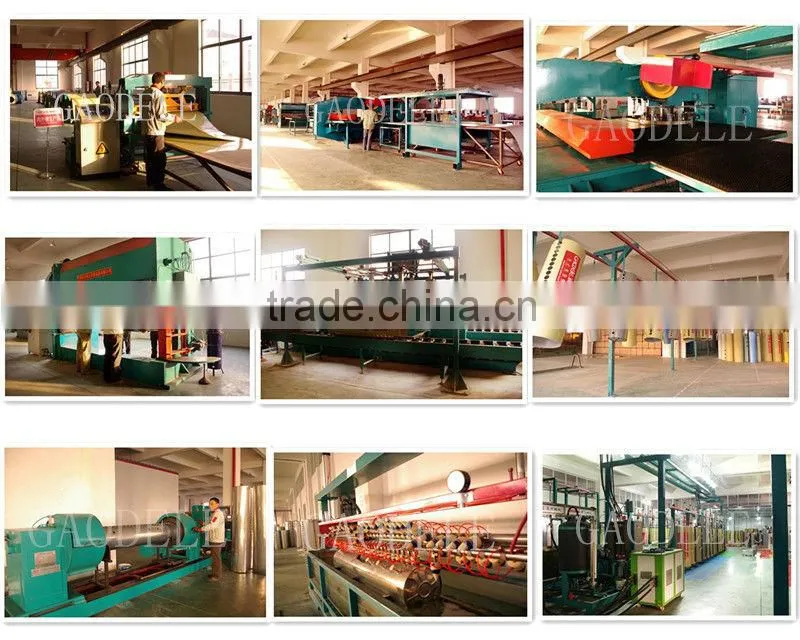

solar collector Main Production Line

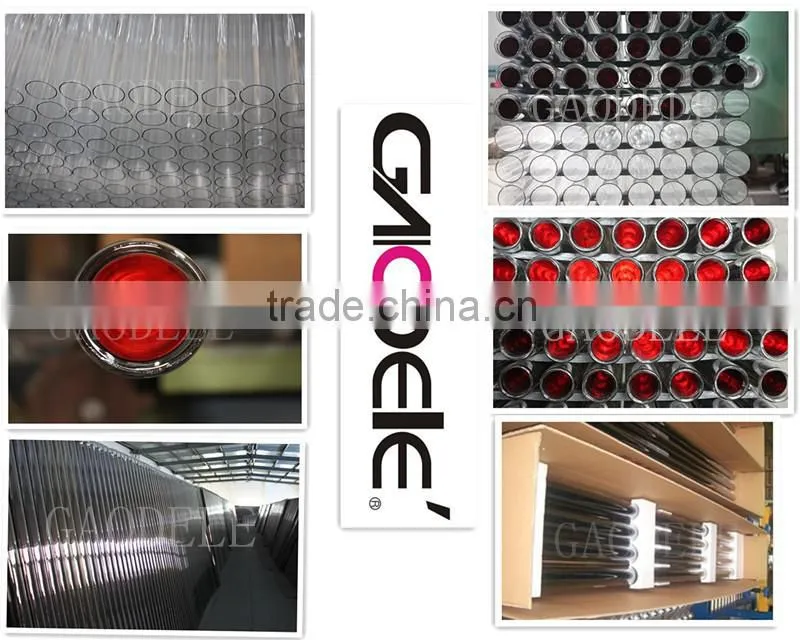

solar collector Quality Control
solar collector Certificates
Send Inquiry to This Supplier
