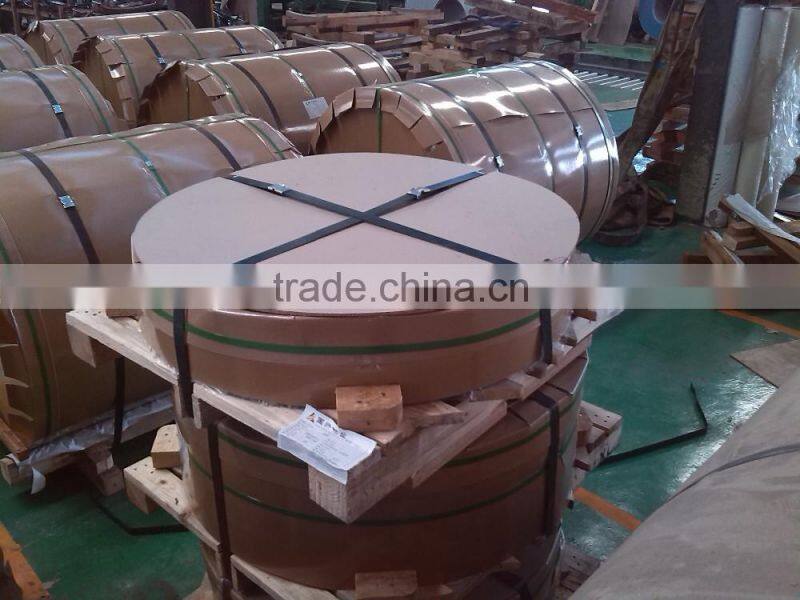

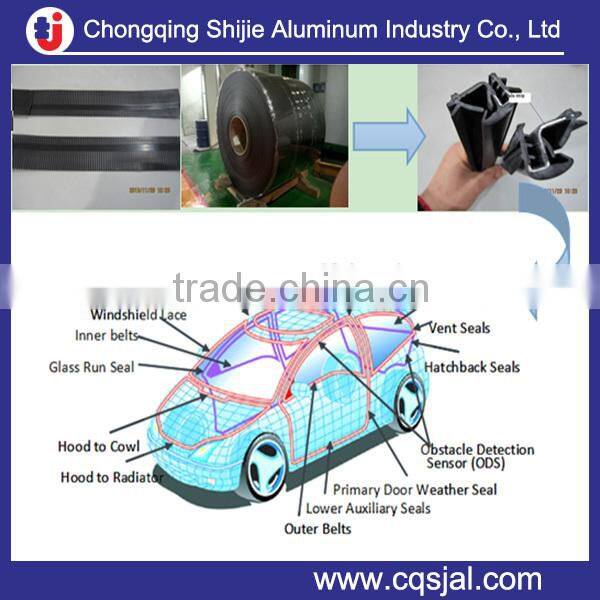

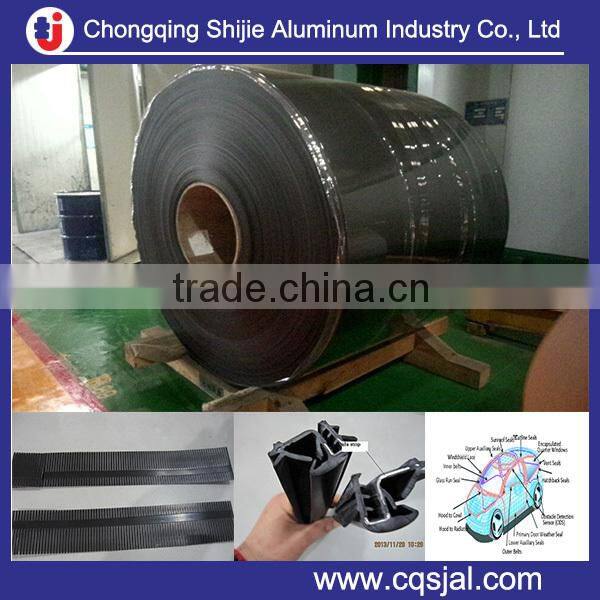

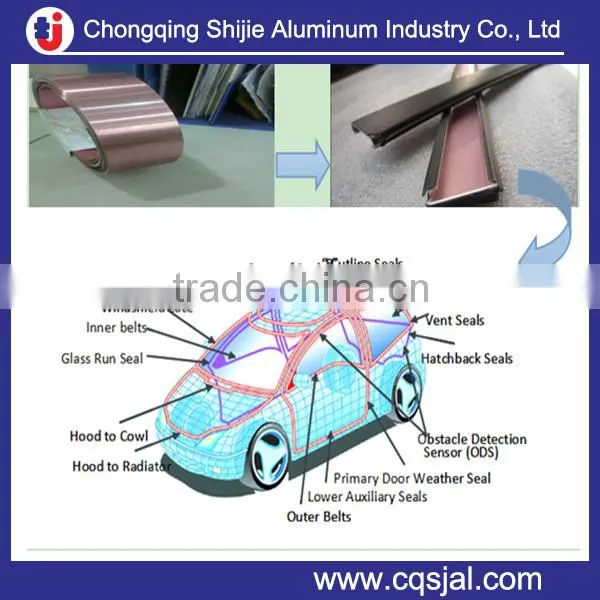

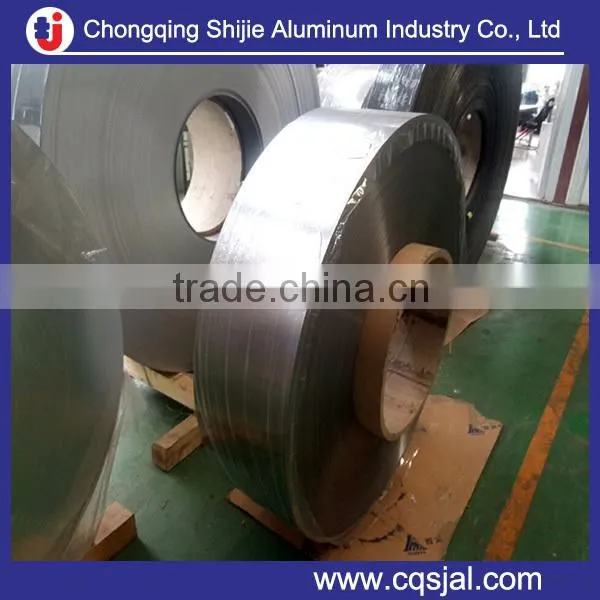

5754 alloy aluminum strips for EPDM rubber sealing strip
Advatage we can support you :
aluminum strips for rubber sealing strip
1, fast delivery :15~ 35 days produce leading time
2, free sample available and delviered by us .
3, MOQ: 1000kgs
4,factory price
4, flexible payments term: 5~30% advance payments , the balance by L/C or T/T against bill of loading copy.
5, Kinds of quality certification is vailable such as ISO , SGS etc
Available Alloy:
| 1xxx grade alloy | 1100 1050 1060 1200 |
| 2xxx series alloy | 2024 2014 2219 |
| 3xxx series alloy | 3003 3004 3005 3105 3104 |
| 5xxx series alloy | 5005 5052 5182 5083 5754 5182 |
| 6xxx series alloy | 6061 6082 6006 6063 |
| 7xxx series alloy | 7075 7071 |
| 8xxx series alloy | 8011 8079 |
| Available temper | H14 ,H24, H48,H22,H16,h46 H18, H48,T6,T3,T111,T321,O,F |
| thickness |
0.5mm 0.6mm 0.7mm 0.8mm 0.9mm 1.0mm 1.1mm 1.2mm 1.5mm 2mm 3mm 4mm 5mm 6mm 7mm and customized |
| Products standards | GB/T3880 ,ASTM,YS |
| end appliacation |
roofing, Ceiling, curtain wall, Aluminum window and door, Traffic signs, Cabinets, ACP, Tank, Channel letter, Can tab/body/lid, Marine, Insulation,Refrigerator,Bottle caps, contruction , building ,decoration ,automobile ,hardware parts,radiators ,automobile bodies,boats |
| Alloy |
Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Al |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | -- | -- | 0.03 | 0.03 | 99.6% | |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | -- | -- | 0.05 | 0.03 | -- | 99.5% |
| 1100 | 0.95 | 0.05~0.2 | 0.05 | -- | -- | -- | 0.1 | -- | -- | 99% | |
| 3003 | 0.6 | 0.7 | 0.05~0.2 | 1.0~1.5 | -- | -- | -- | 0.1 | -- | -- | Remainder |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.2~0.6 | 0.1 | -- | 0.25 | 0.1 | -- | Remainder |
| 3105 |
0.6 |
0.7 |
0.3 |
0.3~0.8 |
0.2~0.8 |
0.2 |
-- |
0.4 |
0.1 |
-- |
Remainder |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | -- | 0.1 | -- | -- | Remainder |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5~1.1 | 0.1 | -- | 0.25 | -- | -- | Remainder |
| 8011 | 0.5~0.9 | 0.6~1.0 | 0.1 | 0.2 | 0.05 | 0.05 | -- | 0.1 | 0.08 | -- | Remainde |
| coating | PE (Polyester)/EPOXY/PVDF |
| color | Ral color chart , as per clients sample |
| Coating thickness | 10~35um |
| color warranty | 10~20 Years |
Adhesion |
5B(EN ISO-2409:1994) |
| T benb | 0T~3T |
Impact resistance |
No cracking and peeling(A.S.T.M D2794-1993) |
| Mek resistance Test | More than 100times |
| color quality |
No color difference , high flatness , smooth surface , hard to be polluted , easy to be cleaned , high wearability , uniform coating ,cost advantage |
Embossed aluminum end application :
| Stucco embossed |
Stucco embossed aluminum plactes /coil would be widely used in corrosion prevention ,insulation ,interior and exterior decoration ,refrigerator ,freezer liner and top grade standiums etc , can be composited with craft paer, the aluminum plates could be more effetcive in corrosion prevention and thus could be unsed on petroleum ,electric power , chemical industry and stadium construction . |
| Checkered / tread aluminum sheet ,coil |
used for the floors of the bus .cars/ automobiles and other surfaces of the floors . |
| aluminum corrugated sheet / coil | could be widely applied to roofing and walling |
End application products show:
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) , loading 20~25 tons .
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) , loading 30~40 tons.
| products | package method | unit weight |
| aluminum sheet | paper enleaved on wooden pallet | 1~2.5tons |
| aluminum coil | eye to sky (vertical) or sky to wall(horizontal) | 1~2.5tons |
| aluminum circle | packed in wooden case | as clients request |
| aluminum foil | big roll or small roll | 70~2500kgs |
Chongqing Shijie aluminum Industry Co.Ltd
We offer aluminum material including the mill finish aluminum sheet /coil ,color coated aluminum sheet ,such as PE/PVDF/EPOXY prepainted aluminum meatal, Automobile weather strip usage PVC/TPE/PP/EPDM basing coated aluminum strip ,also including the kinds of embossed aluminum sheet . Our material widely used for contruction ,building ,decoration ,automobile ,device parts. Our team with rich experience on exporting and abtained clients trust and good reputation from all of the world market.
lor coated embossed aluminum coil
2.aluminum alloy plates
3.aluminum alloy coil
4.Aluminum foil
5.aluminum strip
6.stucco, tread embossed aluminum plates composited with craft paper
7.Special coated aluminum strip (this coated alu strip can be bond on PVC ,ABS ,TEP ,PP ,TPV material for automobiale weather strip)
Certificate : ISO9001 ,Argentina charmber legalized original certificate :
