Home > Products > Transformer Materials > Aluminium Foil/Aluminium Strip/Aluminium Sheet for Transformer Foil Winding
Aluminium Foil/Aluminium Strip/Aluminium Sheet for Transformer Foil Winding
US$ 3.00
≥1000 Kilograms
- Shanghai
- T/T L/C
- 20 days
You May Like
-
Corrugated Fin Wall Transformer Tanks/Finwall Tanks for Distribution Transformers Painted or Galvanized
-
Crepe Paper Tube/Dennison Paper Tube for Transformer/Electrical Insulation
-
Laminated Wood Plate/Densified Wood Plate for Transformer Insulation
-
Thermally Upgraded Diamond Dotted Paper TU DDP for Transformer Insulation
-
Oil Duct Stick/Strip/Spacer/Duct Spacing for Transformer Winding Insulation
-
Transformer Pressboard/High Density Pre-Compressed Pressboard for Transformer
Product Details
| Grade | 1000 Series | Technique | Cold Drawn | |
| Application | Other, Transformer Winding | Surface Treatment | Mill Finish | |
| Alloy | Non-alloy | Temper | Other, O | |
| Transport Package | Pallet | Specification | Customized | |
| Trademark | Firstep | Origin | China |
Product Description

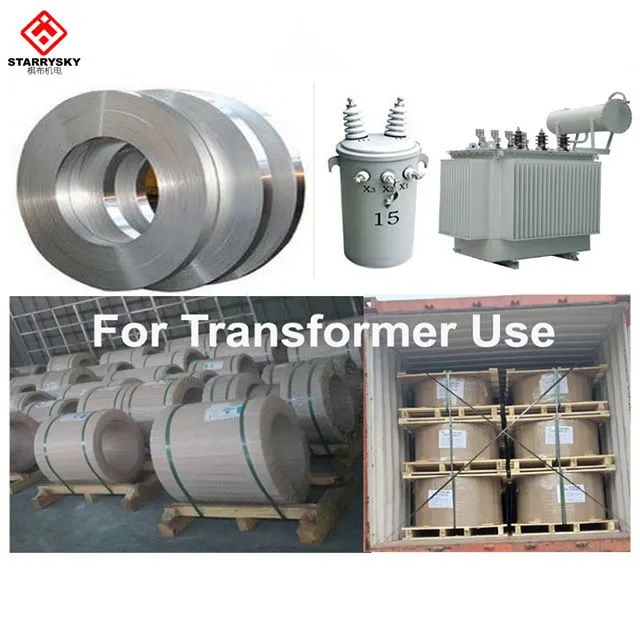

Aluminium Foils for Transformer Windings, 1060-O
Alloy & Temper: | 1060-O |
Conductivity: | IACS% 61 min. |
Thickness: | 0.2mm-4.0mm |
Width: | 20mm - 2000mm |
Inner Diameter: | 300mm, 400mm, 500mm |
Outer Diameter: | 850mm -1000mm |
Height of Burrs: | 0.02mm Max. Suitable for Transformer Foil Winding. |
Surface Quality: | Flat, Smooth and no scratches or rolling marks |

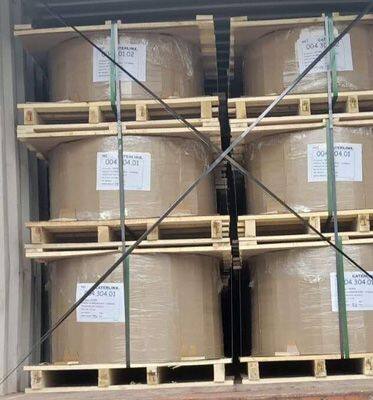

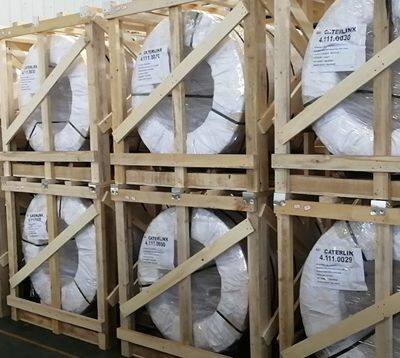

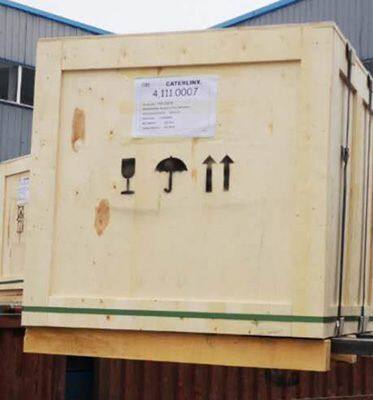

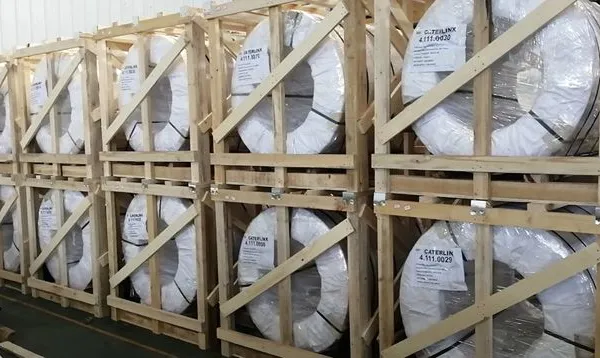

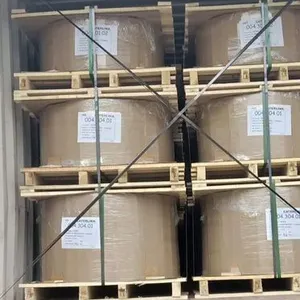

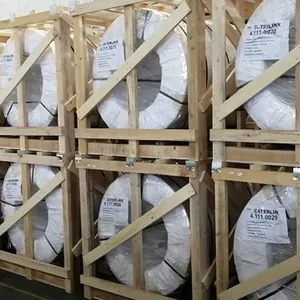

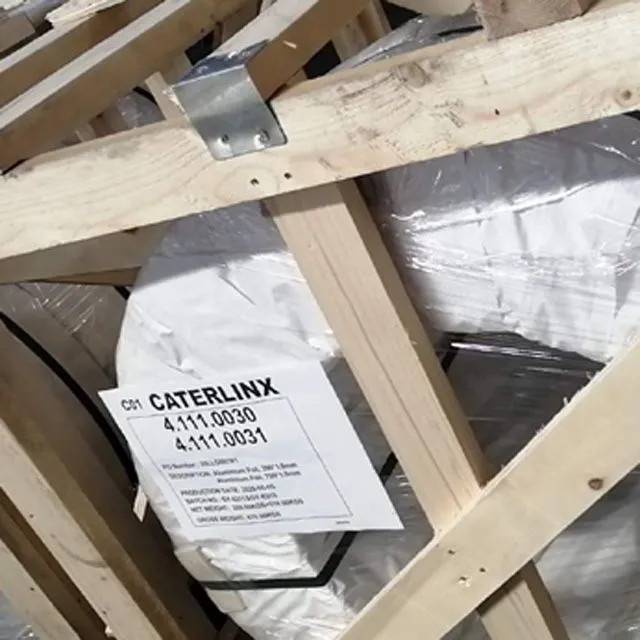

Packaging: | With Interleaving Protective Paper; Eye to Sky or Eye to Wall packaging; |
Application: | Oil Immersed Distribution Transformers, Dry Type Transformers |
