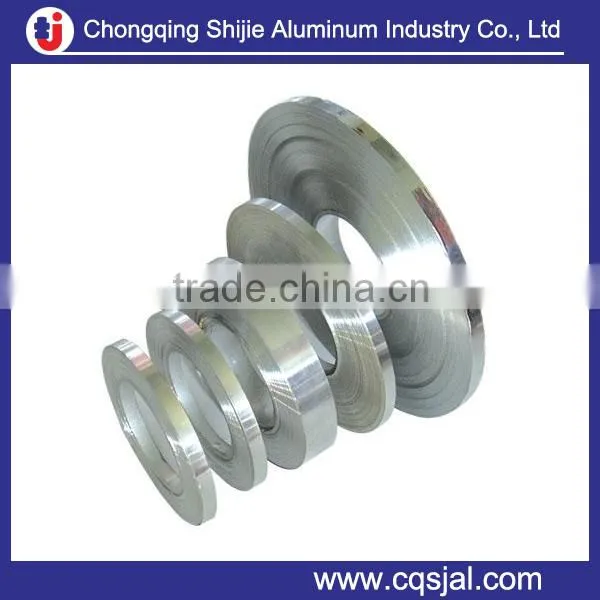

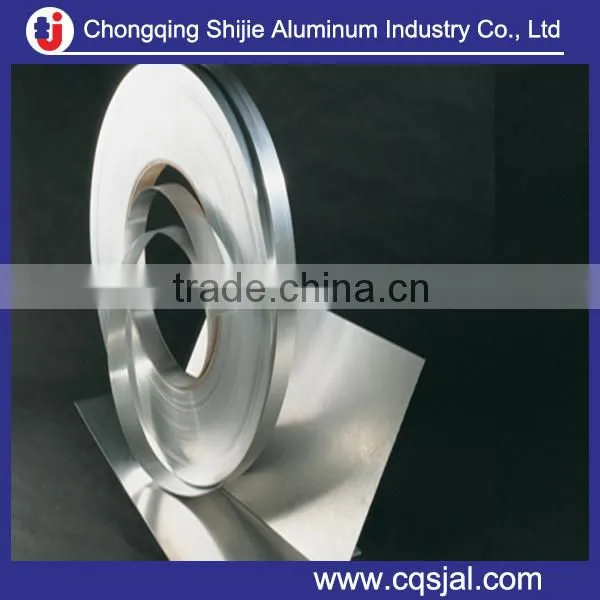

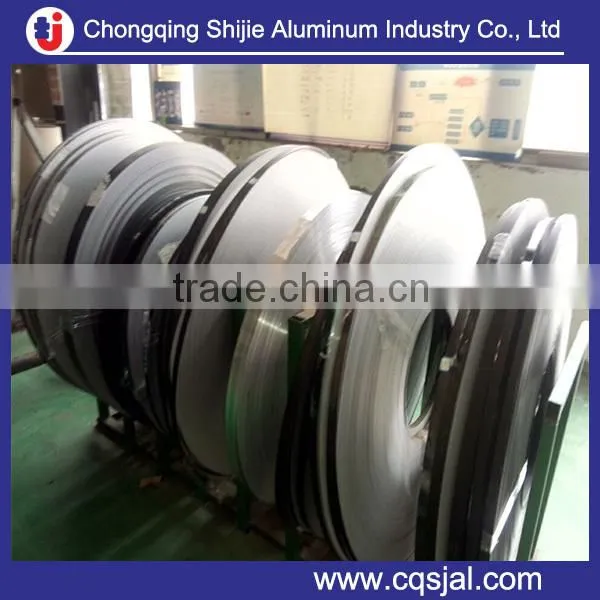

1050 1060 3003 3105 3005 5052 Aluminium strip for transformer
Advatage we can support you :
Aluminium strip for transformer
1, fast delivery :15~ 35 days produce leading time
2, free sample available and delviered by us .
3, MOQ: 1000kgs
4,factory price
4, flexible payments term: 5~30% advance payments , the balance by L/C or T/T against bill of loading copy.
5, Kinds of quality certification is vailable such as ISO , SGS etc
Aluminum strips details :
Aluminium strip are used in various applications such as refrigerator, commercial freezer, cable wrap, capacitor, PP cap, anti-theft strips, aluminum/plastic composite pipes, PS substrates and etc
| alloy | Temper |
Thickness (mm) |
Width | Coil ID | Application |
|
1100,1050, 1060,1070, 3003,3105, 3004,5052, 8011 |
O,H12,H14, H16,H18 |
0.02~4.00 | 5~100 |
75, 150, 300, 400, 500 |
Cable,cosmetic cap, aluminum composite, pipe, transformer, shutter,aluminum battery |
|
8011,1235, 1060,1100, |
o | 0.10~0.20 | 100~300 | 75,150 | Cable Wrapping |
|
1060, 1100, 8011 |
O, H22 | 0.20~1.5 | 30~250 | 75 | Aluminum plastic composite pipe |
| 1060, 1070 | O | 0.20~2.0 | 100~1200 |
150, 300, 400, 500 |
Low voltage electrical transformer |
| 8011 | H18, H19 | 0.08~0.10 | 140~600 | 75,150 | Water tank radiator in Automobile |
| 8011 | O | 0.10~0.13 | 60 | 75 | Aluminum tube for kitchen ventilator |
| 5052, 3004 | H19 | 0.125~0.25 | 15~100 | 300 | Roller shutter |
| 3004 | O | 0.25~0.40 | 85~400 | 75, 150 | Aluminum lamp base |
Chemical limits data sheet :
| Alloy |
Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Al |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | -- | -- | 0.03 | 0.03 | 99.6% | |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | -- | -- | 0.05 | 0.03 | -- | 99.5% |
| 1100 | 0.95 | 0.05~0.2 | 0.05 | -- | -- | -- | 0.1 | -- | -- | 99% | |
| 3003 | 0.6 | 0.7 | 0.05~0.2 | 1.0~1.5 | -- | -- | -- | 0.1 | -- | -- | Remainder |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.2~0.6 | 0.1 | -- | 0.25 | 0.1 | -- | Remainder |
| 3105 |
0.6 |
0.7 |
0.3 |
0.3~0.8 |
0.2~0.8 |
0.2 |
-- |
0.4 |
0.1 |
-- |
Remainder |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | -- | 0.1 | -- | -- | Remainder |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5~1.1 | 0.1 | -- | 0.25 | -- | -- | Remainder |
| 8011 | 0.5~0.9 | 0.6~1.0 | 0.1 | 0.2 | 0.05 | 0.05 | -- | 0.1 | 0.08 | -- | Remainde |

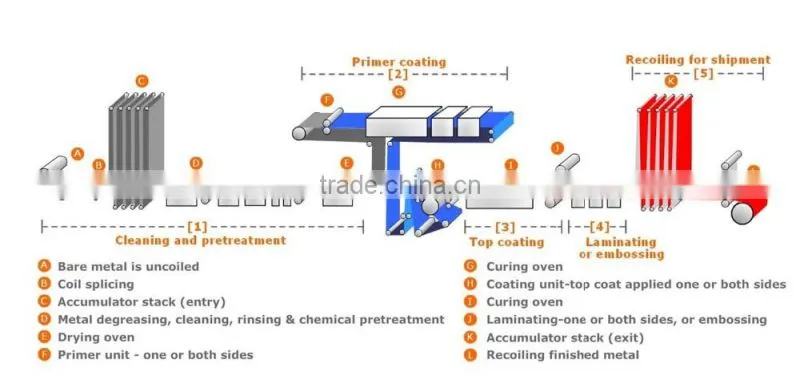

| coating | PE (Polyester)/EPOXY/PVDF |
| color | Ral color chart , as per clients sample |
| Coating thickness | 10~35um |
| color warranty | 10~20 Years |
Adhesion |
5B(EN ISO-2409:1994) |
| T benb | 0T~3T |
Impact resistance |
No cracking and peeling(A.S.T.M D2794-1993) |
| Mek resistance Test | More than 100times |
| color quality |
No color difference , high flatness , smooth surface , hard to be polluted , easy to be cleaned , high wearability , uniform coating ,cost advantage |
End application products show:

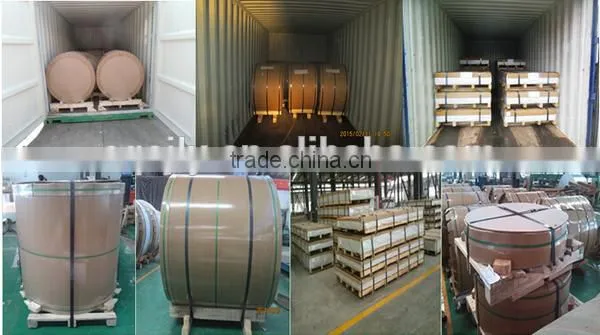

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) , loading 20~25 tons .
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) , loading 30~40 tons.
| products | package method | unit weight |
| aluminum sheet | paper enleaved on wooden pallet | 1~2.5tons |
| aluminum coil | eye to sky (vertical) or sky to wall(horizontal) | 1~2.5tons |
| aluminum circle | packed in wooden case | as clients request |
| aluminum foil | big roll or small roll | 70~2500kgs |
Chongqing Shijie aluminum Industry Co.Ltd
We offer aluminum material including the mill finish aluminum sheet /coil ,color coated aluminum sheet ,such as PE/PVDF/EPOXY prepainted aluminum meatal, Automobile weather strip usage PVC/TPE/PP/EPDM basing coated aluminum strip ,also including the kinds of embossed aluminum sheet . Our material widely used for contruction ,building ,decoration ,automobile ,device parts. Our team with rich experience on exporting and abtained clients trust and good reputation from all of the world market.
lor coated embossed aluminum coil
2.aluminum alloy plates
3.aluminum alloy coil
4.Aluminum foil
5.aluminum strip

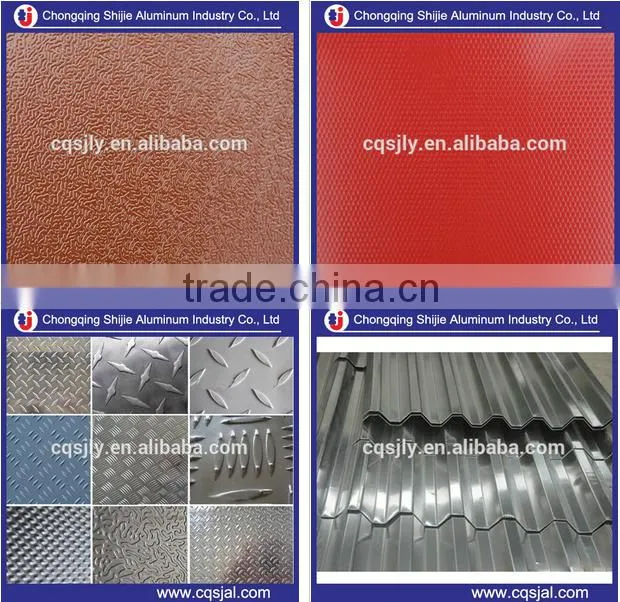

6.stucco, tread embossed aluminum plates composited with craft paper
7.Special coated aluminum strip (this coated alu strip can be bond on PVC ,ABS ,TEP ,PP ,TPV material for automobiale weather strip)
Certificate : ISO9001 ,Argentina charmber legalized original certificate :
