5754 alloy aluminum strip for automobile weather strip
| Products Name | aluminum strip |
| alloy and equivalnet | 5754 ,5052 ,3003,3005 |
| thickness | 0.2~3mm |
| width | 10~2500MM |
| Surface | coated/mill /embossed |
| Products standards | GB/T3880 ,ASTM,YS |
| MOQ | 1000KGS |
| Produce leading time | 20~30working days |
| Payments term | L/C ,T/T ,D/A,D/P |
| Sample | availbale (deliery fee by clients) |
| Roller inner diameter | 200,405,505,508mm |
| Roller out diameter | 1000~1500mm |
| coating | reasonable for bond on PVC ,EPDM ,TPE ,PP ,ABS ,EPDM material |
| color | Black , gray , pink |
| Coating thickness | 10~25Um |
Adhesion |
5B(EN ISO-2409:1994) |
| T benb | 0T~3T |
Impact resistance |
No cracking and peeling(A.S.T.M D2794-1993) |
| Mek resistance Test | More than 100times |

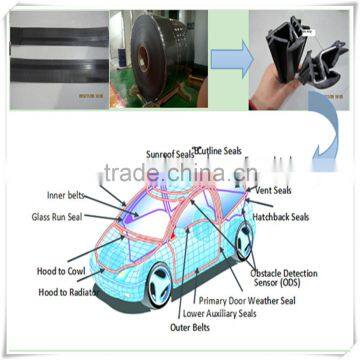

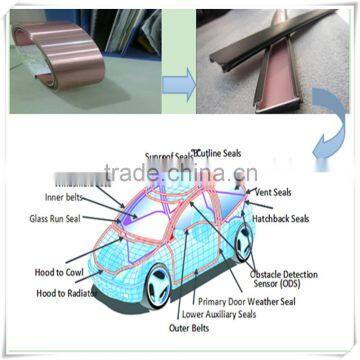

| End application | automobile weather strips , car sealing strips |
Embossed details :
| For PVC. ABS weather strip | For EPDM weather strip |
|
|
| For TPE. PP .PE Weather strip | |
| |
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) , loading 30~40 tons.
| products | package method | unit weight |
| aluminum sheet | paper enleaved on wooden pallet | 1~2.5tons |
| aluminum coil | eye to sky (vertical) or sky to wall(horizontal) | 1~2.5tons |
| aluminum circle | packed in wooden case | as clients request |
| aluminum foil | big roll or small roll | 70~2500kgs |
Our Products can be apply to kinds of industry , transportaation , gutter ,building ,decoration , house appliance , construction etc.
lor coated embossed aluminum coil
2.aluminum alloy plates
3.aluminum alloy coil
4.Aluminum foil
5.aluminum strip
6.stucco, tread embossed aluminum plates composited with craft paper
7.Special coated aluminum strip (this coated alu strip can be bond on PVC ,ABS ,TEP ,PP ,TPV material for automobiale weather strip)
Quality Test systerm
Chongqing Shijie aluminum Industry Co.Ltd
We offer kinds of aluminum material including the aluminum sheet /coil ,color coated aluminum sheet ,such as PE/PVDF/EPOXY/ PVC/TPE/EPDM basing coating ,also including the kinds of embossed aluminum sheet . Our material widely used for contruction ,building ,decoration ,automobile ,device parts. Our team with rich experience on exporting and abtained clients trust and good reputation from all of the world market.
coating line& slitting line :
PE color prepainted aluminum rolls/coils/strips/sheets
Our PE coated aluminium coils are manufactured through precise roller coating & baking technology.
The various colors are bright and vivid with small color difference. Our PE coated aluminium coils are of high impact resistance and could be easily processed and their properties reach national standard of China.
It can be used in indoor decoration, roofing, ceiling, curtain walling, composite panel, signboard, electric appliances and car, etc.
PVDF color prepainted aluminum rolls/coils/strips/sheets
Our PVDF coated aluminium coils are manufactured through roller coating & baking with coating materials supplied by BECKER of Sweden and PPG of America, both of which are of world famous.
With high quality PVDF materials, our PVDF coated coils have great weather-resistance, anti-ultraviolet capability and corrosion-resistance. In normal outdoor environment, The color and gloss of our coated coils could keep in good condition for more than 20 years. Due to their high abrasion, impact resistance and flexibility, our coated coils are of excellent workability.
It is widely used for Aluminum Composite Panels (ACP), roofing, curtain walling etc.
Paint : We apply high quality paint for the coating process ,including PPG paint
The aluminum coating production line
Certificate : ISO9001 ,Argentina charmber legalized original certificate :
1. More than 15 years experience in the aluminium industry.
2. Our clients from all walks of life,and also cooperate with our local goverment. Products be used in airport ,train station ,museum ,hospital building and pop can,we have good feedbacks from our clients.
3. Technical support provide.Specialzed engineer help clients solve the problems about our products and to satisfied clients requirements.
4.We have our own factory to manufacture various kinds of adhesive tapeby ourselves,which makes them more competitive price and the lead time will be as short as it can be.Paying a visit to factory is accepted.
5.OEM and some of your special requirement will be accepted.
6.Own prefessional QC systems and professional workers guarantee you the high quality of our products.
7.You can be sure to find the right product for your application within our range.
1, Are you factory or manufacturer ?
we are factory and the one of Chinese top coating aluminum material manufacturer.
2,Can you provide the sample ?
Yes ,We can supply the sample for you check the quality .but you need arrange the express cost .
3, what is your MOQ?
Normally the Mimium order quantity is 5000KGS. but it is also possible less them 5000kgs if there is available material in stock,
4,Do you accept the L/C?
Yes , we accept the L/C payment term .
5, How about your production leading time?
Normally it can be finished within30days
If you have any inquiry on our prdocuts or interest into discussing more details , pls feel free to contact me .
