Specifications
Selector Switch:1.The Recommended Torque: 0.9Nm
2.Dimensions: 4 x 3.1 x 7.2cm/1.57 x 1.22 x 2.83in
3.Weight: 37g/1.31oz

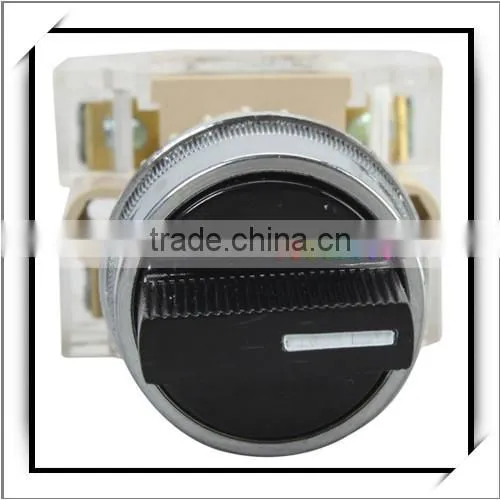

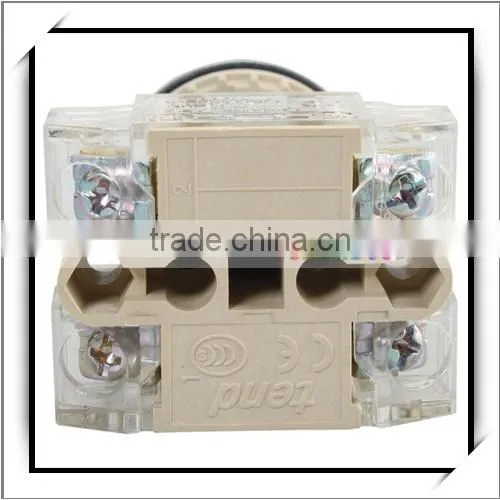

T2SS4 2A 2 Position Rotary Selector Switch
Introductions:
You may have viewed several oneline markets to search a satisfying Second Gear Selector Switch. Or maybe you have gone to the physical stores. But we suggest that you should make an order here so that you have no regrets. This kind of second gear selector switch combines good functions of the top selector switch and is suitable for opening and closing an electrical circuit, and can be used as change-over of electrical circuits, motor, instrument and main switch. A professional second gear selector switch for you
Features:
1. To combine the functions of the tap selector switch
2. Suitable for on/off an electrical circuit, change-over of electrical circuits, motor, instrument and main switch
3. Safety, quality assurance
4. Reasonable prices, affordable
5. It is the best choice for you.
Specifications:
1. The Rated Insulation Voltage UI (v) 660V
2. Mechanical Life: General Button ≥ 3 million times, dial up or down more than 300,000 times
3. Conventional Thermal Current Ith (a) 10A
4. The Electric Life: more than 600,000 other 100,000 times
5. Rated Capacity AC-15 220V/6A, 380V/4A, 660V/2A,DC-13 440V/0.3A,220V/0.5A,110V/1A,
6. The Recommended Torque: 0.9Nm
7. Power Frequency Withstand Voltage: 2500V/60s
8. Terminal: applies to IEC standard screwdriver, 2nd (+/-glyph) and screws with DIN washers
9. Contact Resistance ≤ 25m ohm
10. Temperature: -25~+55 ° c
11. Dimensions: 4 x 3.1 x 7.2cm/1.57 x 1.22 x 2.83in
12. Weight: 37g/1.31oz
13. Color: Black
Package Includes:
1 x Selector Switch
