Specifications
Waterproof Camera DVR Kit1.1/3.7" high-grade color CMOS sensor
2.24 infrared LEDs, up to 25 meters night vision distance
For Liview 4 Channel Full D1 Waterproof P2P CCTV Camera DVR Kit
Introductions:
The Liview 4-Channel Full D1 Waterproof P2P DVR Kit with 4pcs 1/3.7" Color CMOS 600TVL Bullet Cameras tells you what's happening during 24 hours, giving you peace of mind. It provides everything you need to turn your existing PC into a powerful surveillance system, including a DVR, 4 bullet cameras and full accessories. The security cameras use 1/3.7" high-grade color CMOS sensor to provide clear and sharp images with 600 TV lines. Equipped with 24 infrared LEDs, it is capable of night vision recording at a distance up to 25 meters. In addition, the DVR supports P2P function for wireless connection. You can rest assured to rely on it!
Features:
1. Turn your existing PC into a powerful surveillance system
2. Outstanding waterproof performance
3. Capable of monitoring and recording video
4. Support wireless connection with P2P function
5. Advanced digital video compression technology
6. 1/3.7" high-grade color CMOS sensor
7. High image quality, high video performance
8. 24 infrared LEDs, up to 25 meters night vision distance
9. Solid aluminum alloy casing, reliable and durable
10. Compact design, easy installation and setup
11. Come with full accessories
Specifications:

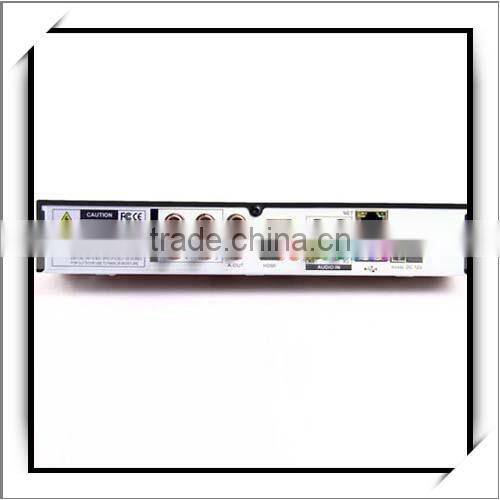

DVR
1. Model: 4CH H.264 StandAlone DVR with P2P function
2. Video Compression Format: H.264
3. Video System: NTSC / PAL
4. GUI OSD: YES
5. Video Input(BNC): 4CH BNC input(composite video signal 1Vp-p 75Ω BNC)
6. Video Output(BNC): 1CH BNC output
7. Audio Input/Output: 1CH audio input,1CH audio output(RCA)
8. Maximum Recording Rate: D1:704×480 pixels with 120 IPS <NTSC> /704×576 pixels with 100 IPS <PAL> HD1:704×240 pixels with 120 IPS <NTSC> /704×288 pixels with 100 IPS <PAL>
CIF:352×240 pixels with 120 IPS <NTSC> /352×288 pixels with 100 IPS <PAL>
QCIF:176×120 pixels with 120 IPS <NTSC> /176×144 pixels with 100 IPS <PAL>
9. Image Quality Setting: Supper Best, Well, Good, Medium, Normal and Bad
10. Hard Disk Storage: Support 1 SATA HDD, max capacity is 2TB / pcs
11. Multiplex Operation: Live Display / Record / Playback / Backup / Network Transmit
12. Recording Mode: Manual / Timer / Motion
13. Playback Mode: Multiple slow and rapid play speeds, manual and single-frame play modes, and support of drag the sliding bar to set.
14. Backup Device: USB Flash Drive, USB Hard Disk, USB and Network Backup
15. Pre-alarm Recording: Recording for 10 seconds before alarming
16. Network Protocol: TCP / IP,PPPOE ,DDNS and NTP, ARSP
17. Ethernet Remote View: Support remote surveillance up to 10 users simultaneously
18. CMS Software: YES
19. Mobilephone View: YES
20. Electronic Zoom: YES
21. VGA Interface: YES
22. Log Record Function: YES
23. Image Tour :YES
24. Video Loss Detection :YES
25. Video Adjustable: Hue / Saturation / Contrast / Brightness adjust
26. PTZ Control: YES
27. USB Mouse: YES
28. Power Source: DC 12V
29. Key Lock(Password Protection): YES
30. Power-down Recovery Function: YES
31. Dimensions: (10.23 x 9.21 x 1.77)"/ (26 x 23.4 x 4.5)cm
32. Color: Black
33. Material: Metal

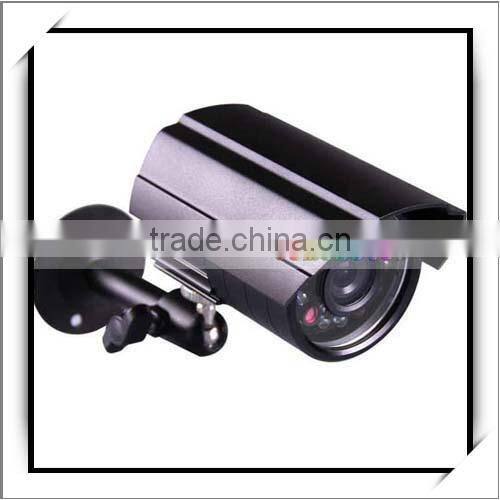

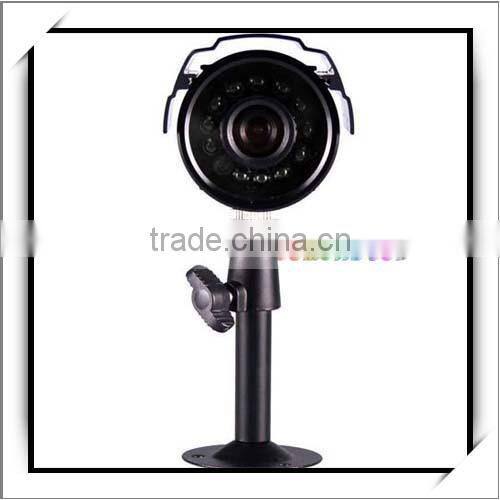

Camera
1. Model: 600TVL Outdoor / Indoor Camera
2. Image Sensor: 1/3.7"Color CMOS
3. TV System: NTSC
4. Lens: 3.6mm
5. Scanning System: 2:1 Interlace
6. Infrared Irradiation Distance: 24 Ultra Strong Infrared LEDs- Visible up to 80 ft (20-25m)
7. Minimum Illumination: 0 Lux (IR On)
8. Horizontal Resolution: 600 TV-Lines
9. Synchronization System: Internal Synchronization
10. S/N Ratio: > 48dB
11. Gamma: 0.45
12. Auto Gain Control: Built in
13. Weatherproof: Yes
14. Vandalproof: Yes
15. Operation Temperature: 14°F~122°F / -10°C ~50°C
16. Power: 12V DC
17. Power Consumption: 460mA
18. Back Light Compensation: Auto
19. Video Out: 1.0V p-p 75O BNC Connector
20. Auto Iris: Video / DC
21. Dimensions: (3.3 x 4.3 x 4.3)" / (8.38 x 10.92 x 10.92)cm (L x W x H)
22. Material: Aluminum Alloy
23. Color: Black
24. Total Weight: 141.1oz / 4000g

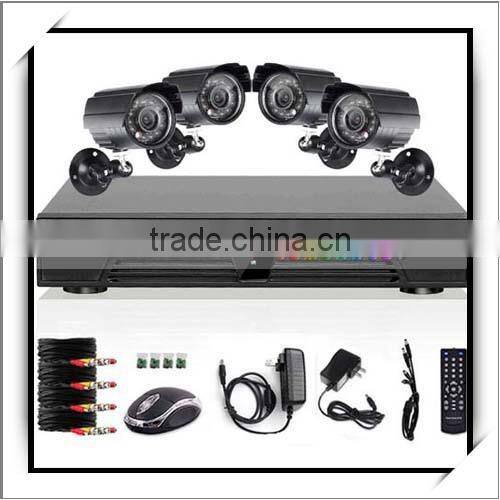

Package Includes:
1 x DVR
4 x Security Cameras
4 x Surveillance Video + Power All-in-one Cables
2 x Power Adapters
1 x 1-4 Splitter Cable for Security Camera
1 x IR Remote Control
1 x Mouse
4 x Screw Suits
