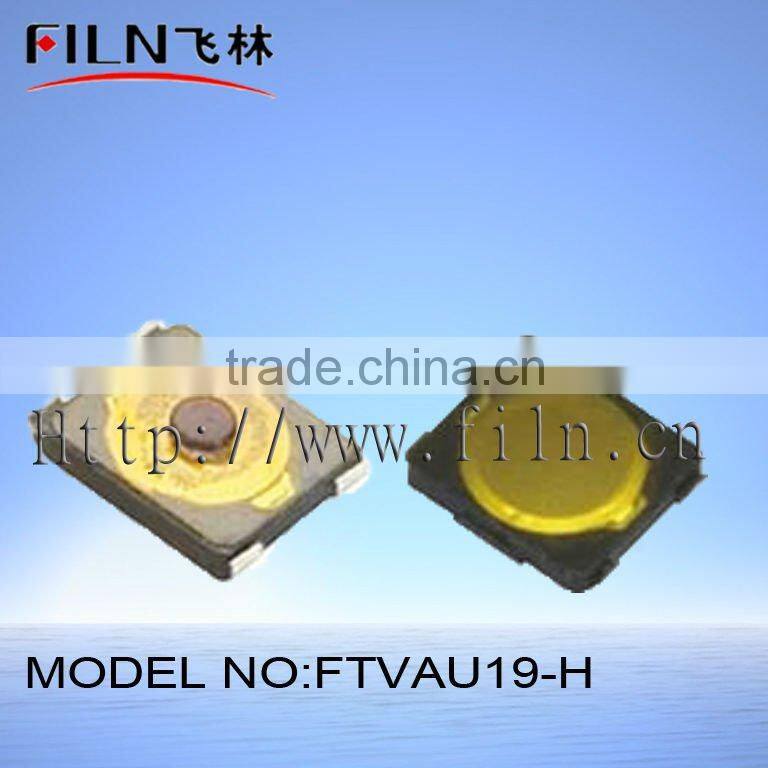

Help CenterFTVAU19-H Water Proof Tact Switch
Related Products
-
KCD8-303 Rocker Kcd2US$ 0.038 - 0.05MOQ: 100 Pieces -
New Style Green Blue Yellow Red 12V 24V 110V 250V Waterproof in Line on off on SwitchUS$ 0.01 - 0.2MOQ: 1000 Pieces
-
FL3-019 3 Pin Big Rocker Switch 20a 125v 15a 250vUS$ 0.05 - 1.1MOQ: 1000 Pieces
-
Spst 3 Pins on off Mini Round Illuminted Rocker Switch 6a 250vacUS$ 0.1 - 0.2MOQ: 1 Piece
-
New Style,12VDC,50pcs/lot ASW-20D, 5 Colors Rocker SwitchUS$ 0.02 - 0.2MOQ: 50 Pieces
Specifications
1.vertical push2.mini type
3.SMD
4.ROHS
Features
1.Improve mounting density of components on PC board.
2.Reflow solderable.
3.Contacts are completely sealed ,enhancing reliability.
.
Applications
1.Portable audio
2.Mobile phones and personal digital assistants
3.Operation of various digital devices
Specification
operating temperature range -30°c to +85°c
rating 50mA 12v DC
insulation resistance 100MΩ min 100V DC
dielectric strength 250V AC for 1 min
contact resistance 100mΩ max
lifetime 100,000cycles min
operating force 180gf 250gf 160gf 90gf
travel 0.15 ± 0.05mm

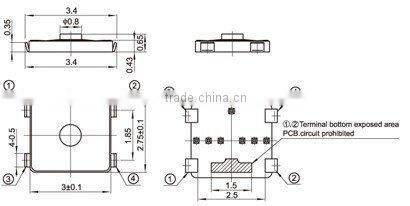

Diagram
