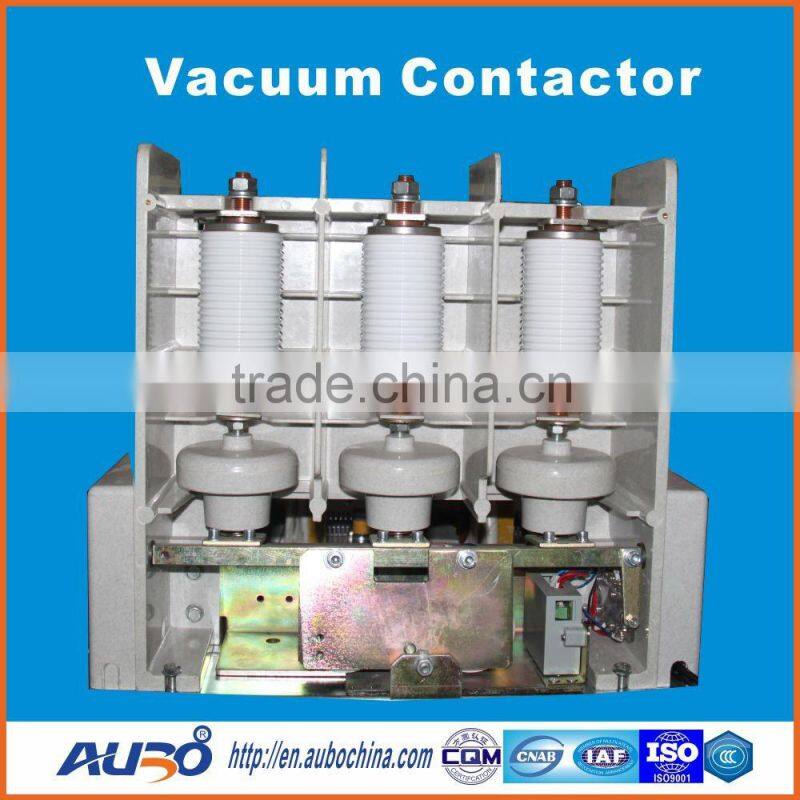

3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor

3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor thumbnail-1
3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor thumbnail-2
3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor thumbnail-3
3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor thumbnail-4
3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor photo-1
3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor photo-2
3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor photo-3
3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor photo-4
US$ 400 - 800 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
AUBO
Model Number:
A-VC-05
Contact Supplier Request Quote Chat Now
Nanjing Aubo Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name AUBO
Model Number A-VC-05



Company Information



   Nanjing Aubo Electric Co. Ltd, simply as Aubo, is specialized in producing variable speed motor drive and soft starter,for both medium and low voltage , as well as simple PLC and motor protector , plus MV vaccum contactor and insulator. Aubo deals with both product trading and engineering solution. It also distributes VACON inverter from Finland, and AuCom soft starter from New Zealand.

  Aubo has a factory in Nanjing and sales offices across the country, while the international customers are to be looked after by its Shanghai office.



Product Description

 3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor



Name Unit Value
Main circuit Rated working voltage (Ue) kV 7.2 12
  Rated working current (Ie) A 160, 250,400,630
  Rated frequency (fr) Hz 50~60
  Rated making capacity A 10Ie (AC-4)
  Rated breaking capacity A 8Ie (AC-4)
  Rated short time withstand current A 10Ie
  Rated peak withstand current A 25Ie
  Rated short circuit duration s 4
  Power frequency withstand voltage Between phases,phase to earth kV 32 42
  Vacuum breaks kV 32 42
  Lightening impulse withstand voltage kV 60 75
Control circuit Rated voltage1 (Us) V AC or DC. 110/220
  Rated power (Ps) Electric holding VA ≤1000/100 (absorbing/holding)
  Mechanical holding VA ≤900/600 (closing/opening)
Auxiliary circuit Form     3a+3b
  Rated value     AC380V/5A, DC380V/1A
Control circuit, auxiliary circuit to earth power frequency withstand voltage kV 2
Rated operating frequency Long-term or mechanical holding type time/h 300
Short-term time/h 600
Mechanical endurance2     10000 times 100
Electrical endurance     10000 times 25(AC-3),10(AC-4)
Mechanical characteristics Closing time ms ≤200
Original opening time ms ≤160(electric holding);                                      ≤60(mechanical holding)
3-phase synchronism ms ≤3
Closing tripping ms ≤10
Remark: 1.rated control voltage can be made according to customer’s requirements.
2.for mechanical holding type, the interlock mechanism should be changed every 300,000 times.





Our Services

1,We can design the job for your specs or your project

2,We provide site commissioning on demand



Packaging

3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor





Shipping

We have several transport options for customer to choose:



1, Transport by sea



2, Transport by  truck



3, Transport by train



4, Transport by express service



5. Transport by air,  (to be confirmed )

3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor



Trade Term

1.Delivery term: FOB, CIF,EXW are available.



2.Payment term:30% prepayment, 70% before dispatching



3.Production lead-time: 1-2 weeks



4.Shipping lead-time: 4-6 weeks



5.Logistics: best service forwarder with good price, long term partner.





Certifications





3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor3 Ph 3 Pole AC Or DC 110v 220v 630a ls Electrical Contactor
