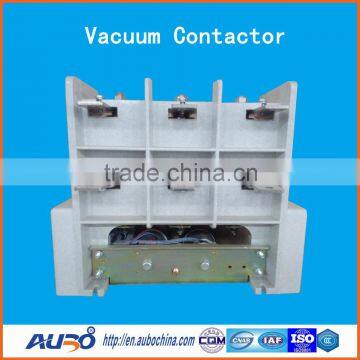

High Voltage Electrical Vacuum Contactor For Controlling 3AC Motor

Name: High Voltage Electrical Vacuum Contactor For Controlling 3AC Motor
Brand: AUBO
Availability: InStock

FOB Price

USD $400 - $800 / Unit

1 Unit(Min.Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

AUBO

Model Number

A-VC-05

Product Description

Company Information

Nanjing Aubo Electric Co. Ltd, simply as Aubo, is specialized in producing variable speed motor drive and soft starter,for both medium and low voltage , as well as simple PLC and motor protector , plus MV vaccum contactor and insulator. Aubo deals with both product trading and engineering solution. It also distributes VACON inverter from Finland, and AuCom soft starter from New Zealand.

Aubo has a factory in Nanjing and sales offices across the country, while the international customers are to be looked after by its Shanghai office.

Product Description

Name			Unit	Value
Main circuit	Rated working voltage (Ue)		kV	7.2	12
	Rated working current (Ie)		A	160, 250,400,630
	Rated frequency (fr)		Hz	50~60
	Rated making capacity		A	10Ie (AC-4)
	Rated breaking capacity		A	8Ie (AC-4)
	Rated short time withstand current		A	10Ie
	Rated peak withstand current		A	25Ie
	Rated short circuit duration		s	4
	Power frequency withstand voltage	Between phases,phase to earth	kV	32	42
		Vacuum breaks	kV	32	42
	Lightening impulse withstand voltage		kV	60	75
Control circuit	Rated voltage1 (Us)		V	AC or DC. 110/220
	Rated power (Ps)	Electric holding	VA	≤1000/100 (absorbing/holding)
		Mechanical holding	VA	≤900/600 (closing/opening)
Auxiliary circuit	Form			3a+3b
	Rated value			AC380V/5A, DC380V/1A
Control circuit, auxiliary circuit to earth power frequency withstand voltage			kV	2
Rated operating frequency	Long-term or mechanical holding type		time/h	300
	Short-term		time/h	600
Mechanical endurance2			10000 times	100
Electrical endurance			10000 times	25(AC-3),10(AC-4)
Mechanical characteristics	Closing time		ms	≤200
	Original opening time		ms	≤160(electric holding); ≤60(mechanical holding)
	3-phase synchronism		ms	≤3
	Closing tripping		ms	≤10
Remark: 1.rated control voltage can be made according to customer’s requirements.
2.for mechanical holding type, the interlock mechanism should be changed every 300,000 times.
