OSG Taiwan Multi Usable Type Thread Rolling Die Plate/flate Dies

Name: OSG Taiwan Multi Usable Type Thread Rolling Die Plate/flate Dies
Brand: TOSG
SKU: 134222697
Availability: InStock

US$ 30 - 30 MOQ: 1 Set

Key Specifications

Place of Origin:

Taiwan, China

Brand Name:

TOSG

Model Number:

Taiho Tool Mfg. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

KAOHSIUNG

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Taiwan, China

Brand Name TOSG

Model Number DP

Shaping Mode Compression Mould

Product Material Other, SKD,D1,M2,M42

Product Other, thread rolling dies

Product Description

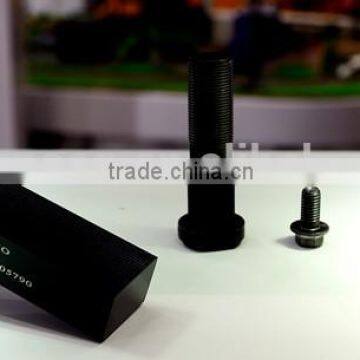

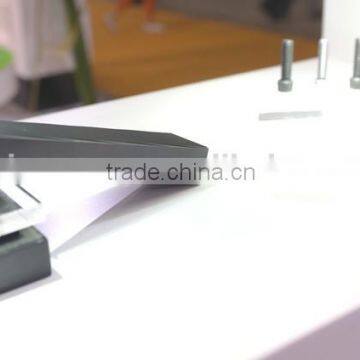

OSG Taiwan Multi Usable Type Thread Rolling Die Plate

(1) Product introduction

1.Feature	(1)Thread rolling die plates are widely used on general materials, and fit to different brands of thread rolling flat dies machines.
2.Application	(1)Best for irons, low carbon steels, or medium carbon steel, which hardness degrees under 28HRC.
3.Prodution range	(1)Metric, U series, and W series. (2)Dimension range : - Length : MAX950mm - Width : MAX120mm - Hight : MAX400mm - Thread pitch : MIN0.25mm
4.Dimention	With or without 5° holding angle. Dimensions indicated by customer.
5.Thread limit	H/6, H/7, & H/8
6. Material	Mold steel
7.Certification	ISO 9001 (Certified in Y2012)
8.Surface treatment	Nitride treatment
9.Lubrication	Non-water soluble and vegetable oil.
10.Machine	Thread rolling machines
11.Application industries	Fasteners industry

(2)Multi usable type thread rolling die plate series

Specification	Model
General use	D-DP
For material hardness under 28HRC	H-D-DP
For high tensile material	E-D-DP
For stainless steels	SUS-D-DP

(3) Information needed for inquiry

1	Hardness degrees of working material
2	Thread type & size
3	Thread rolling machine (If holding angle 5° needed)
4	Dimensions of the dies
5	Other special conditions
