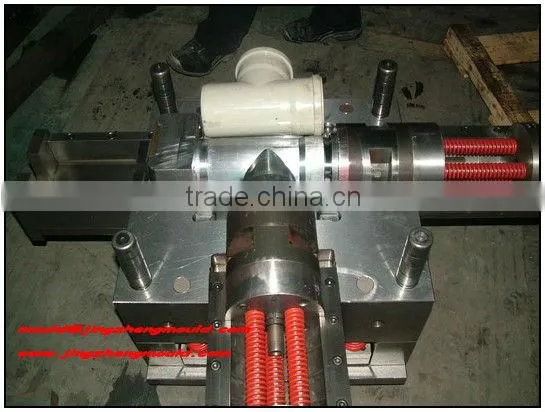

Pipe Fitting Mold

US$ 6,000 - 20,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

20-400mm

Zhejiang Taizhou Huangyan Jingzheng Mould Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name JZ

Model Number 20-400mm

Shaping Mode Plastic Injection Mould

Product Material Plastic

Product Other, Pipe Fitting Mould

Specifications

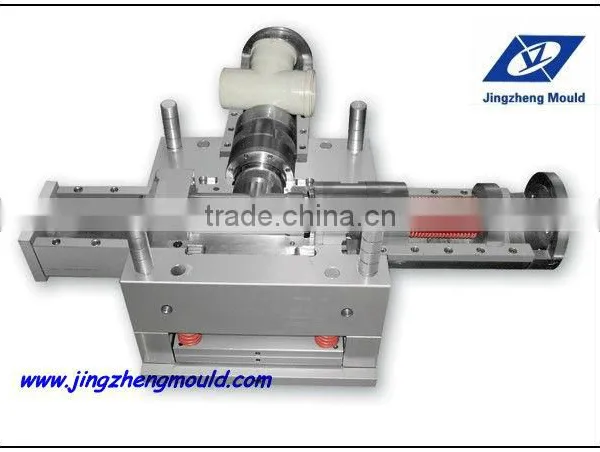

Tee wth size 160mm single cavity
Mould size:620*580*620mm
Mould Lift:1,200,000shots
Core pulling system:machinery
Good price

We are JINGZHENG Mould specialized in making plastic injection molding more than 17 years.

General Mold Specifications:

Name	PPR pipe fitting mold
Plastic material	PVC,PPR,PP.PE,ABS,POM,PPH…etc
Steel of Cavity & Core	DIN 1.2316/ DIN 1.2738/DIN 1.2344 /M300/ 718/ P20..etc
Steel of Mouldbase	S50C.LkM standard…etc
Nos of Cavity	Customized
Hardness of Cavity & Core	32-50HRC
Hardness of Wear Parts	55-60HRC
Core pulling system	Motor /oil cylinder/ stripping plate, angel pin…etc
Mould Accessories	DME/HASCO Standard …
Cooling system	In core baffle cooling and in cavity plate chain drilling type cooling
Surface finish	Diamond polish,
Molding life	500,000-1,200,000shots
Runner	Cold or Hot
Delivery time	35-75work days
Packing	wooden case

The process of making mould

Search	Buyer search the internet to find the seller and the seller try to find the buyer

Negotiation	Quality-Price-Mould material-Delivery time-Payment-Technique requests

Down payment	Usually 30% before we start working

R and D	We offer customers the drawings for products and mould structure

Confirmation	We send the drawings to customer to confirm

Machining center	CNC milling machine-NC wire cutting-NC-EDM and so on

Testing	Testing the mould to make sure everything is ok

Confirmation	We send the sample to customer to check

Balance	Buyer send us the balance of the mould before shipping

Delivery	We send the mould to our customer by sea or by air as the demand of customer
