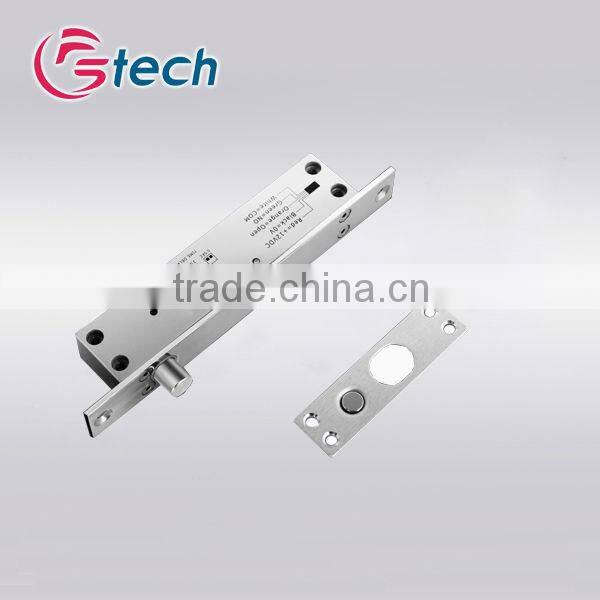

Fail Safe Bolt Lock With Less Consumption Double Bolt Door Lock

Drop bolt lock description:

1.Photoelectric control technology,prevent mechanical failure Ultra-low temperature design,safe&durabl

2.With Ultra-low powr consumption design,durable and environment-friendly

3.Mov provides reverse circuit protection,still unlock after magnet degaussing by force

4.With built-in itelligent single chip,three level current application

5.With 500000 times operation test

6.With Lock body of superior strength aluminum alloy,stainless steel bolt

7.With Full range of specification and suitable for various door installation

Drop bolt lock advantages:

1.Electric deadbolt lock security Type: fail safe

2.Dead Bolt Lock Size: 160* 28* wide thick 40 (mm)

3.Cylinder Size: 17mm diameter protruding length *13mm

4.Operating voltage: 12VDC +10% range

5.Starting current: 1200mA (start the moment)

6.Current:120mA (fully locked)

7.Cylinder strength: Hardened stainless steel solid lock core,under 1000kg pressure

8.Select door type: wooden doors, glass doors, metal doors, fire doors

9.Signal output: Door state signal output NO, NC, COM contacts

10.Lock body surface temperature: low temperature

11.Door magnetic induction distance: 8mm (only used reed all U.S. imports)

12.Use the ambient temperature: -10°C-55°C (14 ~ 131F)

13.Use environment humidity: 0 ~ 90% relative humidity

14. Electric locking and durable design: design professional magnetic materials, 50 million times durability

15. Drop bolt lock panel materials design: high-strength aluminum alloy, the surface of very fine wire drawing

Drop bolt lock wiring diagram:

Drop bolt lock installation:

Drop bolt lock solutions:

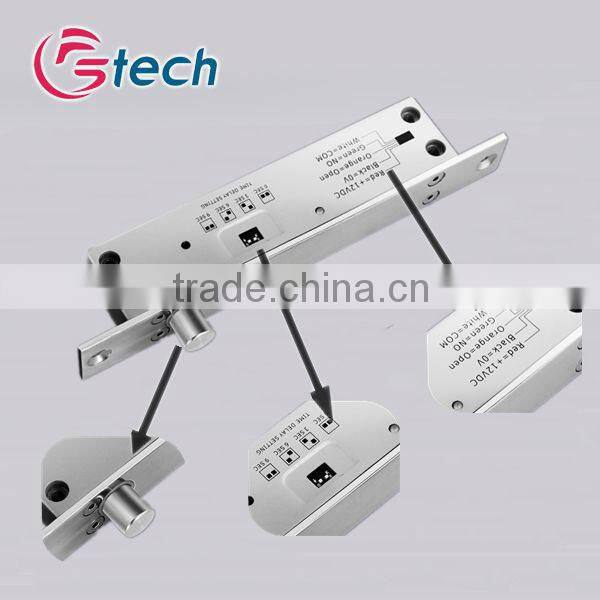

Drop bolt lock details:

Drop bolt lock packaging procedure:

Drop bolt lock factory picture:

Drop bolt lock application:

Customer and us:

Payment:

If the total amount is less than 500USD, we prefer to accept Paypal or Western Union. For big amount we accept bank transfer.

Shipment:

Normally we will use UPS, DHL, FEDEX or EMS express. It usually takes 3-7 working days depending on the countries deliver to.

We can also arrange other shipment way per your requirement and instruction, such as sea shipment, air shipment, etc.

Warranty:

Warranty for one year, maintenance forever, change within 3 months because of product quality.
