Specifications
1.Strong door lock2.CE,FCC,ROHS
3.500000 times life
4.Spurted plating
5.12 monthes warranty

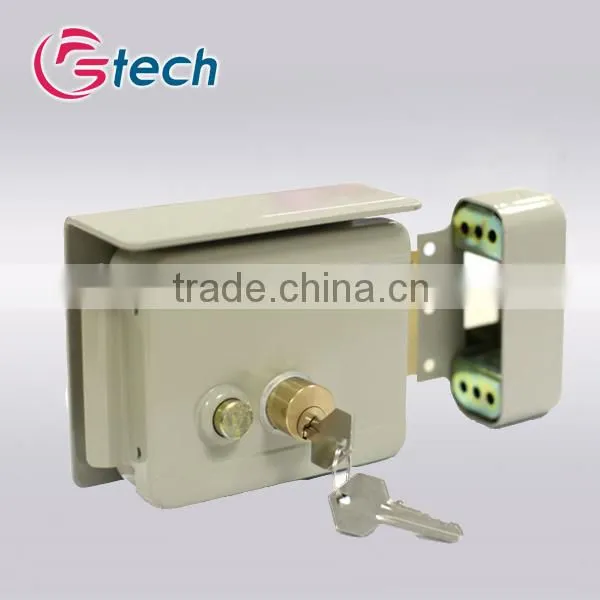

Strong door lock with access controller and power supply description:
Strong door lock supports electrical control or hand operation and has function of high security. With
adjustable locking pressure and changeable dead bolt. The dead bolt has anti-theft function and can
match easily with electric anti-theft door. Access control strong lock can be open by key or switch
or electric controller. It has features such as long service life, no static power consumption and safety, etc.
Strong door lock is locked by collision, which especially used for access control system and building
intercom system.
Strong door lock can be mounted in residential building, commercial offices, warehouses and schools.
Strong door lock with access controller and power supply Features:
Type |
EL22 |
Voltage of opening lock: |
9~15VDC/AC |
Current of opening lock: |
1.3A (only 1s is required) |
Sensitivity: |
1s |
Extension length of dead bolt: |
13mm |
Service life: |
500,000 times |
Locking method: |
by collision |
Dimension: |
154.5*106.5*42mm |
Surface Temp: |
≤+20°C |
Operating Temp: |
14-131F |
Suitable Humidity: |
0~90%(non-condensing). |
Gross weight |
2.0kg |
Latch bolt material: |
brass |

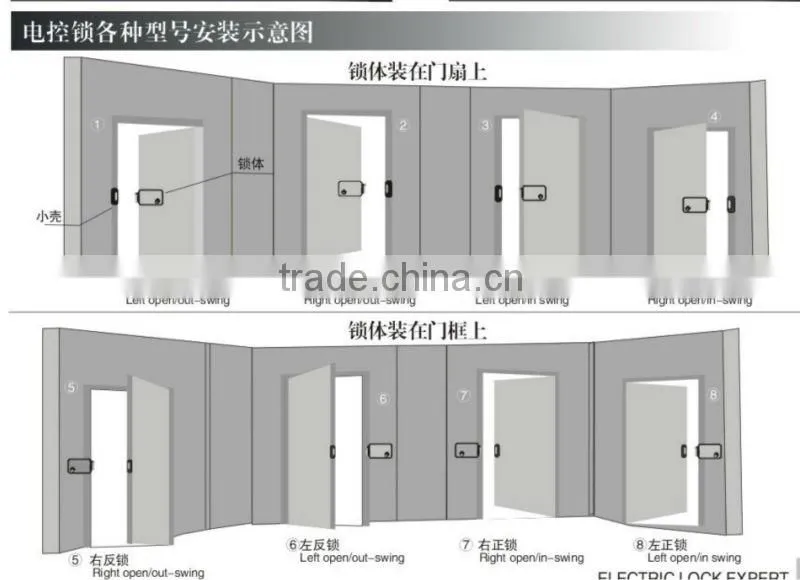

Strong door lock Installation:
Strong door lock Installation Warm Tips:
l Use the self-contained screws to install lock body
Cylinder and holder into the door edge or door frame.
Proposed 5mm: installation distance form lock body
to door holder.
l The loading spring is adjustable with the door’s weight
and door closer’s power. Adjust the hexagonal nut
by a pair of pliers if it locks in a big noise or cannot close.
l Dead bolts could change direction according to open type.
l Use a 9-15VDC voltage and power higher than 12W.
l Unlock continuous electrify time could not exceed 7 seconds
l For safety,pls use powdery lubricant for the cylinder,
e.g. pencil powder.
Company Introduction:
FStech International Trading (Shanghai) Co., Ltd is a manufacturer which has many years
experience in the production of electric lock products. Our mainly products have more than
100 models: magnetic lock series, electric bolt lock series, electric strike series, magnetic door
holder series, power supply series, exit button series, single door access control series, remote
controller series especially for access control, fire-fighting equipment and access control peripheral
accessories, etc.
Payment:
If the total amount is less than 500USD, we prefer to accept Paypal or Western Union.
For big amount we accept bank transfer.
Shipment:
Normally we will use UPS, DHL, FEDEX or EMS express. It usually takes 3-7 working
days depending on the countries deliver to.
We can also arrange other shipment way per your requirement and instruction, such as
sea shipment, air shipment, etc.
Warranty:
Warranty for one year, maintenance forever, change within 3 months because of product
quality.
