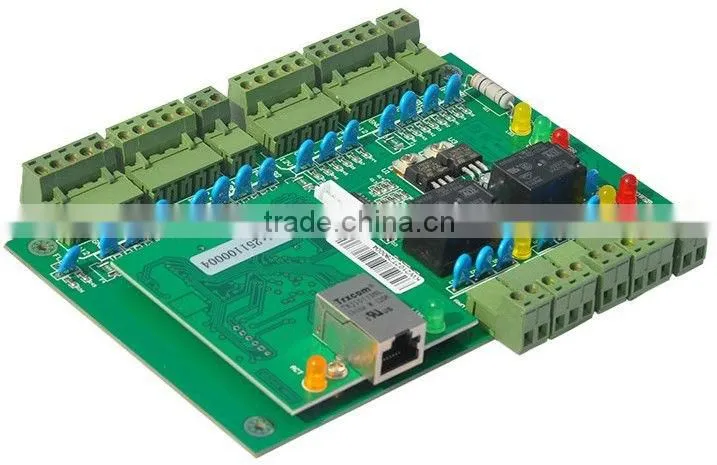

Two door access controller description:
1.Remote open
2.Peripherals control
3.Door open too long alarm
4.Door status monitoring map
5.Access events history query
6.Timing upload tasks to controllers
7.256 time zones & unlimited holidays
8.Doors interlock ( only one door could be opened at the same time )
9.Forced open alarm( input a durass code to launch the alarm in control center )
10.Card, password, card + password optional ( depends on the type of the reader )
11.Anti tail-after ( the access will be denied when you exit if you don't read the card when you enter)
12.First card in (all the other access could be granted during a period only after an appointed card being read )
13.Multi-card access ( the access could be granted only by a certain group of people read their own individual
card simultaneously )
Two door access controller advantages & features:
1.TCP and IP communication only
2.Card capacity: maximum 20,000 cardholders
3.Events storage capacity on controller:100,000
4.Control four doors by 2 readers(which means this door could be controlled by both in&out direction)
Access control series technical parameters:
Parameter |
One door access control system |
Two door access control system |
Four door access control system |
|||
Type No. |
ACN1 |
ACN1T |
ACN2 |
ACN2T |
ACN4 |
ACN4T |
Communication |
RS232/ RS485 |
TCP/IP |
RS232/ RS485 |
TCP/IP |
RS232/ RS485 |
TCP/IP |
Short description |
Dual directional control for one door |
Dual directional control for two doors |
Single directional control for four doors |
|||
Main board size |
160mm×106mm |
160mm×106mm |
218mm ×106mm |
|||

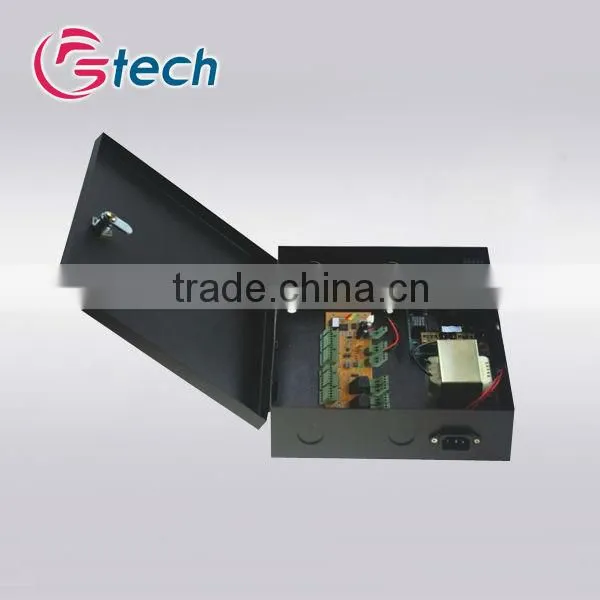

Control box size |
273mm×228mm×65mm |
|||||
Power supply |
12VDC 3A or 12VDC 5A |
|||||
Main board power consumption |
Less than100mA |
|||||
Input reader format |
Wiegand 26 (compatible with any reader under this standard, such as Motorola ,EM,,M1 oneetc. ) |
|||||
Readers input No. |
1×2 |
2×2 |
4×1 |
|||
NC/NO output No. |
1×2 |
2×2 |
4×1 |
|||
Door open delay |
From 1sec to 600secs |
|||||
Maximum capacity |
N×256 |
Unlimited |
N×256 |
Unlimited |
N×256 |
Unlimited |
Note: N stands for the Nos of COMs or RS485 HUB ports, ACC access control supports 256 COMs in one system |
||||||
Working temperature |
-40 to 70°C |
|||||
Working humidity |
10-90%RH, no condensation |
|||||
Card capacity |
20,000 privileges |
|||||
Storing capacity when offline |
100,000 |
|||||
Power failure Protection |
Flash memory |
|||||
Max distance from reader to main board |
100 meters, suggest not to exceed 80 meters |
|||||
Max distance from previous main board to next main board |
RS232: less than 13 meters, suggest not to exceed 3 meters |
|||||
Accessories |
Main board, main board cover, power supply and control box, cables, disk, 2 keys, cartoon |
|||||
Open too long alarm |
Yes |
Yes |
yes |
|||
Illegal invasion alarm |
Yes |
Yes |
yes |
|||
Force open alarm |
Yes |
Yes |
yes |
|||
Alarm activation auxiliary |
Software alarm only if no expander board connected, it will activate auxiliary equipments when expander board connected |
|||||
Manual setup NO or NC the door |
Yes |
Yes |
yes |
|||
Remote opening door |
Yes |
Yes |
yes |
|||
Interlocking doors |
Yes |
Yes |
||||
Anti tail-after/anti pass-back |
Yes |
Yes |
||||
Multi card open |
Yes |
Yes |
yes |
|||
Timing open or close |
Yes |
Yes |
yes |
|||
Monitoring map |
Yes |
Yes |
yes |
|||
Emergency open or close |
Yes |
Yes |
yes |
|||
First card in |
Yes |
Yes |
yes |
|||
Keypad password |
Yes |
Yes |
yes |
|||

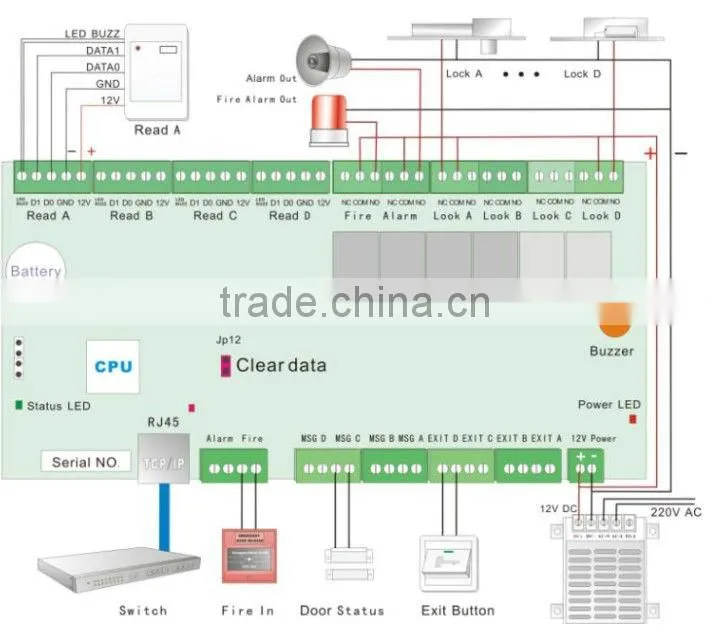

Two door access controller wiring diagram:

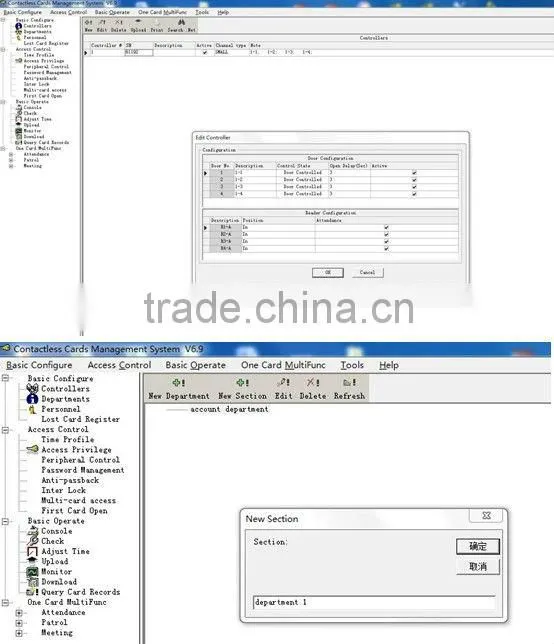

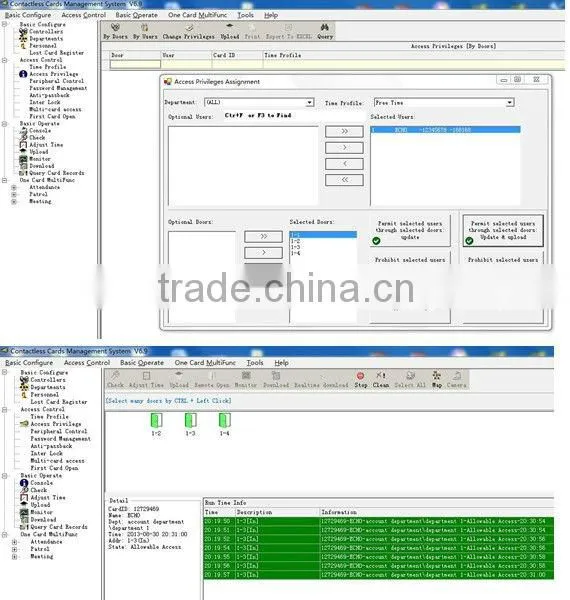

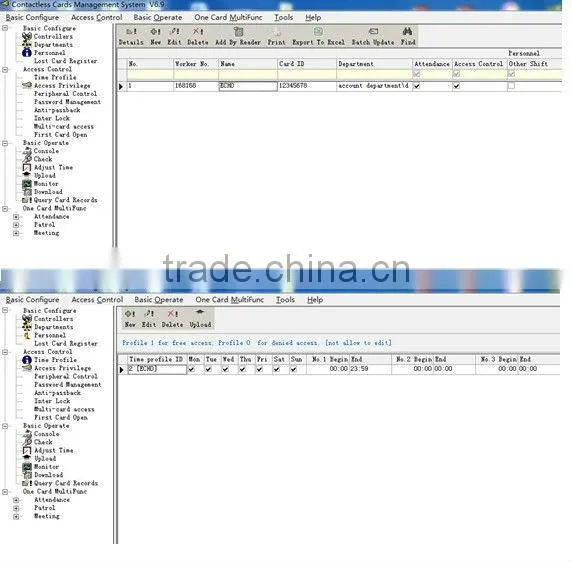

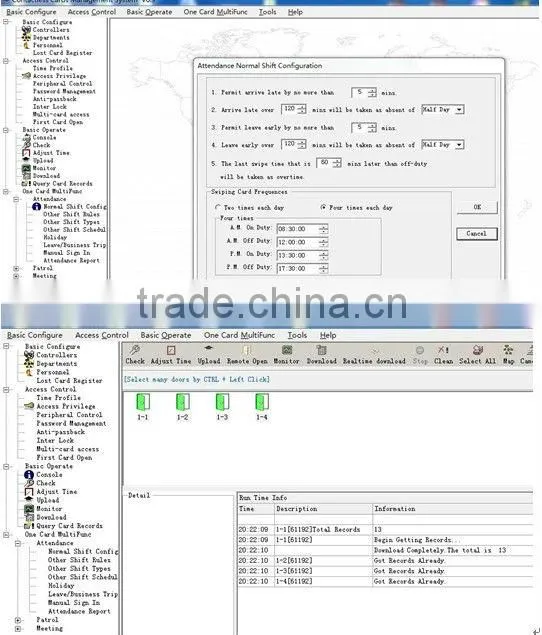

Access controller software:
Support RS485 and TCP/IP access controller at the same time. All of access controller is using
the same software management.

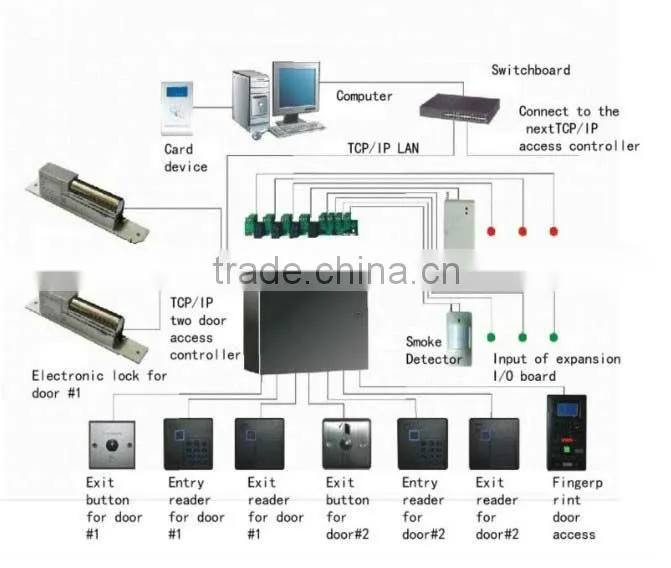

Two door access controller system :
