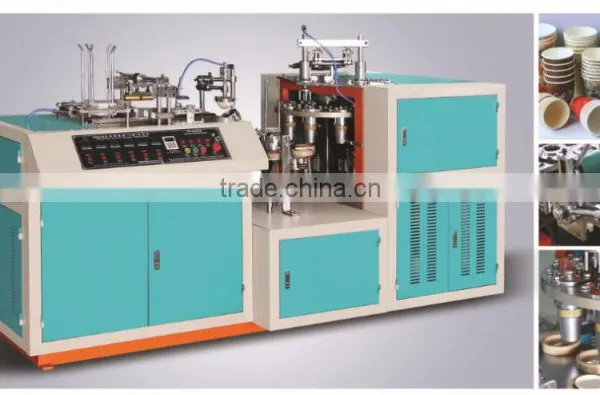

Help CenterSeries Automatic Single PE Paper Cup Machine and Nice Cup Forming Machine
Related Products
-
China No.1 Automatic Ultrasonic Double PE Paper Cup MachineNegotiableMOQ: 1 Set -
Paper Cup MachineNegotiableMOQ: 1 Set
-
High Speed Paper Cup Machine With Collecting MachineNegotiableMOQ: 1 Set
-
Automatic Single PE Paper Cup MachineNegotiableMOQ: 1 Set
-
ZBJ-H12 High Speed Paper Cup Machine With Collecting MachineNegotiableMOQ: 1 Set
|

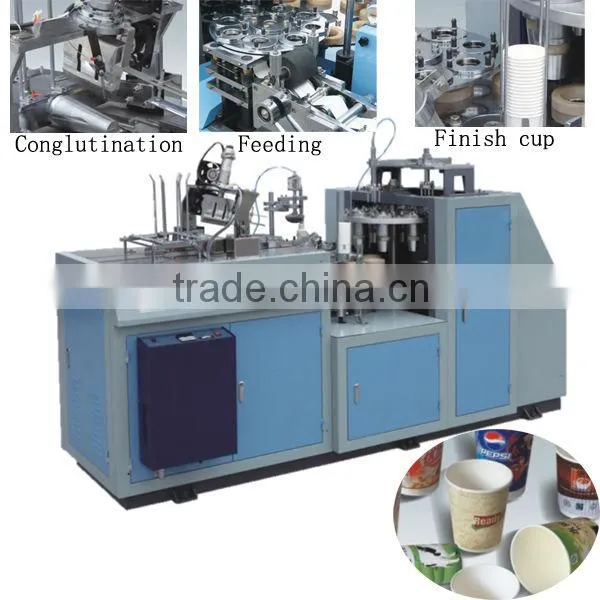

working principles / procedures: 1. Square paper pieces be printed(use offset printer)and cut(use die-cutting machine)in advance, becomes cup-fan-wall-papers to make cup body. 2. Paper sender delivers the cup-fan-wall-papers to molds, sealing the body . 3. The cup bottom paper (reel) automatic feed to the bottom cut parts,be cut into round pieces and sent to molds with the sealed cup body. 4. Pre heating the cup bottom,bottom heating,curlinging the top edge . 5. Sealing the bottom with body. 6. Knurling the cup bottom. 7. Discharging finished cups automatically from molds. Sending to collector and be collected and piled and counted automatically. Technical Specification:
For comparison statement with competitors 1) gear box is 125 type, which has three year warranty. other company using 100 type which easy have problem in one year. for the two type of gear box, pls find at attachments. 2) speed reducer: 1:30 100 type, other company use 1:20 80 type. 3)Some bearing import from out of china. JAPAN: NTN , NSK GERMANY: FAG ITALY: SKF Contractor:CHINT brand (The biggest electric parts supplier in china) it is a public company 5) Ultrasonic: EVER GREEN 6) Inside of the machine, using big size of chains 7).AC DRIVE- company make & capacity: EURA ( Brand) 220V almost never have problem when we are using 8)2800*1300*1700mm machine size, which is big and much stability 9). Machine Physical weight (before packing) 1.7ton Each set machine goes together with a set of free accessories. Each machine has one year warranty.
| ||||||||||||||||||||||
