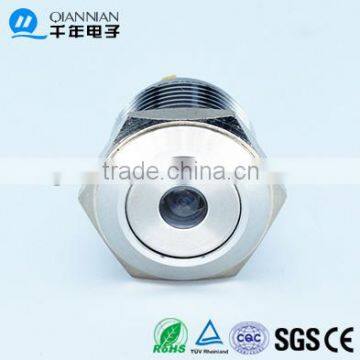

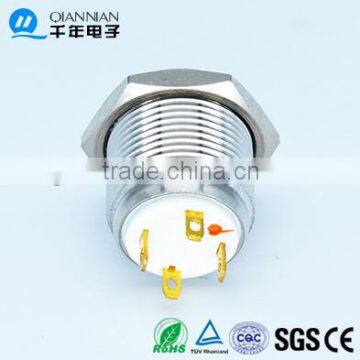

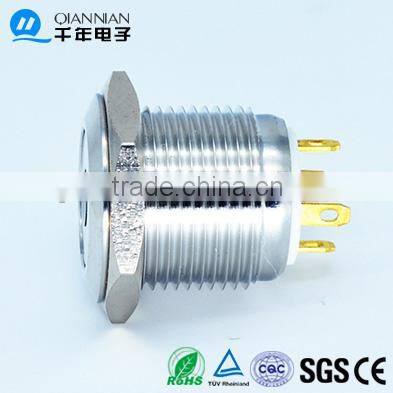

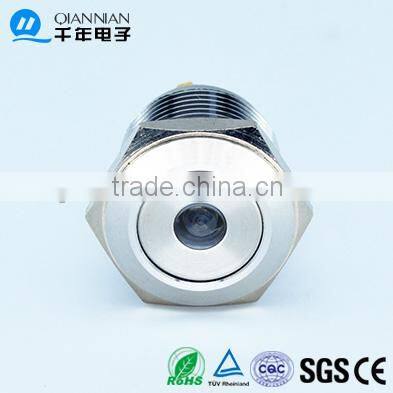

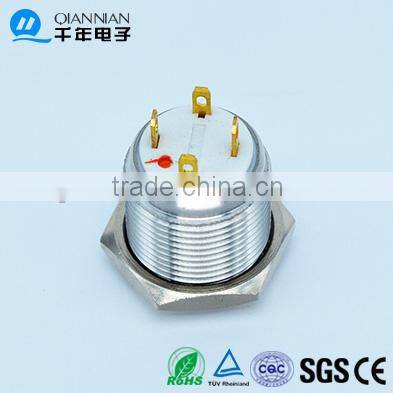

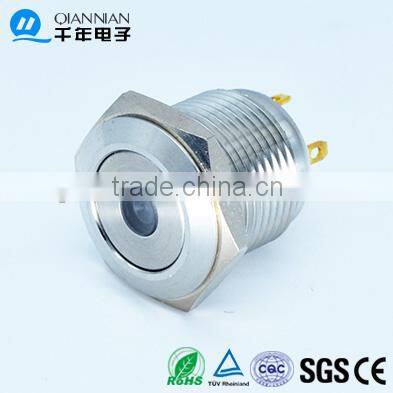

title:QN16-D6 16mm Dot Type Momentary Flat Head Pin terminal Waterproof metal push button switch
They are widely used in household appliances, electric force,telecommunications,machine tool,vessel,textile,printing,Mining machine,Mustic Instrument, etc.
| Product brand | QIANNIAN | |
| Product name | Button switch | |
| Product model | QN16-D6 | |
| Product information | Mounting hole | 16mm |
| Operation types | Momentary | |
| Head shape | Flat Head, Pin terminal, Dot Type | |
| Enclosure material | Nickel plated brass/Stainless Steel | |
| Degree of protection | IP65 IK08 | |
| Contact parameters | Switch rating | 2A/36VDC |
| Contact configuration | 1NO | |
| Contact | Silver alloy,Pin terminal | |
| Color/voltage | Optional color | R O Y G B W |
| Optional voltage | 6V 12V 24V 110V 220V | |
| Other parameters | Mechanical life | 50,000cyles |
| Electrical life | 50,000cyles | |
| LED life | 40,000hour | |
| Terminal Type | Pin Terminal(2.0X0.5) | |
| Contact resistance | ≤50mΩ | |
| Insylation resistance | ≥1000mΩ | |
| Dielectric Strength | 2000VAC | |
| Operation Temperature | -20℃~+55℃ | |
| Panel thickness | 1~10mm | |
| nut torque | 5~14Nm | |
| Opration pressure | About2.5~4N | |
| Operation stroke | About2.8mm | |
| Base | PA66 | |
| Packages | 50PCS/BOX | |
| Website | http://qndz.en.china.cn | |
| Official website | ||
| Product size | |
|
|
|
|
|
|
1.Appearance material Brass Nickel Plated Stainless Steel Plating Color |
|
2.Electric material Copper plating and silver contact, better conductivity. |
|
3.Installation accessories Waterproof ring protection Hexagonal nut fixed IP Waterproof |
|
4.Connection mode Welding terminal Wiring connector |
|
5.Waterproof properties Waterproof test, Excellent waterproof |
