QN16-D4 16MM tact switch WITH LED
- 100000 Piece / Pieces per Month
- Side press sinking board switch, game controller, light touch switch, handle button 3 * 4 * 3.5, side press smiling face switch
- Original C&K genuine PTS647SK38SMTR2 LFS 4.5x4.5x3.8-250GF SMT switch
- Original C&K genuine PTS645SK43SMTR92 LFS 6X6X4.3H 260GF SMT switch
- Original C&K genuine PTS641TK25SMTR2LFS 6.2x6.2x2.5 five pin 250GF SMT switch
- USB3.0 two-way switch usb converter
- GO SWITCH switch
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | QN | Model Number: | QN16-D4 |
Protection Level: | 67 | Max. Current: | 3a | Max. Voltage: | 250v |
Product Description

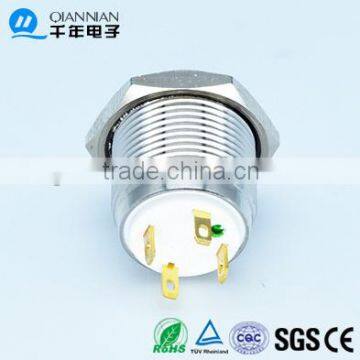

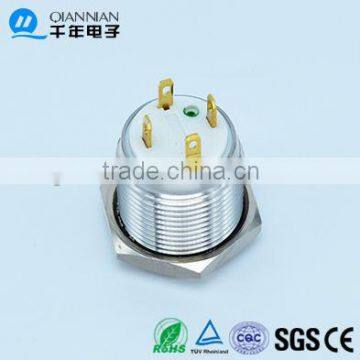

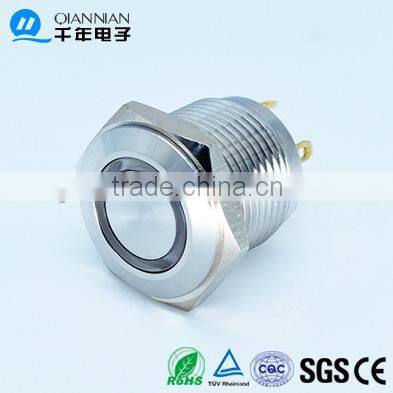

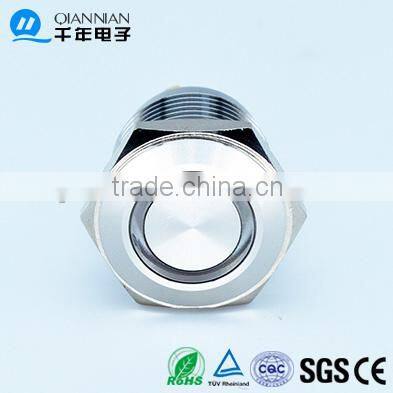

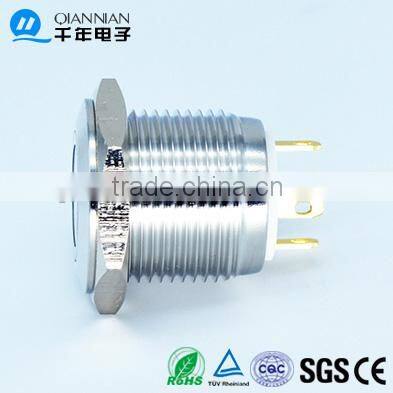

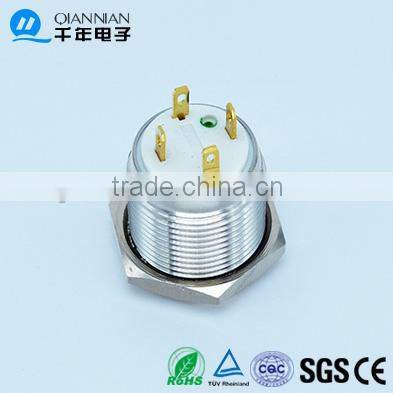

title:QN16-D4 16mm Ring Type Momentary Flat Head Pin terminal Waterproof metal push button switch
They are widely used in household appliances, electric force,telecommunications,machine tool,vessel,textile,printing,Mining machine,Mustic Instrument, etc.
Product brand | QIANNIAN | |
Product name | Button switch | |
Product model | QN16-D4 | |
Product information | Mounting hole | 16mm |
Operation types | Momentary | |
Head shape | Flat Head, Pin terminal, Ring Type | |
Enclosure material | Nickel plated brass/Stainless Steel | |
Degree of protection | IP65 IK08 | |
Contact parameters | Switch rating | 2A/36VDC |
Contact configuration | 1NO | |
Contact | Silver alloy,Pin terminal | |
Color/voltage | Optional color | R O Y G B W |
Optional voltage | 6V 12V 24V 110V 220V | |
Other parameters | Mechanical life | 50,000cyles |
Electrical life | 50,000cyles | |
LED life | 40,000hour | |
Terminal Type | Pin Terminal(2.0X0.5) | |
Contact resistance | ≤50mΩ | |
Insylation resistance | ≥1000mΩ | |
Dielectric Strength | 2000VAC | |
Operation Temperature | -20℃~+55℃ | |
Panel thickness | 1~10mm | |
nut torque | 5~14Nm | |
Opration pressure | About2.5~4N | |
Operation stroke | About2.8mm | |
Base | PA66 | |
Packages | 50PCS/BOX | |
Website | http://qndz.en.china.cn | |
Official website | ||
Product size |
1.Appearance material Brass Nickel Plated Stainless Steel Plating Color |
2.Electric material Copper plating and silver contact, better conductivity. |
3.Installation accessories Waterproof ring protection Hexagonal nut fixed IP Waterproof |
4.Connection mode Welding terminal Wiring connector |
5.Waterproof properties Waterproof test, Excellent waterproof |
Yueqing Qian Nian Electronic Co.,Ltd was founded in 2001,a technology company which is
specialized in designing and manufacturing varies types of push button switch,our company is committed
to well-known brands of companies both at home and abroad to provide first-class products and enterprises
supporting services .Company currently employs more than 160 people ,including R&D personnel and mold
production staff more than 30 people.Leading products are :Metal waterproof push button switch , metal
waterproof pilot lamp ,anti-blast switch ,and accessories.Our product are widely used in various types of
console, control box(cabinet),distribution box (cabinet),instrumentation box(cabinet),electrical apparatus,
and other industrial automation device etc.
1.Car modification | 2.Battery car modification | 3.Computer modified |
4.Car modification | 5.Battery car modification | 6.Computer modified |
1.Free sample
2.DHL,UPS,TNT,Fedex,Aramex and forwarder are accept
3.Produce and purchase all connector to satify your request
4.Accept T/T in advance, Paypal, Western Union and Escrow
5.Most product not have MOQ,orders for just one piece are welcome
6.Actual drawing,picture and part No. will assist to get a competitive price soon
7.The stock goods will be delivered within 3days,and the customized goods will be delivered within 7days
Why choose us?
Good quality, competitive price, fast delivery .
If you have any questions,please contact with us!
1.Provide free samples
2.Accept ODM/OEM
3.We can do CO, Form E F ect.
4.Terms of trade:EXW,FOB,CIF,CPT ect.
