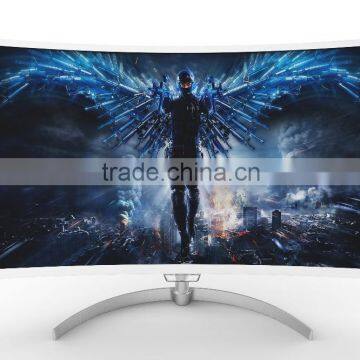

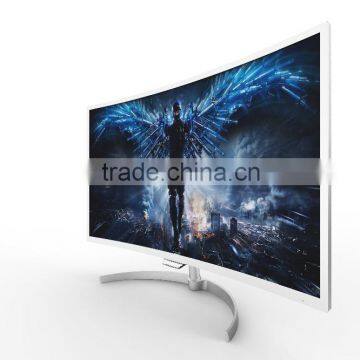

1800R 32 Inch LED MONITOR

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Used

Application:

Desktop

Screen Size:

Other, 32"

Shenzhen KTC Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN Harbor

Delivery Detail:

Delivery time depends on order quantity.

Products Status Used

Application Desktop

Screen Size Other, 32"

Response Time 12ms

Brightness 300cd/m

Interface Type D-Sub, DVI, HDMI

Contrast Ratio 3000:1

Resolution 1920 x 1080

Widescreen Yes

Panel Type Other, VA

Pixel Pitch 0.36375

Brand Name OEM

Model Number W3207R

Place of Origin Guangdong, China

Panel specifications
Panel Supplier	Samsung
Panel Model	LSM315HP02
Size	31.5" diagonal
Panel	FHD VA
Display scale	16:9
Backlight	ELED edge Type
Maximum resolution	1920×1080
Best working resolution	1920×1080@60Hz
Pixel Pitch	0.36375mm×0.36375mm
Active Area	698.4mm×392.85mm
Viewing angle	H:178º,V:178º(CR>10)
Center Luminance of White	Min.:250cd/m²;Typ:300cd/m²
Contrast ratio	Typ:3000:1
Response time	TBD
Display Colors	16.7 M
Color Gamut(NTSC)	72%
Interface configuration
Solutions		RTD2775
Input Interface	VGA	1
	DVI-D	1
	HDMI	1
Output Interface	Earphone	1
Structure size
Base	model(optional)	BCEG-32
	Rotate	Nonsupport
	Elevation adjustment	Support
Size: L×W×T	product size(without base)	72042579mm
	product size(with base)	720508182mm
	Packing size	805155520mm
Weight	with BCEG-32:net weight 5.9Kg,gross weight:7.2Kg
Wall hanging size	Nonsupport
Power management
Power input	DC 12V/3.5A
Working consumption	≤40W
Standby consumption	≤0.5W
Audio power	Nonsupport
Special Functions
Flicker free	Support
Low blue light	Support
Safety&Certification
Safety	Withstand voltage strength	3000V/60s
	Leakage current	≤3.5mA@264V
	Earthing protective resistance	<100mΩ
Authentication	CCC,CE(Refer to the actual requirements of the customer)
Environment	Working condition	Temperature:5℃~40℃ humidity:10%~85% atmosphere:86KPa~104KPa
	Storage condition	Temperature:-20℃~55℃ humidity:5%~95% atmosphere:86kPa~104kPa
Accessory
LED Monitor	1PCS
Base	1PCS(Optional)
Instructions	1PCS
Data Cable	1PCS (HDMI Cable)
Power cord	1PCS
