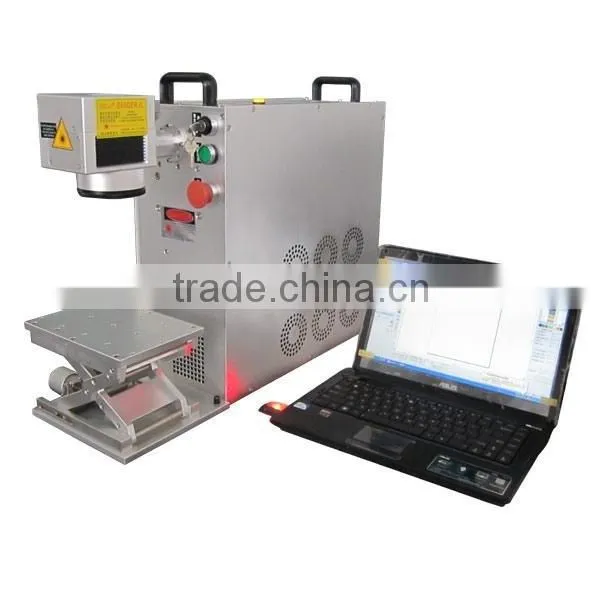

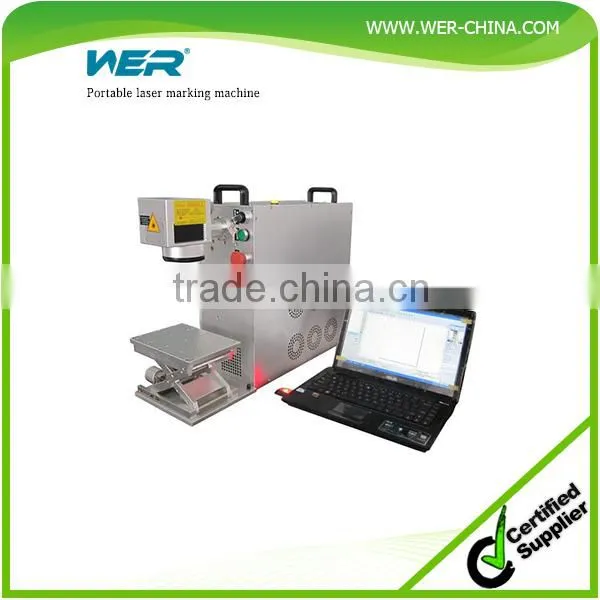

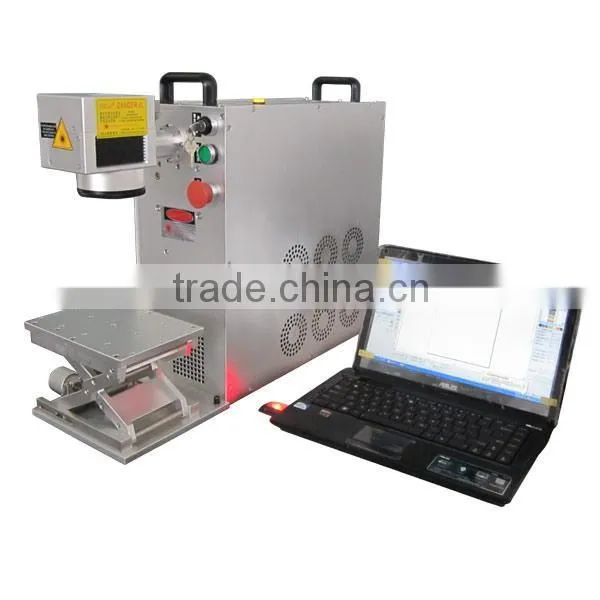

Popular sign equipment WER Portable laser marking machine
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Application Field:
Low consumables, non-toxic and no pollution, suitable for coding the non-metal materials, such as paper, plastic, thin film, tinfoil, timber, glass, PVC, ABS, IC and so on; applied to a variety of industries, like food, beverage, medicine, tobacco, leather, package, building materials, cosmetic and electron component, Etc. Be used with our company homemade assembly line working stage or existing assembly line directly.
Applications:
Materials: Most of Non-metallic materials such as ceramics, PVC, ABS, acrylic, plastic, bamboo, organic materials, epoxide resin, glass, wood, and paper, etc.
Field: Woodworks, craft gifts, electronic components, clothes, leather products, paper, medicines, food and package, etc.
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Technical Parameters
Model Type |
WER-510PL |
WER-530PL |
WER-560PL |
WER-5100PL |
Max. laser power |
10W |
30W |
60W |
100W |
Laser wave-length |
10.64u m |
10.64u m |
10.64u m |
10.64u m |
Laser repetition frequency |
≤50KHZ |
≤50KHZ |
≤50KHZ |
≤50KHZ |
Marking area |
110*110mm |
110*110mm |
110 *110mm |
110 *110mm |
Linear speed |
8000mm/s |
8000mm/s |
8000mm/s |
8000mm/s |
Marking depth |
≤3mm |
≤5mm |
≤7mm |
≤10mm |
Min. line width |
0.05mm |
0.1mm |
0.15mm |
0.15mm |
Min. character size |
0.40mm |
0.40mm |
0.40mm |
0.40mm |
Repetition accuracy |
±0.01mm |
±0.01mm |
±0.01mm |
±0.01mm |
Cooling mode |
Air cooling |
Air cooling |
Water cooling |
Water cooling |
Total power consumed |
500W |
1.2KW |
≤2KW |
≤4KW |
Power supply |
220V/50HZ/3.5A |
220V/50HZ/6A |
220V/50HZ/10A |
220V/50HZ/20A |
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Advantages:
1. All set imported metal sealed laser system, easy to install and operation.
2. High precision, high speed, marking clear, strong permanent
3. Low power consumption, cost effective and long life, convenient to maintenance.
4. Integrated and compact structure
5. Imported metal tube, stable and long life
6. Versatile marking software is compatible with Coreldraw, AutoCAD, Photoshop
7. Support PLT, DXF, BMP, PCX, JPG, common vector and bitmap graphics, date marking supporting, serial number, bar code, 2D code, incrementing serial No., automatic jump codes, Etc.
8. Excellent for long-lasting operation
9. No pollution and consumption
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
