2.5 m Drop-on-demand Inkjet Printer for Banner, Flex, Etc.; WER-S2508

Name: 2.5 m Drop-on-demand Inkjet Printer for Banner, Flex, Etc.; WER-S2508
Brand: WER, WER
SKU: 134166821
Availability: InStock

Shanghai WER-China Industry Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Plate Type:

Other, solvent printer

Place of Origin:

Shanghai, China

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, solvent printer

Place of Origin Shanghai, China

Brand Name WER, WER

Model Number S2508

Usage Other, outdoor ads printer

Automatic Grade Automatic

Voltage 220V(±10%)>15A

Gross Power 2500 W

Dimensions(L*W*H) 3.9 m * 0.77 m * 1.55 m

Weight 500 KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

2.5 m drop-on-demand inkjet printer
Speed: 104 m2/h at 2 pass
Resolution: 1440 DPI
Pack/M: 3.9 * 0.77 * 1.55
CE approved

2.5 m drop-on-demand inkjet printer

Print Technology	Drop-On-Demand Piezo Electric (Seiko/Spt510-35pl)
Print Head	8 Heads (Seiko/Spt510-35pl)
Print Width	2.5 m width
Resolution	1440 dpi max
Speed	2 Pass 104 m2/h
	3 Pass 76 m2/h
	4 Pass 52 m2/h
	6 Pass 38 m2/h
Locating Mode	Servo Driver/Servo Motor
Media Width	2.6 m
Color	C M Y K
Ink Type	Special ink for Seiko/Spt510-35PL
Ink	Solvent based Pigment Ink, at least two years outdoor life
Ink delivery system	Negative pressure ink supply system, main ink case 1L/color
Media Handle	Roll to Roll
Media feeding &take-up system	Infra Red Optical Controlling System for Media Feeding & Take-up

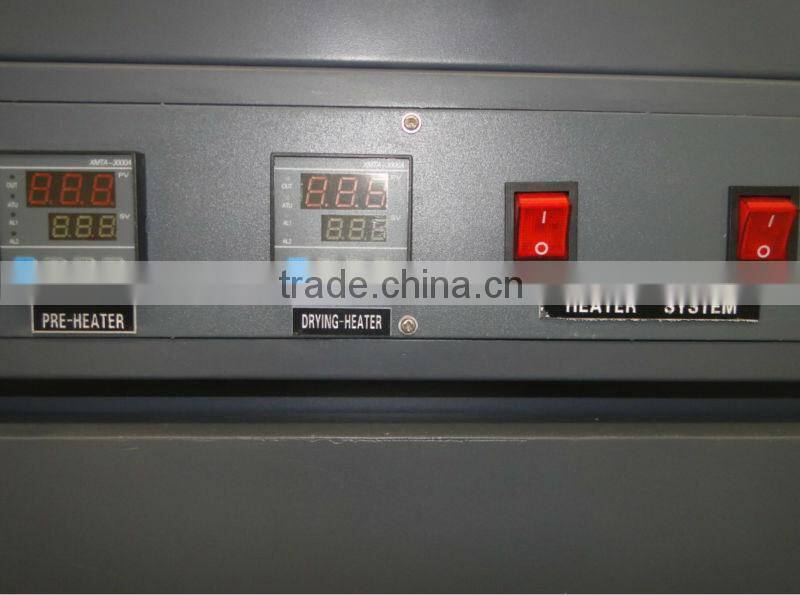

Dry system	Pre/Post and Middle heater controlled by PID
Media Type	PVC Vinyl, Flex banner, Carpet Paper, PVC Mesh Fabric, Perforated Vinyl, Cloth Banner Etc.
Motor	Fuji AC Servo Motor
Linear Rail	HIWIN
Height of Print-head	2 mm - 4 mm above media, adjustable
Print head maintenance facility	Protection trays for auto purge, daily maintenance and print heads over night
Auto-cleaning system	Double functional cleaning System of Pressure purge and Vacuum Suction
Interface	USB 2.0
Print Mode	Bidirectional Printing
File Format	TIFF, JPEG, Postscript 3, EPS, PDFRGB/ CMYK
RIP Software	Original Maintop/ Photoprint Rip software
Working Process	Maintop software, Photoprint software for Windows 98 and Windows XP
Power Supply	50HZ/60HZ, 220V(±10%)>15A
Filtration Facility	PALL filter + Regular ink filter
Operation Environment	Temperature: 23~29; Humidity: 50%~80%
