Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > 3.2m Flex Banner Printer WER-S3208

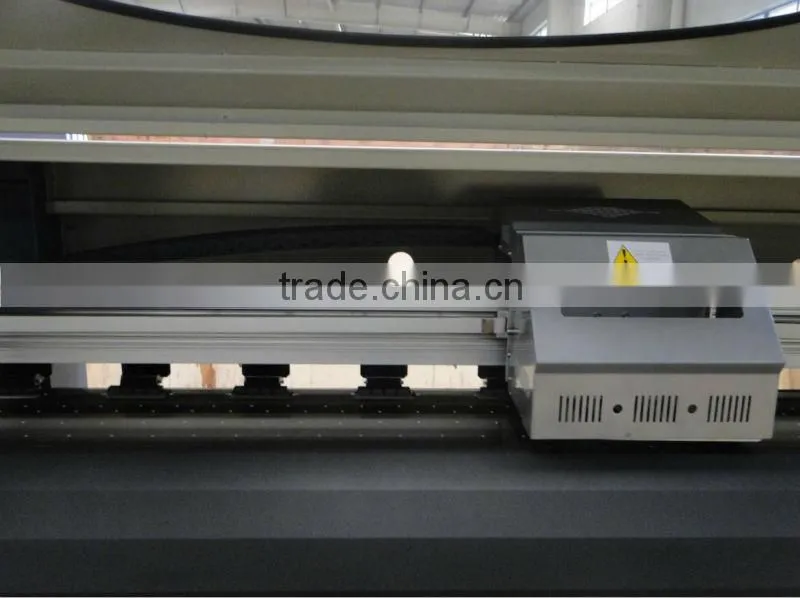

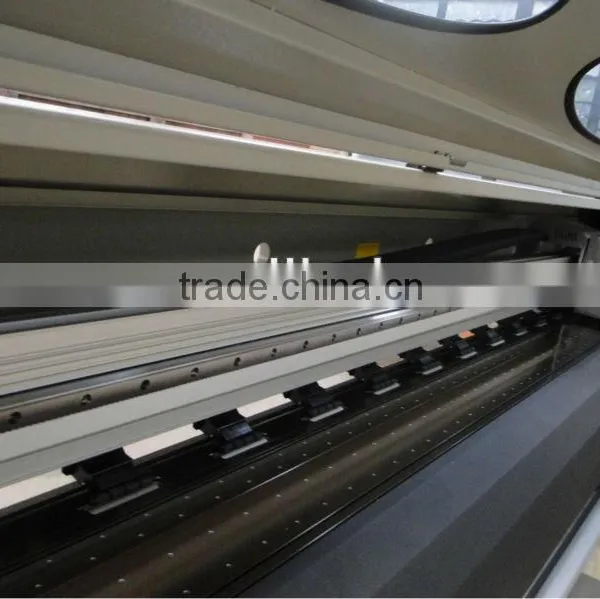

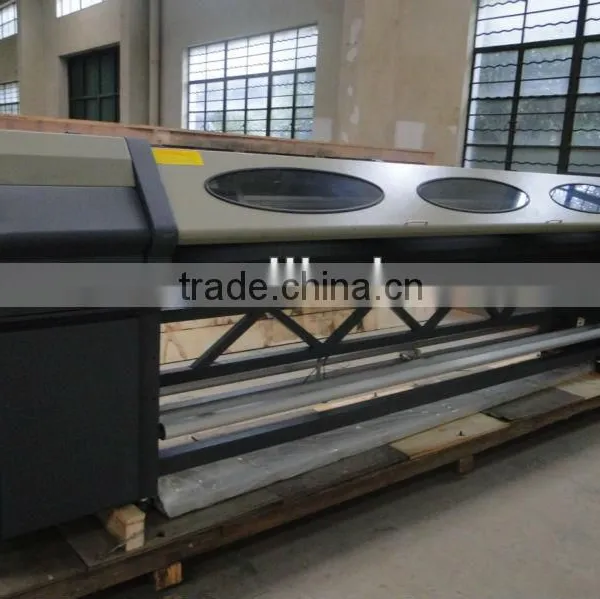

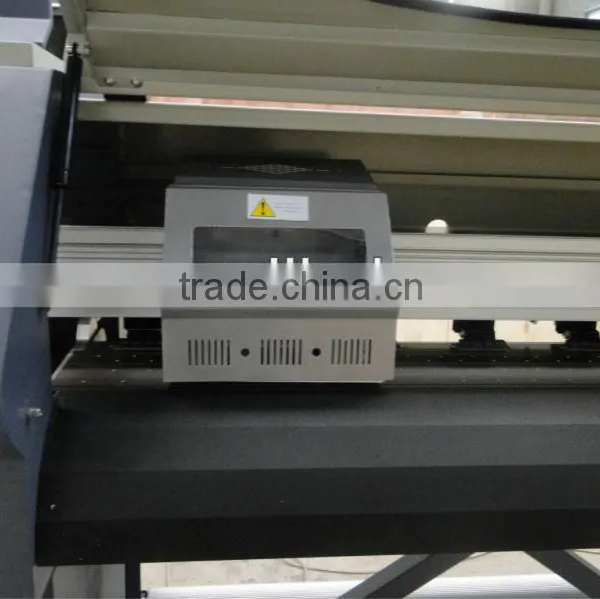

3.2m Flex Banner Printer WER-S3208

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Plate Type:

Other, Solvent Printer

Place of Origin:

Shanghai, China

Shanghai WER-China Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, Solvent Printer

Place of Origin Shanghai, China

Brand Name WER

Model Number WER-S3208

Usage Other, Outdoor Banner Printer

Automatic Grade Automatic

Voltage 220 V ( ± 10 % ) > 15 A

Gross Power 2500 W

Dimensions(L*W*H) 4.72 M * 0.77 M * 1.55 M

Weight 600 KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

3.2m flex banner printer
8 Seiko Spt510 35pl head
Pack/ M: 4.72 * 0.77 * 1.55
Delivery: 7 workday
CE approved

3.2m flex banner printer WER-S3208

Print Technology	Drop on demand Piezo printing technology
Print Head	8 Heads (Seiko/ Spt510 - 35pl)
Print Width	3.2 m width
Resolution	1440 dpi Max
Print Speed	2 Pass 108 m2/h
	3 Pass 80 m2/h
	4 Pass 54 m2/h
	6 Pass 40 m2/h
Locating Mode	Servo Driver/ Servo Motor
Media Width	3.3 m
Color	C M Y K
Ink Type	Special ink for Seiko/ Spt510 - 35pl
Ink	Solvent based Pigment Ink, at least two years outdoor durability
Ink delivery system	Negative pressure ink supply system, main ink case 1L/ color
Media Handle	Roll to Roll

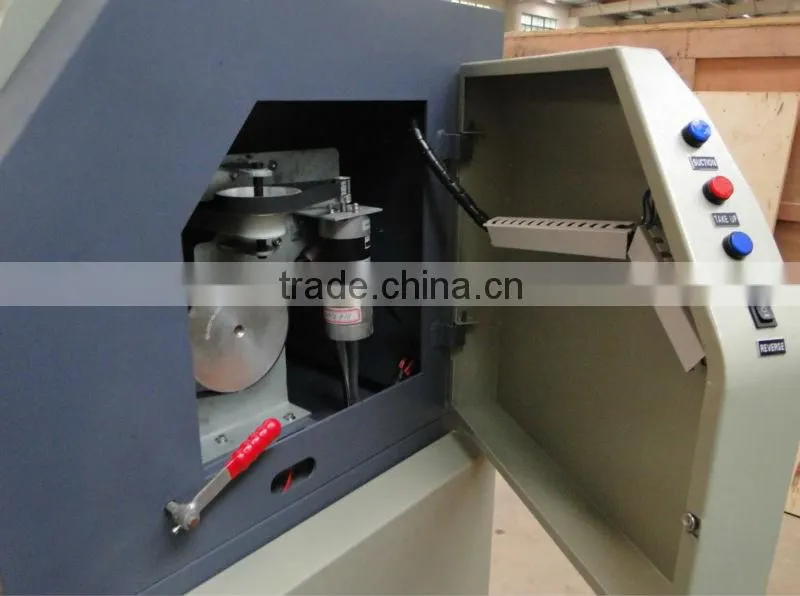

Media feeding & take-up system	Infra Red Optical Controlling System for Media Feeding & Take-up

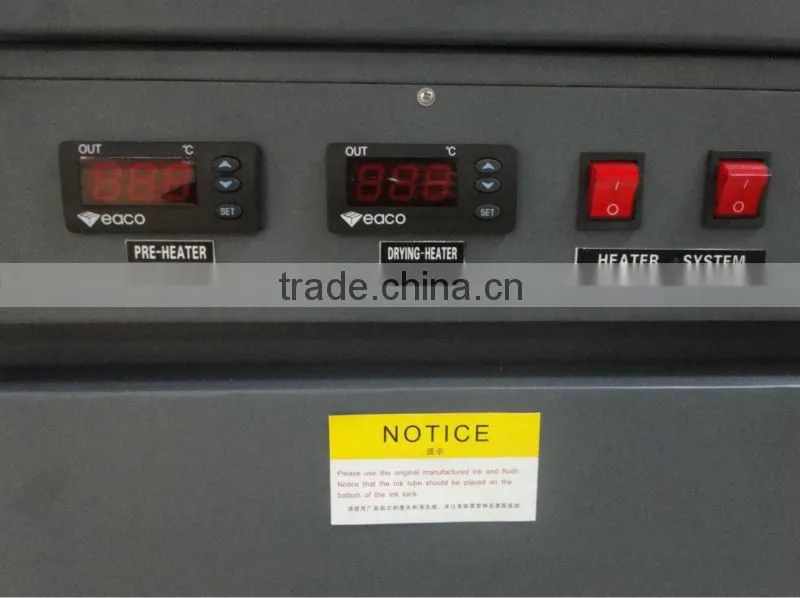

Dry system	Pre/ Post and Middle heater controlled by PID
Media Type	PVC Vinyl, Flex banner, Carpet Paper, PVC Mesh Fabric, Perforated Vinyl, Cloth Banner, etc.
Motor	Fuji AC Servo Motor
Linear Rail	HIWIN
Height of Print-head	2 mm - 4 mm above media, adjustable
Print head maintenance facility	Protection trays for auto purge, daily maintenance and print heads over night
Auto-cleaning system	Double functional cleaning System of Pressure purge and vacuum Suction
Interface	USB 2.0
Print Mode	Bidirectional Printing
File Format	TIF, JPEG, Postscript 3, EPS, PDFRGB/ CMYK
RIP Software	Original Maintop/ Photoprint Rip software
Working Process	Maintop software, Photoprint software for Windows 98 and Windows XP, etc.
Power Supply	50 HZ/ 60 HZ, 220 V ( ± 10 % ) > 15 A
Filtration Facility	PALL filter + Regular ink filter
Operation Environment	Temperature: 23% ~ 29%; Humidity: 50% ~ 80%
