Specifications
solvent flatbed inkjet printer4 PCS SPT510/35PL head
Pack: 3.9 * 0.77 * 1.55
7 workday delivery time
CE approved

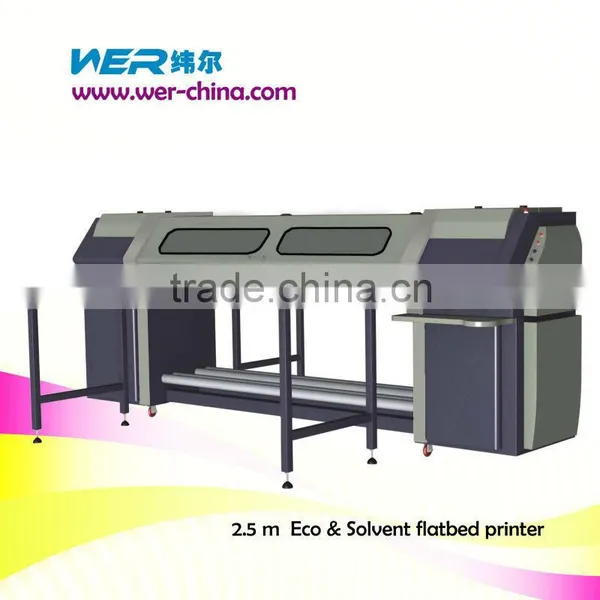

solvent flatbed inkjet printer WER-S2504FB is able to print on roll to roll solvent based material & some rigid materials like PVC foam board, ABS board, acrylic, etc.
Print Technology |
Drop-On-Demand Piezo Electric |
Print Head |
4 PCS Seiko/Spt510-35pl |
Print Width |
2.5 m width |
Resolution |
1440 dpi Max |
Printing Speed |
2 Pass 52 m2/h |
3 Pass 38 m2/h | |
4 Pass 26 m2/h | |
6 Pass 19 m2/h | |
Locating Mode |
Servo Driver/ Servo Motor |
Media Width |
2.6 m |
Color |
C M Y K |
Ink Type |
Solvent ink for Seiko/Spt510-35pl |
Ink |
Solvent based Pigment Ink, at least two years outdoor durability |
Ink delivery system |
Positive pressure ink supply system, main ink case 1L/color |
Media Handle |
Roll to Roll & Sheet to Sheet handling |
Media feeding &take-up system |
Infra Red Optical Controlling System for Media Feeding & Take-up |
Dry system |
Pre/Post and Middle heater controlled by PID |
Media Type |
Acrylic, PVC foam board, Wood board, Wall paper, KT board, Mesh, PVC vinyl & Flex banner Etc |
Motor |
Fuji AC Servo Motor |
Linear Rail |
HIWIN |
Height of Print-head |
2 mm - 4 mm above media, adjustable |
Print head maintenance facility |
Protection trays for auto purge, daily maintenance and print heads over night |
Auto-cleaning system |
Double functional cleaning System of Pressure purge and Vacuum Suction |
Interface |
USB 2.0 |
Print Mode |
Bidirectional Printing |
File Format |
TIFF,JPEG, Postscript 3, EPS, PDFRGB/ CMYK |
RIP |
Original Maintop/ Photoprint Rip software |
Working Process |
Photoprint software for Windows 2000 and Windows XP Etc. |
Power Supply |
50HZ/60HZ, 220V (±10%)>15A |
Filtration Facility |
PALL filter + Regular ink filter |
Operation Environment |
Temperature: 23°C ~ 29°C; Humidity: 50 % ~ 80 % |
