Help Center2.5 m 6 PCS Print Head 1440 DPI Piezoelectric Digital Flatbed Printer; Flex, Banner, Sticker, Vinyl, Etc.
Related Products
-
Flatbed Solvent Printer (2.0m * 6 PCS Seiko/SPT510-35pl)NegotiableMOQ: 1 Set -
2 M Wide 4 Pcs Seiko510 35pl Print Head Outdoor Piezoelectric Inket Flatbed PlotterNegotiableMOQ: 1 Set
-
2.0 M Outdoor Poster Printer WER-S2006NegotiableMOQ: 1 Set
-
2.5 m Digital Solvent Printing Machine for Outdoor AdvertisingNegotiableMOQ: 1 Set
-
2.5 m Outdoor Banner Printing Machine WER-S2508NegotiableMOQ: 1 Set
Specifications
6 pcs spt510 35pl print headResolution: 1440 DPI
Color: C M Y K LC LM
Packing/m: 4.0 * 0.77 * 1.55
7 workday delivery

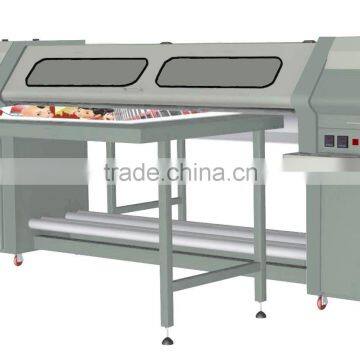

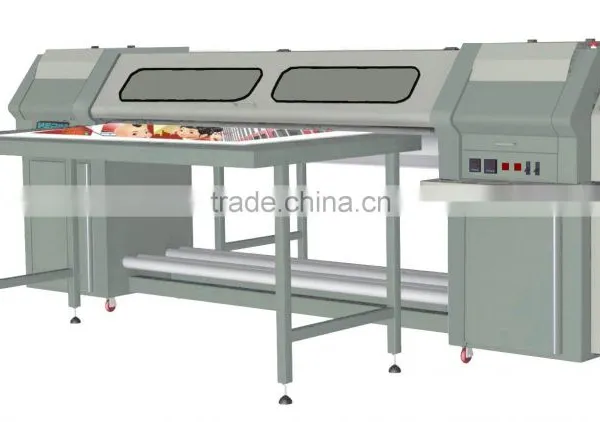

2.5 M digital flatbed printer
Printed pictures have high resolution, outdoor durability and scratch resistant
Reasonable structure & User friendly
One year warranty together with excellent after-sale services
Print Technology |
Drop-On-Demand Piezo Electric (Seiko/Spt510-35pl) |
Print Head |
6 Heads (Seiko/Spt510-35pl) |
Print Width |
2.5 m width |
Resolution |
1440 dpi Max |
Speed |
2 Pass 52 m2/h |
3 Pass 38 m2/h | |
4 Pass 26 m2/h | |
6 Pass 19 m2/h | |
Locating Mode |
Servo Driver/Servo Motor |
Media Width |
2.6 m |
Color |
C M Y K LC LM |
Ink Type |
Special ink for Seiko/Spt510-35pl |
Ink |
Solvent based Pigment Ink, at least two years outdoor life |
Ink delivery system |
Ink force pumps auto supplying system, main ink case 1L/color |
Media Handle |
Roll to Roll & Sheet to Sheet handling |
Media feeding &take-up system |
Infra Red Optical Controlling System for Media Feeding & Take-up |
Dry system |
Pre/Post and Middle heater controlled by PID |
Media Type |
Acrylic, PVC foam board, Wood board, Wall paper, Kt board, Mesh, PVC vinyl & Flex banner Etc |
Motor |
Fuji or Panasonic AC Servo Motor |
Linear Rail |
THK / HLWIN |
Height of Print-head |
1 mm - 12 mm above media, Adjustable |
Print head maintenance facility |
Protection trays for auto purge, daily maintenance and print heads over night |
Auto-cleaning system |
Double functional cleaning System of Pressure purge and Vacuum Suction |
Interface |
USB 2.0 |
Print Mode |
Bidirectional Printing |
File Format |
TIFF, JPEG, Postscript 3, EPS, PDFRGB/ CMYK |
RIP Software |
Original Maintop/Photoprint Rip software |
Working Process |
Photoprint software for Windows 2000 and Windows XP Etc. |
Power Supply |
50HZ/60HZ, 220V(±10%)>15A |
Filtration Facility |
PALL filter + Regular ink filter |
Operation Environment |
Temperature: 23~29; Humidity: 50%~80% |
