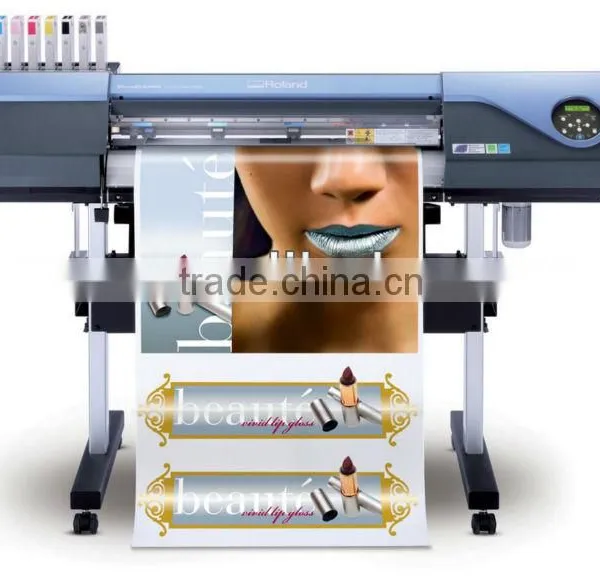

Print and Cut Machine

Print and Cut Machine thumbnail-1
Print and Cut Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, Eco Solvent Printer
Place of Origin:
Japan
Contact Supplier Request Quote Chat Now
Shanghai WER-China Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, Eco Solvent Printer
Place of Origin Japan
Brand Name Roland
Model Number VS-300
Usage Other, Interior and Exterior Advertising Printer
Automatic Grade Automatic
Voltage AC 110 V or 220 V
Gross Power 740 W
Dimensions(L*W*H) 1,075 (W) x 705 (D) x 1,175 (H) mm
Weight 90 KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

print and cut machine
max print/ cut width: 736 mm
1 piece Epson DX7
Support 8 color option
fast delivery

print and cut machine





Model  VS-300
Printing technology Piezoelectric inkjet
Media Width 7.2 to 30 in (182 to 762 mm)
Thickness Maximum 39 mil (1.0 mm) with liner for printing
Maximum 16 mil (0.4 mm) with liner and 9 mil (0.22mm) without liner for cutting
Roll outer diameter Maximum 8.3 in (210 mm)
Roll weight Maximum 55 lbs (25 kg)
Core diameter 3 in (76.2 mm) or 2 in (50.8 mm)
Printing/cutting width Maximum 29 in (736 mm)
Ink cartridges Type Roland Eco-Sol MAX INK
Capacity 220 ml or 440 ml *MT and WH in 220 only
Colors Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, metallic silver and white), six colors (cyan, magenta, yellow, black, light cyan, and light magenta), or four colors (cyan, magenta, yellow, and black)
Printing resolution Maximum 1,440 dpi
Cutting speed 0.39 in/s to 11.81 in/s (10 to 300 mm/s)
Blade force 30 to 300 gf
Blade offset 0 to 0.059 in. (0 to 1.5 mm)
Software resolution (when cutting) (0.000984 in./step (0.025 mm/step)
Distance accuracy (when printing) Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater
Distance accuracy (when cutting) Error of less than ±0.4% of distance traveled, or ±0.3 mm, whichever is greater
When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made):  Error of less than ±0.2% of distance traveled, or ±0.1 mm, whichever is greater
Repeatability (when cutting) ±0.1 mm or less
Alignment accuracy for printing and cutting ±0.5 mm or less
Alignment accuracy for printing and cutting when reloading media Error of less than ±0.5% of distance traveled, or ±3 mm, whichever is greater
Media heating system Print heater Setting range for the preset temperature: 86 to 112ºF  (30 to 45ºC)
Dryer Setting range for the preset temperature: 86 to 122ºF  (30 to 50ºC)
Connectivity Ethernet (10BASE-T/100BASE-TX, automatic switching)
Power-saving function Automatic sleep feature
Power requirements AC 100 to 120 V ±10%, 5.6A, 50/60 Hz or AC 220 to 240 V ±10%, 2.9 A, 50/60 Hz
Power consumption During operation Approx. 740 W
Sleep mode Approx. 14.4 W
Acoustic noise level During operation 64 dB (A) or less
During standby 41 dB (A) or less
Environmental Power on Temperature: 15 to 32ºC (59 to 90ºF) [20ºC (68ºF) or more recommended], Humidity: 35 to 80%RH (no condensing)
Power off Temperature: 5 to 40ºC (41 to 104ºF), humidity: 20 to 80%RH (no condensing)
Dimensions (with stand) 67.2 (W) x 27.8 (D) x 46.3 (H) in (1,075 (W) x 705 (D) x 1,175 (H) mm)
Weight (with stand) 199 lbs (90 kg)
Optional Items TU2 take-up reel
Included items Stand, power cord, blade, blade holder, media clamps, media holder, replacement blade for separating knife, software RIP, user's manual, etc.
