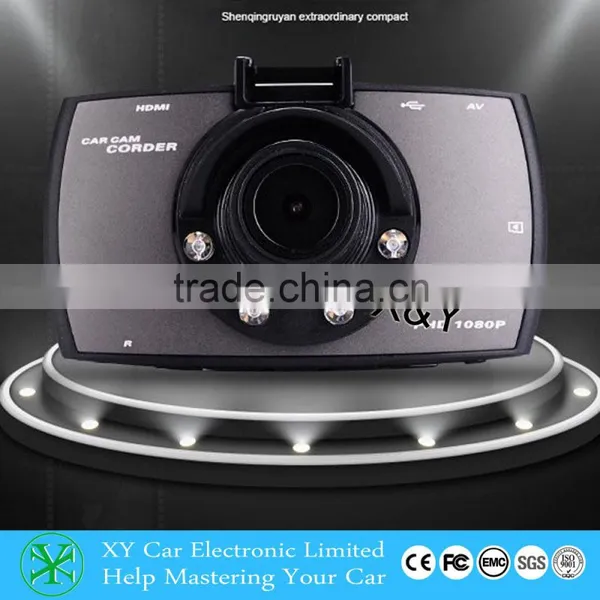

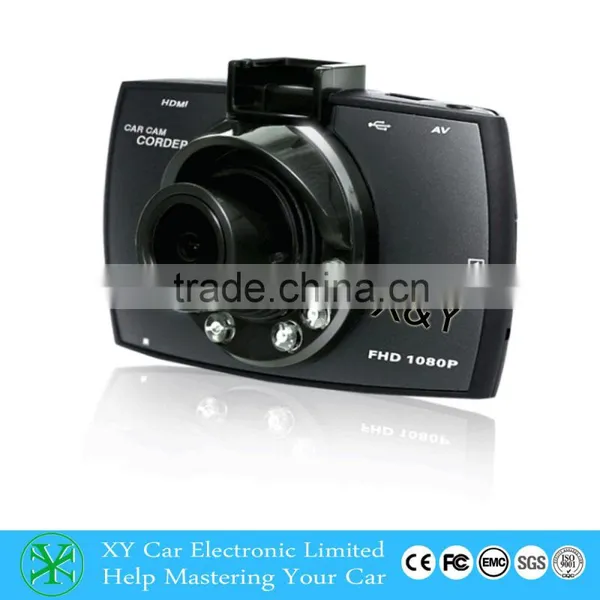

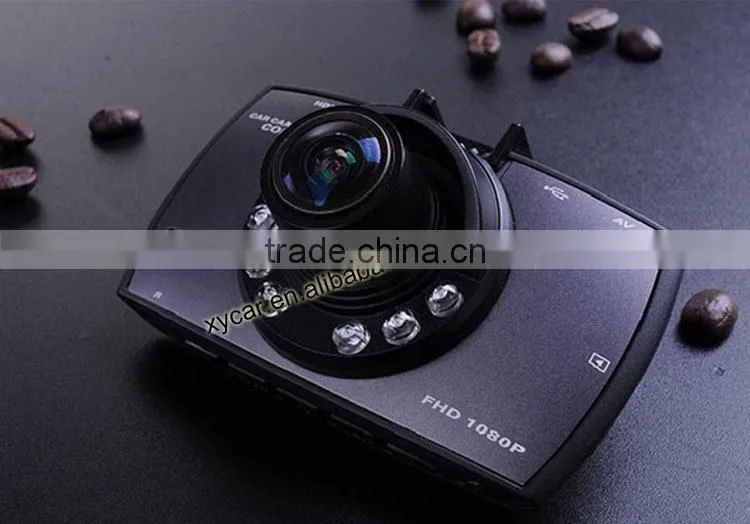

car black box car video recorder HD LCD Display night vision car dvr with G-sensor XY-H700
night vision car dvr with 2.7 inch screen XY-H700

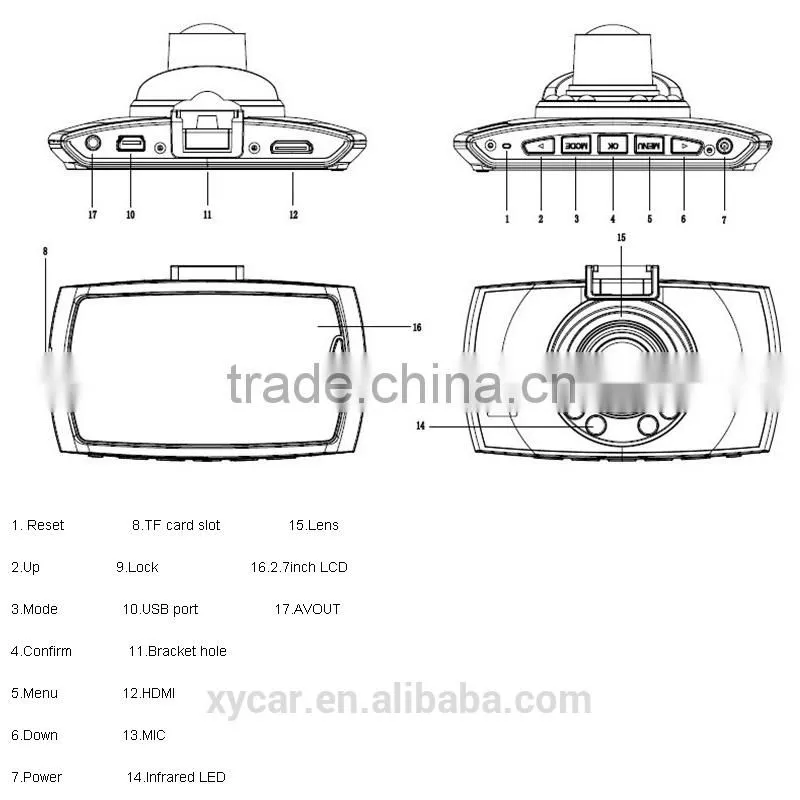

Short press the power key and connect the USB car charger,the DVR will enter the recording mode.( please insert the TF card first). Now,the blue light will flash,the files will be stored into the TF card.
When taking off the USB car charger or long press the power key,the DVR will be closed and the blue light will stop flashing.
G-sensor
When the car impacts, the present video files will be saved as a file that is named as EVE beginning, the video file will not be deleted when cycle recording.
Emergency lock
When recording, short press the Lock key to lock the present file,the file will be saved as SOS beginning, the video file will not be deleted when cycle recording.
Photo mode
Short press Power key to start DVR and press the Confirm key to stop
recording, then short press the Mode key to enter the photo taking mode, press the Confirm key to take photos.
Night vision function
Under the recording and photo taking mode,short press the power key to open or close the
Infrared LED.
View and delete files
Start the DVR and press the Confirm key to stop recording, short press the Mode key twice to enter the playing back mode; press the UP key to choose the recorded file and press the Confirm key to play or view files, press the Menu key to delete mode after playing; press Down key to choose deleting or formating; continue pressing Menu key to exit operating.
Menu Functions Setting
Start the DVR or stop recording, press the Menu key to enter the menu setting interface; press Up key or Down key to choose the specific parameter, at last,press the Confirm key to confirm the operation.Press the Menu key to exit the setting interface after finishing all functions setting.
USB mode
Please connect the DVR to computer by USB cable, then press the Power key,the USB menu will popup automatically in the device, and there are two modes optional:
USB-Disk
Under this mode, we can save or get the video files or photos.
PC-Camera
Under this mode, it will popup USB videodevice automatically,and we can take photos or video chat.
AVOUT output
Connect the DVR to TV by AV cable, the screen of DVR will be off and the image will be displayed in the TV.
HDMI output
Connect the DVR to TV by HDMI cable,the screen of DVR will be off and the image will be displayed in the TV.
Attention:
Please insert the TF card to the device before recording
Please connect the DVR to car power by USB car charger, the car charger is built in 12V to 5V adapter, if the output voltage is higher than 5V,the DVR wil be burned down.
Package Include:
1 x Car Driving Recorder
1 x User manual
1 x USB cable
1 x USB car charger (built-in 12V to 5V adapter)
1 x AV cable

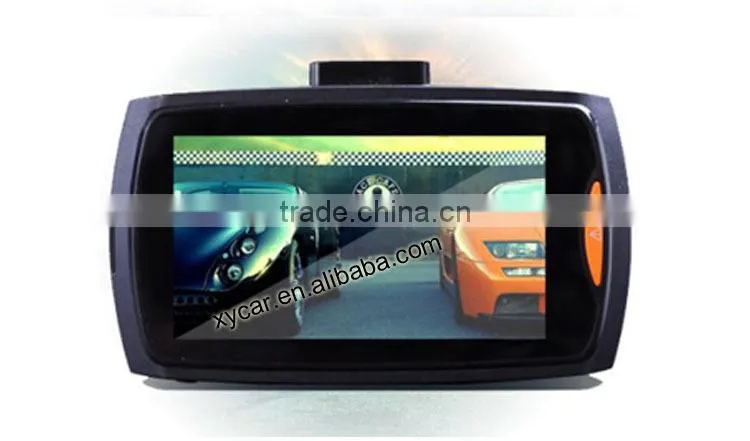

Screen |
2.7inch screen |
Lens |
OV9712 Sensor + 940NM lens |
View angle |
120degrees |
Minimum Lux |
0.01Lux |
Recording way |
Cycle recording/motion detection |
Video format |
AVI |
Video compression way |
M-JPEG |
Video resolution |
1920x1080P(24fps)1440*1080/1280*720/848*480//320*240(30fps) |
Photo resolution |
4032*3024, 3648*2736, 3264*2448, 2592*1944, 2048*1536, 1920*1080, 1280*960, 640*480 |
Video output |
AVOUTvideo output,HDMI video output |
Video output format |
PAL/NTSC |
Seamless video |
yes |
Turn on automatic recording |
support |
G-sensor |
When car impact, save the video file urgently,and it will not be deleted when cycle recording |
Manual lock |
When recording,short press Lock key to lock the present file,and it will not be deleted |
Language |
Russian,Japanese,French,Italian,Germany,Spanish,Portuguese,Engligh,Simple Chinese,Traditional Chinese,Korean |
Loop recording time |
1mins/3mins/5mins(optional) |
Audio reocrding |
Built-in microphone, can choose openning or closing the audio recording function |
Version number |
Show the software version number and Software release date |

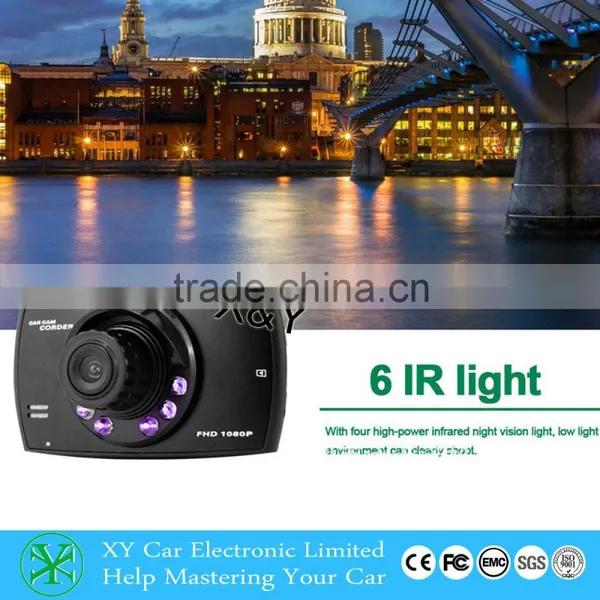

Night vision |
6pcs IR LED |
Memory card |
TF card |
Memory card capacity |
1GB--32GB |
USB port |
Mini5Pin USB2.0 |
Operation system |
Windows 2000,windows xp,windows 7 etc.. |
Battery |
3.7Vpolymer battery |
Power consumption |
standby200MAH recording250MAH-315MAH |
Power supply |
Car power 5V/1A |
Storage temperature |
-10℃~70℃ |
Operation temperature |
-10℃~60℃ |
We are the professional car dvr camera recorder system supplier with 9 years experience,and offered excellent OEM ODM service to world wide famous brands.
Please send your details request for cameras (installation type,lens angles,chipset solution,with GPS tracking play back,1/2/3/4 camera recording,GPS navigation,Wifi/3G,Andriod system...) and we could offer the best solution for you.
With strict material and producing quality control,we offer 1 year warranty
and less than 0.3% faulty rate production to our customers.
Welcomes All Customers Vistor Our Factory and Happy to do Business with all overseas
Note:We have strict producing process, aging test and QC to make sure high quality production.
We have established systematic production standard in waterproof,shockproof,temperature resistance,
humidity resistance,high definition.
competitive advantage
1.Stable quality (CE FCC ROHS)
2.Most competitive price
3.On time delivery
4.Good aftersales service
5.All products must test one by one wartproof resistance and high/low temperature resistance
6.Warranty:16months
7.OEM,ODM welcome
Guangzhou X&Y Electronics Co., Ltd. was established in Guangzhou in 2005. We are a hi-tech enterprise engaged in the R&D, production, and sale of car camera system,car DVR camera.We guarantee punctual delivery, competitive price and prompt response. We welcome your inquiries and look forward to establishing long-term business relationships with you in the near future.
