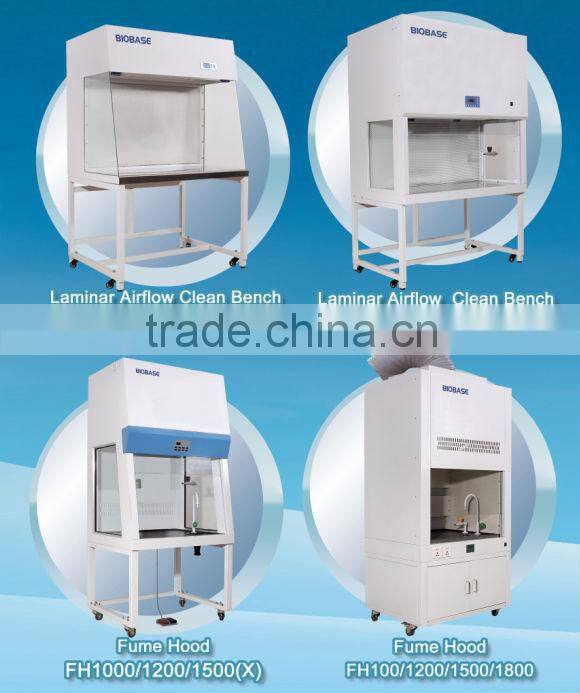

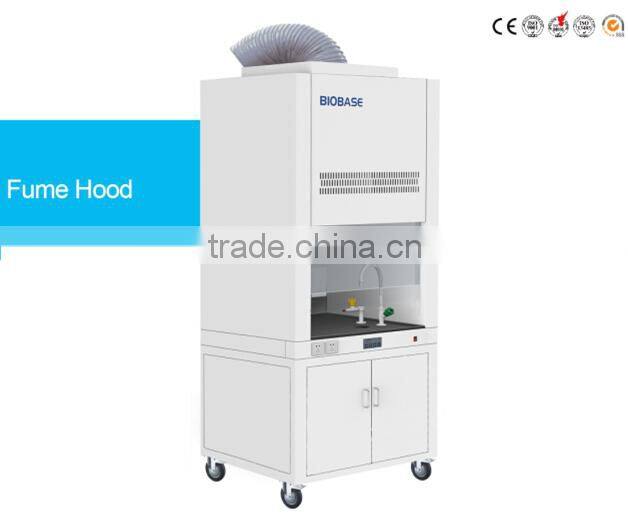

Fume Hood
Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter,fume hood can also protect environment.
Advantages:
1. Double-layer structure: 1.2 mm sheet metal surface, melamine board inward;
2. Microprocessor control system, LCD display;
3. Adjustable air speed: 6 levels;
4. Chemical-resistant physiochemical board work table;
5. Motorized front glass window;
6. UV Lamp for sterilization;
7. Standard accessories: taps, sink, duct, sockets, UV lamp, fluorescent lamps, base cabinet.
Fume Hood Technical parameters:
Model |
FH1000 |
FH1200 |
FH1500 |
FH1800 |
|
External Size (W*D*H) |
1000*750*2200mm |
1200*800*2200mm |
1500*800*2200mm |
1800*800*2200mm |
|
Internal Size (W*D*H) |
820*620*750mm |
1020*670*750mm |
1320*670*750mm |
1620*670*750mm |
|
Work Surface Height |
850mm |
||||
Max Opening |
450mm |
||||
Protection Class |
Class I |
||||
Protection Type |
IP 20 |
||||
Air Velocity |
0.3~0.8m/s |
||||
Noise |
≤60dB |
||||
Exhaust Duct |
PVC, Standard length: 4 meters. |
||||
Φ300mm | |||||
Pipe Strap |
1 pc |
||||
Fluorescent Lamp |
15W*1 |
21W*1 |
28W*1 |
36W*1 |
|
UV Lamp |
20W*1 |
21W*1 |
30W*1 |
30W*1 |
|
Blower |
Built-in centrifugal blower; Speed adjustable. |
||||
Front Window |
5mm toughened glass; Motorized; Height adjustable. |
||||
Power Supply |
110/220V±10%, 50/60Hz |
||||
Consumption |
150W |
150W |
235W |
235W |
|
Material |
Exterior |
Cold-rolled steel with corrosion-proof coating. |
|||
Interior |
High grade melamine board with good acid and alkali resistance function |
||||
Work table |
Solid chemical resistant physiochemical board |
||||
Stand Accessory |
UV lamp*2, Fluorescent lamp, Water tap, Gas tap, Water sink, Base cabinet |
||||
Two sockets, total consumption: 1000W | |||||
4-meter PVC exhaust duct | |||||
Optional Accessory |
Active carbon filter/HEPA filter |
||||
Gross Weight |
230kg |
270kg |
370kg |
420kg |
|
Package |
Main Body |
1140*900*1720 mm |
1340*900*1760mm |
1660*1000*1840mm |
1950*950*1900mm |
Base Cabinet |
1140*900*900mm |
1340*900*970mm |
1660*950*800mm |
1950*950*860mm |
|
