Help CenterCE Mark 160L Air Jacketed CO2 Incubator
Related Products
-
Constant-temperature IncubatorUS$ 600 - 2,000MOQ: 1 Set -
Biochemistry Incubator for Lab UseUS$ 600 - 3,000MOQ: 1 Set
-
BIOBASE Mini Shaking Incubator for Lab Use With CE MarkUS$ 400 - 1,000MOQ: 1 Set
-
BIOBASE BJPX Series Laboratory Drying OevnUS$ 600 - 3,000MOQ: 1 Set
-
Water Bath for Laboratory UseUS$ 400 - 1,000MOQ: 1 Set
Specifications
Internal materia: stainless steel structureMicrocomputer intelligent temperature controller
Double lay door
UV lamp
CE Mark High Quality CO2 incubator
CO2 INCUBATOR STRUCTURAL CHARACTERISTICS
Two optional structure are adopted, namely water jacket structure and air jacket structure. Operation room is made
of endurable stainless steel and equipped with fan so that compulsive air convection is to be created in its internal air passage, which enhances its indoor temperature uniformity and balance of CO2density.
When door opens, fan stops and heating also automatically ceases. (Model WJ-3, inlet valve CO2 shuts down also immediately) in order to reduce the degree of pollution created by air admission.
Incubator temperature is controlled by a microchip processor with PID algorithm for its high precision and anti-interference capability. Furthermore, internal air temperature, water temperature and door temperature are controlled by adopting three separate probes,
which maintains high temperature and precision and minimizes its vibration and or fluctuation. (air jacket is equipped with two probes for the purpose of controlling door temperature and main body temperature.)
Touchingbutton switch, easily and flexibly handled, adopts LED digital display with all fixed parameter for all relevant working states. Multi-protective functions such as overheating, water shortage and air supply cut etc ensure the safety of operation.
Eliminate pollution by adopting non-bacterial air filtering plant and ultraviolet bacteria killing
Maintain sound humidity in operation room by adopting the way of natural evaporation.
BIOBASE CO2 Incubator adopts gilded infrared-wave probe in the detection of CO2 in order to ensure accuracy of data, the sensor life expectancy up to 15 years, work any set the of CO2 concentration in the indoor range> 0 to 20%, configure a super-concentrations, diffuse and alarm levels rise too truncated unaspirated.
CO2 Incubator Technical parameter:
Model |
BJPX-CYPRESS |
BJPX-Poplar |
|
Capacity |
160L |
160L |
|
Heating Way |
Air Jacket |
Water Jacket |
|
Shelf |
2 standard (Max 12) |
||
Exterior Door |
Cold-rolled steel with corrosion-proof coating |
||
Interior Material |
Stainless Steel |
||
Inner Door |
Toughened glass |
||
Temperature control range |
Room temperature +3 - 60°C |
||
Temperature control method |
PID control |
||
Temperature fluctuation |
≤± 0.2°C |
||
Temperature Uniformity |
≤± 0.3°C |
||
Working time |
0-99hoursm or continuous |
||
CO2 concentration control range |
0~20% |
||
Sterilization Method |
UV Sterilization |
||
Alarm Function |
Over temperature alarm, Hi/low temperature alarm CO2 expired alarm, C02 level alarm, Water shortage alarm |
||
Rated Power |
700W |
1200W |
|
Chamber size(mm) |
50.5*45.5*70 |
50.5*45.5*70 |
|
External Size(mm) |
670× 640× 1030 |
670× 640× 1030 |
|
Capacity |
160L |
160L |
|
N/G Weight |
80/115kg |
80/115kg |
|

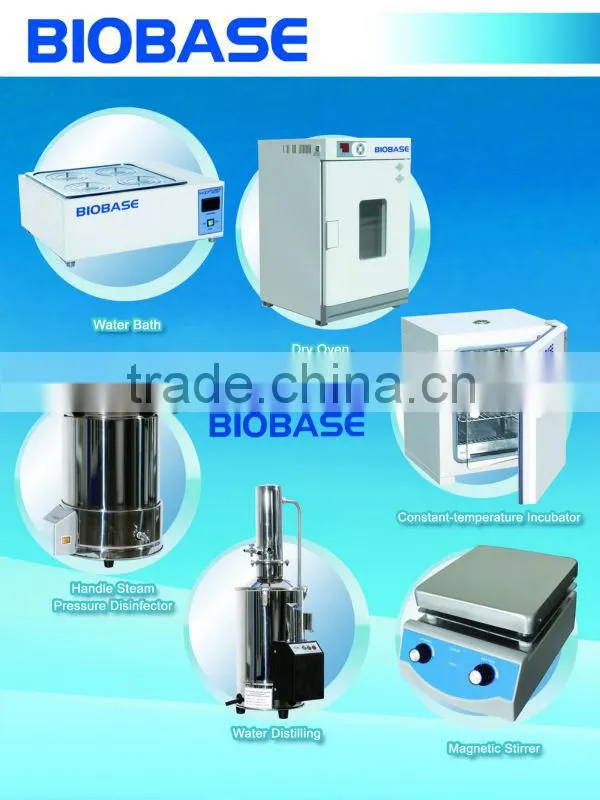

BIOBASE other products for your reference.
