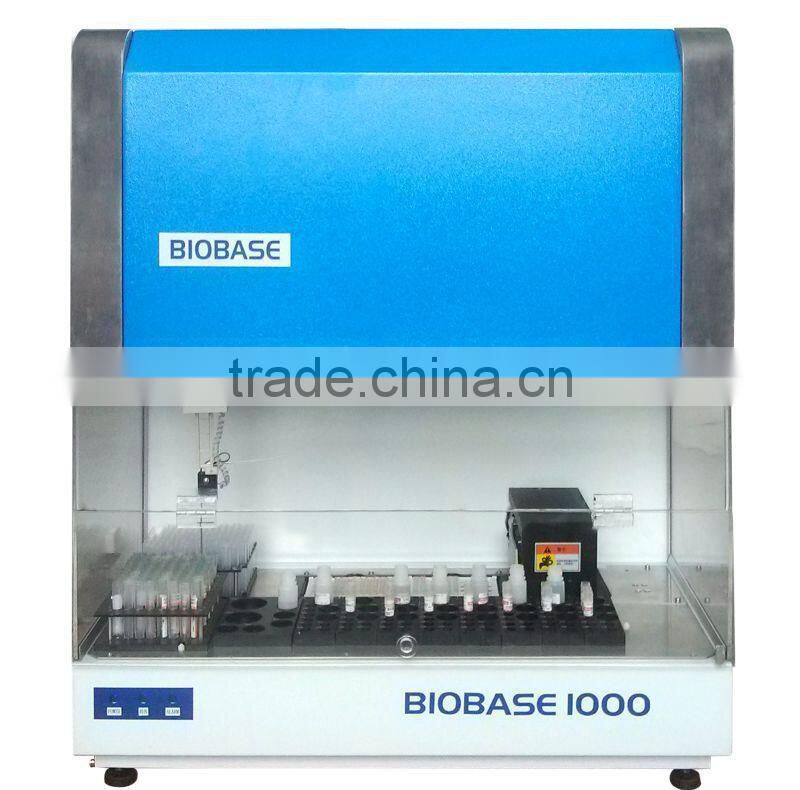

Fully Automated ELISA Analyzer / ELISA Processer/ HIV Test Kits

Model

Biobase1000

Type

Fully automated ELISA analyzer

Sample racks

60 or 80 – 12 mm sample tubes or 40 - 16 mm sample tubes

Dilution rack

92 positions

Reagents holder

modular racks to hold calibrators, controls and reagents for 8 methods on line

Liquid reservoirs

external tanks equipped with level sensors; 2 washing buffer

Microtiter plates

2 plates (96 wells) with incubation capability, from room temperature to 45 °C

Dispensing system

1 aspirating-dispensing probe with X-Y-Z movement; dilution system with a syringe of 1000 μl, continuous flow washing station

Washing system

two 8 nozzle on line manifolds with automatic adaptation for the different micro-plates height

Washing Residual volume

< 3μl

Washing inaccuracy

CV < 5 % with 300 μl

Readingsystem

8 independent photometric channels for mono and bichromatic reading

Optical filters

2 filters (450 and 630 nm); 2 more on request (max 4 filters)

Readinginaccuracy

± 1% from 0.000 to 1.500 OD ± 2% from 1.500 to 3.000 OD

Dispensation

from 8 ml to 1000 ml with 1μl resolution; inaccuracy ±1% with 100 μl

Software

Windows 98 and XP operating system, to set up the work list, patient reports and results filing; calibration curves storage for each carried-out test

Connection

LIS interface capability, work list set up from Host computer.

Capability of connecting more instruments to a single PC.

Power Supply

200/110 VAC, 50-60 Hz

Dimension

620 x 820 x 720

Weight

80 Kg

OPTIONAL:

Sample Bar Code Reader
