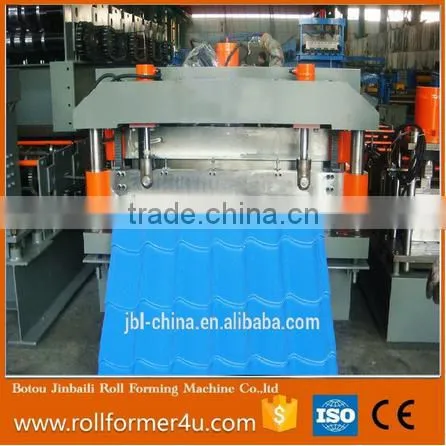

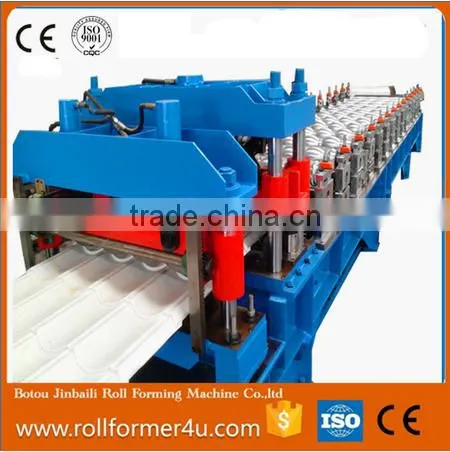

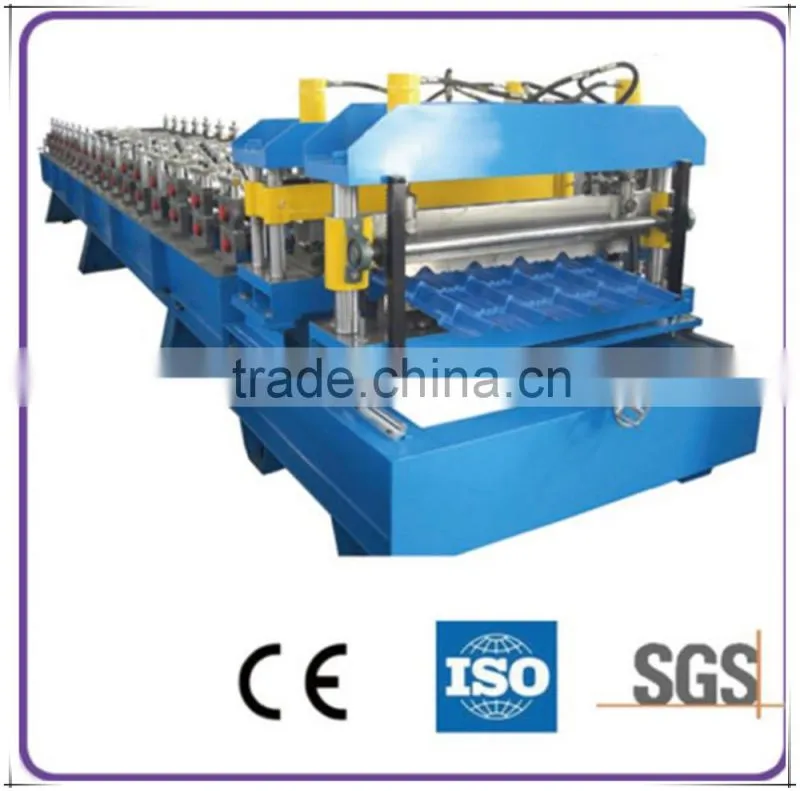

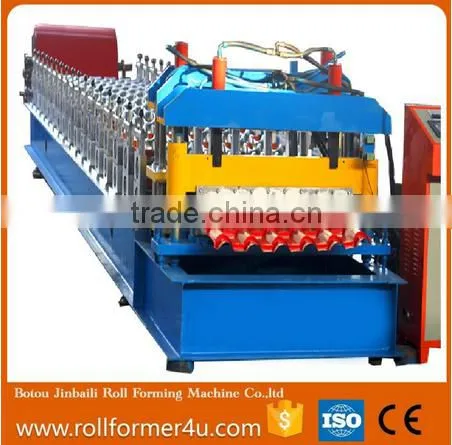

Aluminum Colored Glaze Stee tile steel metal beautiful roof Tile Roll Forming Machine

 Glazed tile roof roll forming machine

Profile drawing

We can also design Glazed Tile Roll Forming Machine according to your specific profile drawing

Steel metal Roof Tile roll forming machine

1. The colored steel metal tiles produced by the metal roof glazed tile roll forming machine look beautiful ,elegant and noble.They are widely used as the roof tiles in garden,factories, hotels, exhibition centers and villas.

2. Coil width:914-1250mm,or customized according to custer requirements.

3. Coil thickness:0.3-0.6mm

4. Decoiler:5 Ton Manual decoiler or hydraulic decoiler

5. The speed of the entire roll forming line is 0-5m/min(including pressing and cutting time)

6. Working speed is 0-5m/min

7. Forming Stations:about 13-20 steps

8. Diameter of Axis:76mm

9. Dimension of Main Forming Machine :about 11,000mm*1500mm*1400mm(L*W*H)

10. Weight of Machine :about 6.8Ton(according to design)

11. This tile roll forming machine is suitsble for coiled metal material,making the required shape after processing thought uncoiling ,forming contrnuously ,pressing and cutting to length .The roll forming machine used a PLC controlling system,ACfrequency and adjusting-soeed technology ,in order to achieve continuosproduction.

The chart of process

Decoiling→ feeding→ pressing and forming the shape→ measure the length→ cutting→ receiving the plates

Equipment sketch map:

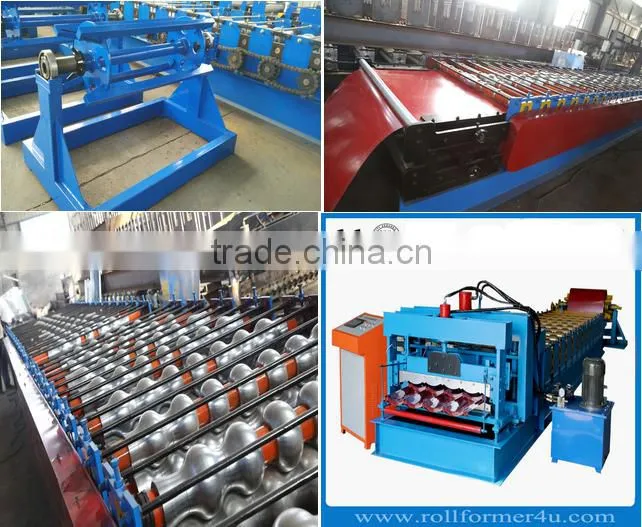

The equipment includes

Characteristic of Roof Tile Roll Forming Machine

Different steel roof tile roll forming machines can produce different shapes of steel tle roof sheets in various thickness and colors.Steel tile roof sheets are the new substitutes for traditional  clay or concrete tiles .They are popular due to their low cost, short building period ,re-cycle-use ,and elegant appearance,making them widely used in villas.luxury house ,theatres,exhibition centers ,and other areas.

1. This roof tile roll forming machine is used to roll form metal roof tiles.After the tiles have been roll formed by this glazed roof forming machine,the surface.

2. The steel glazed roof tile  roll forming machine is equipment with a fully automatic control system with PLC control.

3. Length and quantity of sheets is adjustable.

4. Roll forming process :Decoiling roll forming pressing cut to length

5.Easy operationg:Key in the length and quantily on the control panel .

6. 1 year warranty ,lifelong time service.

7. We can also crate a custom roll forming machine,and design machines according to your specificationes ang profile drawing ,All our machines are customized.

Our Advantage:

1. High Quality

2. Reasonable Price

3.Excellent after service

4.1 year warranty

5. More than 18 years of experience

6. Copra desingning software

7. 5-8technicianos to specifically carry out international installation and debugging each month.

Web: /

Our Company is major trapezoidal roof roll forming machine manufacture based in China. Our mainly products include double level roll forming machines, trapezoidal roof forming machines, steel pipe forming mill, slitting lines and cut to length lines, etc. They are widely used in process sheet metal and form roof panels, shingle nails, glazed tiles, purlins, deck, downpipe and more, or for metal roll forming in steel shelving systems and highway guardrail systems, and so on.
For more information on our metal forming machines, or other products, we welcome you to contact us.

Verified Information By Onsite Checked
Verification Type: third-party verification service provider

Business license:

Registration No.:130981000025769

Date of Issue:2013-03-11

Date of Expiry:2033-03-10

Registered Capital:RMB 500,000

Company Name:Botou Jinbaili Roll Forming Machine Co., Ltd.

Country/Territory:China (Mainland)

Registered address:Nancang Street, Botou, Cangzhou, Hebei, China (Mainland)

Year Established:1999

Legal Representative/CEO:Jianping Huang

Legal Form:Limited Liability Company (Invested Or Controlled By Natural Persons)

Issuing Authority:Botou City Administration for Industry and Commerce

Business Type: Manufacturer, Trading Company

Operational Address: Nancang Street, Botou, Hebei, China (Mainland)

1.Installing and training machine manufacturer

1) If buyers visit our factory and check the machine will teach you how to install and use the roll forming machine for sale, and also train your face workers / technician face.
2) Without visiting, we will send user manual and video to teach you how to install and operate.
3) If the buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2. After the service roll forming machine for sale

1) One year warranty for all roll forming machine sale.
2) 24-hour technical support by email or by calling
3) If there is any problem
