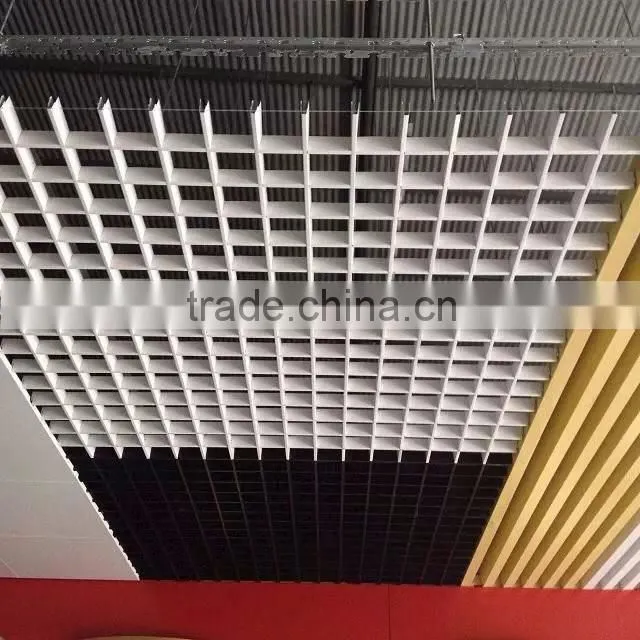

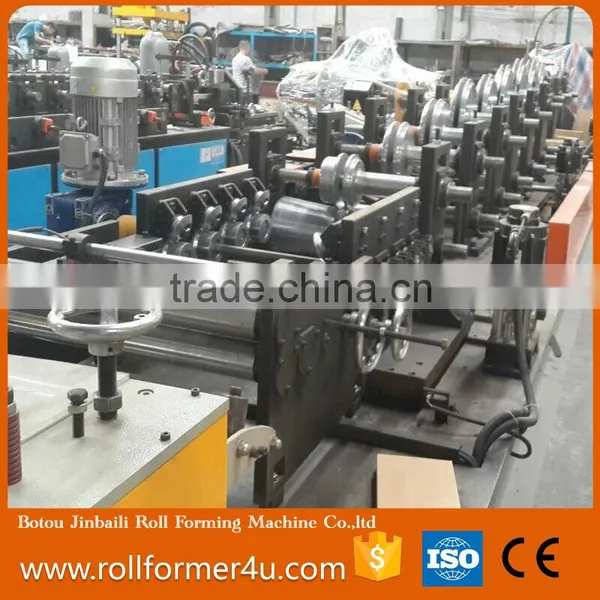

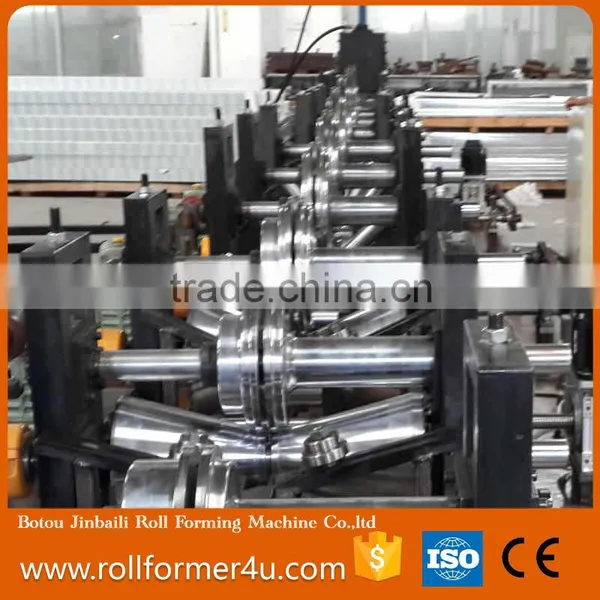

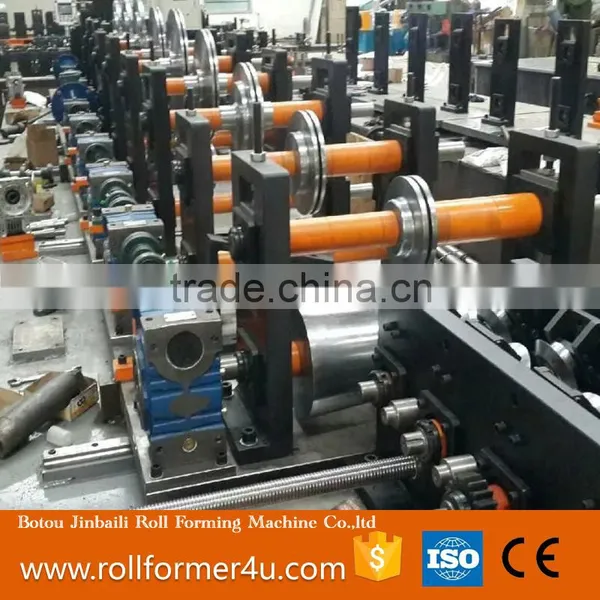

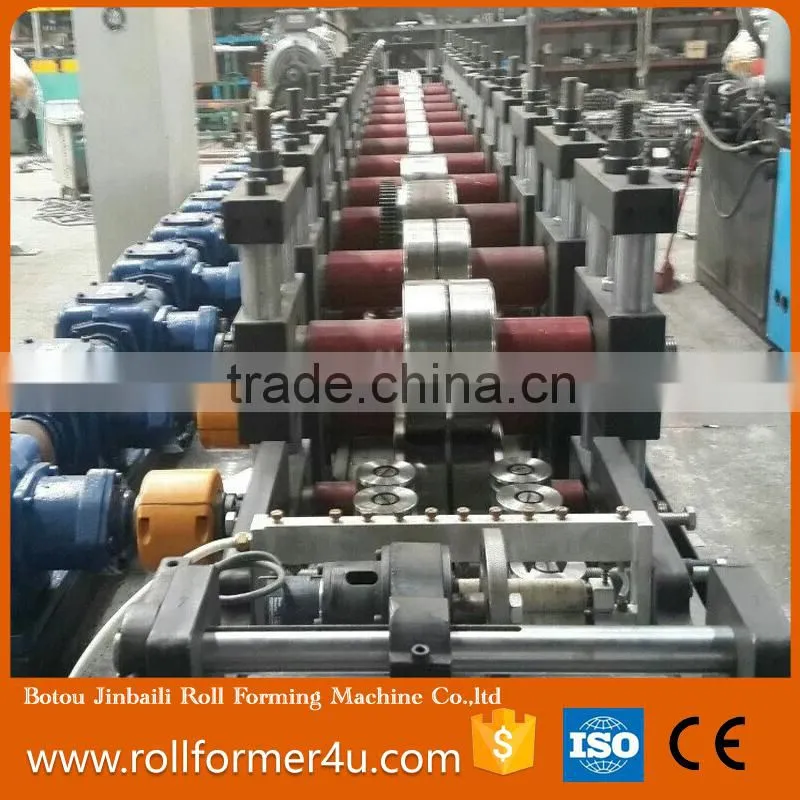

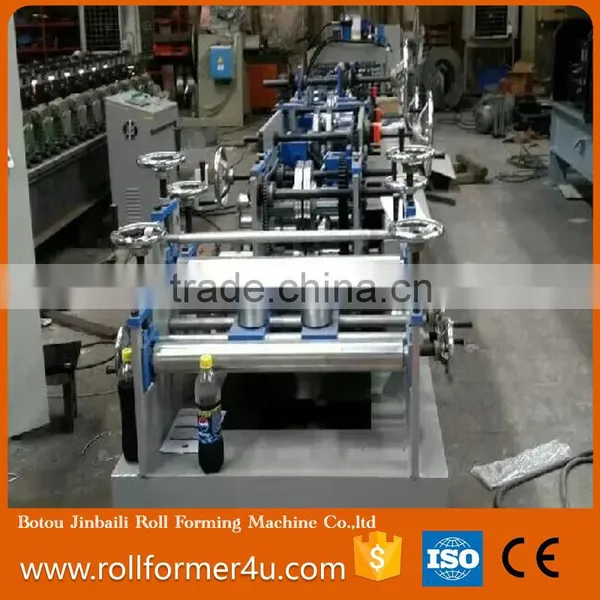

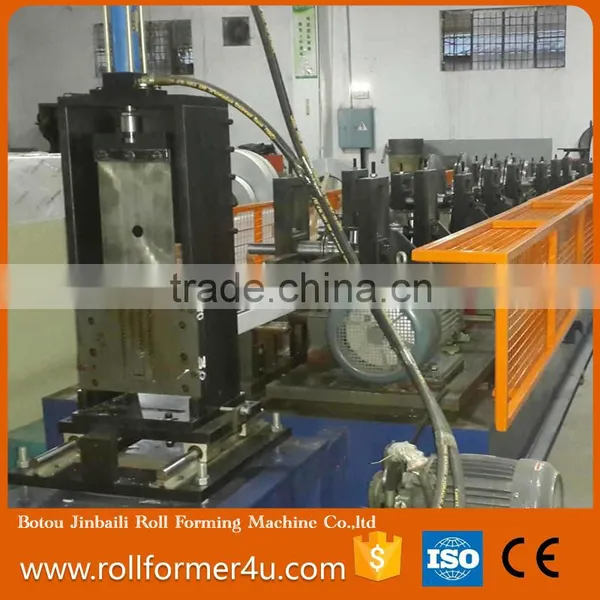

aluminum ceiling U shaped strip linear ceiling forming machine
Material: AL Coil 1001 3003
Material Thickness:0.4-0.6mm
Main Power: 4KW
Hydraulic power: 4KW
Forming Station: about 12 steps ( adopt Italy Technology )
Axis Diameter: ¢ 50 mm
Forming Speed: 0-15m/min
Forming Frame Structure: Guiding Column + Slide Blocks; This forming frame structure design is much high precision than wall plate welding structure
PLC Brand: PANASONIC Brand
Machine Diameter: about 7000mm(L)x800mm(W)x1300mm (H)
Weight of machine: about 2 Ton
Voltage: 380V, 3 Phase 50Hz ( or depend on customer’s requirement )
.
Product Application
Aluminum ceiling strip roll forming machine is composed of hydraulic decoiler with breaking device, roll former with hydraulic cut run out table and automatic stacking device, and more. Our drywall stud and track roll forming equipment,
also known as partition beam roll forming machine..
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,
Ushaped ceiling strip.
Semi-Automatic Machine one machine can make all need size.
We are wholeheartedly committed to quality and customer service, primarily since we want to be ranked as the "best" in our business. Quality is not just another goal; it is our basic strategy for survival and future growth.
1. Are you manufacturer?
Yes, we are manufacturer and trading company.
2. What information you need before quote me?
We need profile drawin gof the panel you want to produce, material information and your special requirements
3. What payment terms you accept?
Commonly is TT, 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.
4. Can you make machine according to my design?
Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.
5. What is the warranty for our machine?
We have one year guarantee, and provide whole life's technical support
6. Is there any spare part send for free?
Yes, pls contact us we can talk it
7.Is the machine automatic?
Yes, it can be manual and automatic
8. Any more questions pls click "send inquiry" we can talk by email, thanks
We thank you for visiting our website, and we wish you a happy day. Good luck!
