1. Main Components
Manual Decoiler:1 set .un-poweredd,Manually contral steel coil inner bore shrinkage and stop max.feeding width:500mmcoil ID range 470mm ± 30mm
capacity:max 3t
2.Cold Rolling Mills
With feeding material guide,boday frame made from 500#H type steel by welding.
Rollers manufactured from Gcr15,precision machined,hard chrome coated.
shafts manufactured from 45#.Diame ∅90mm/ ∅75mm.precision machined.Motor Driving,Gear chain tranmission:14 rollers to from and 5 rollers for straightening and levelling.Main Motor:18.5kw.Frequency speed control:380v 50hz 3ph
Forming speed approx:15m/min

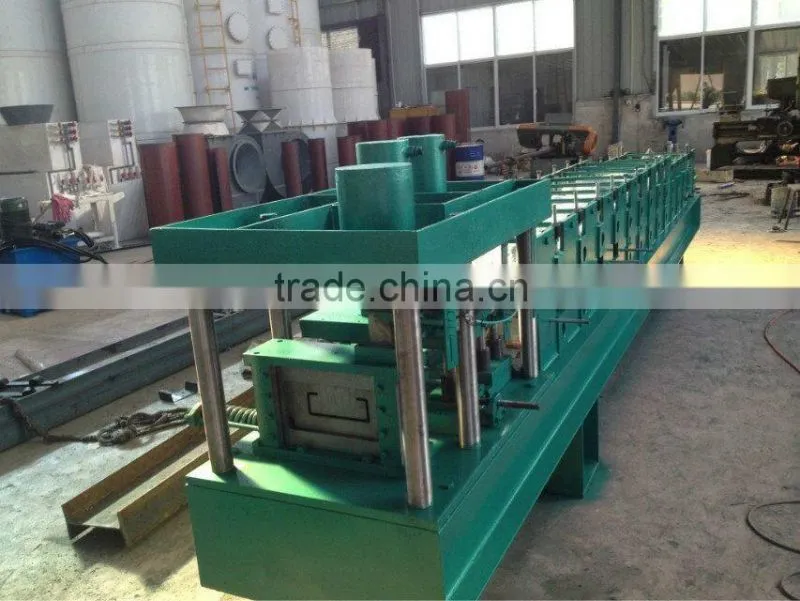

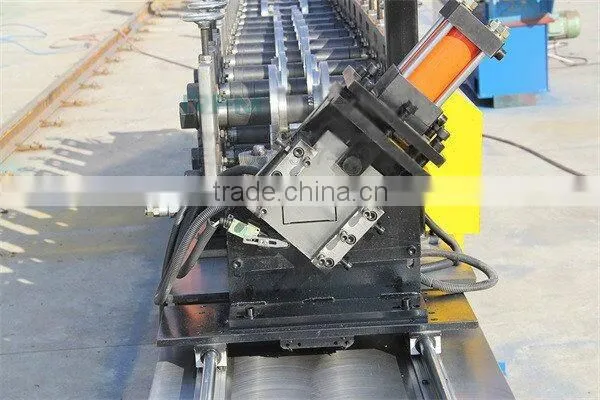

3.Hydraulic cutting device
Cutter frame made from high qialit 20mm steel plate by welding
pre-puching&pre-cutting,stop to puching,stop to puching,stop to cutting,use the same hydraulic motor drive
Hydraulic motor power:5.5kw hydraulic pressure range 0-16Mpa
cutting tool material:Cr12.Heat treament.
4.PL control system
Input the required model/size on the touch screen,it can Auto-changing the purlin C size in 60 seconds.
control voltage:24v

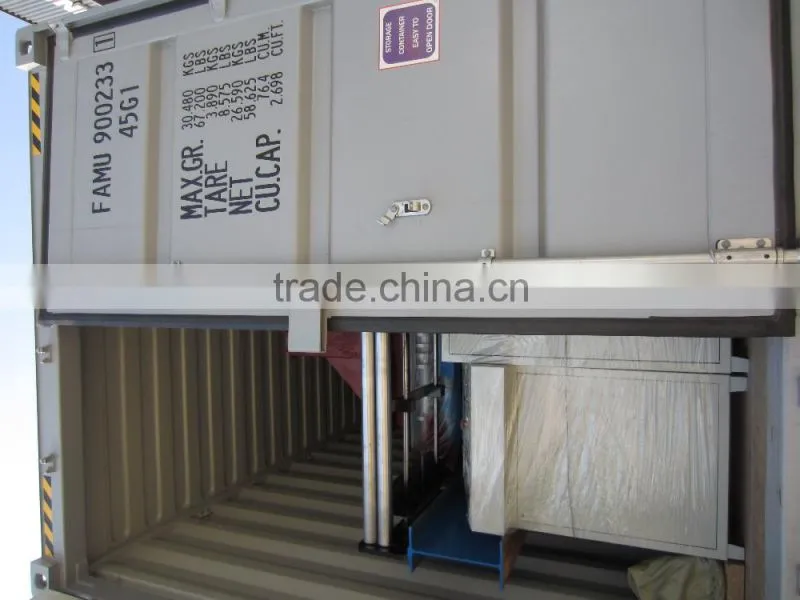

Container packaging of the line suitable for overseas shiping.
Warranty 1 year,with product replacement parts

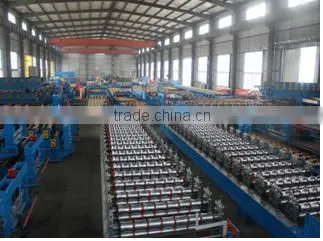

BOTOU JINBAILI ROLL FORMING MACHINE CO.,LTD specially in ROLLL FORMING MACHINE 15 years.Produced varios model machine.High quality and have domestic and foreign costomers.
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,
replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,
we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

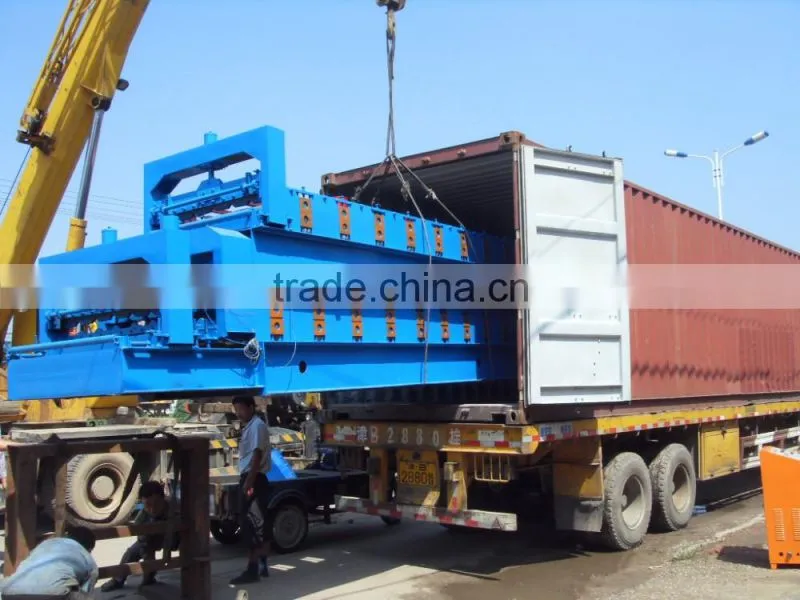

Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.
we have rich experience in transport.
Q:Mr.Alan,can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How many workers operate this machine to manufacture?
A:Only 4 workers.
Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
