Specifications

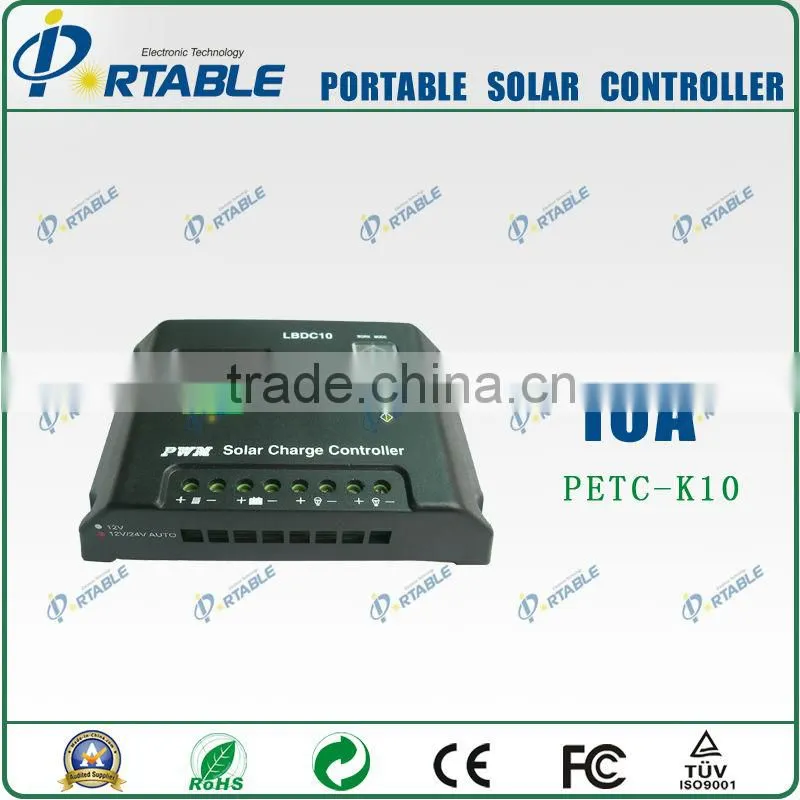

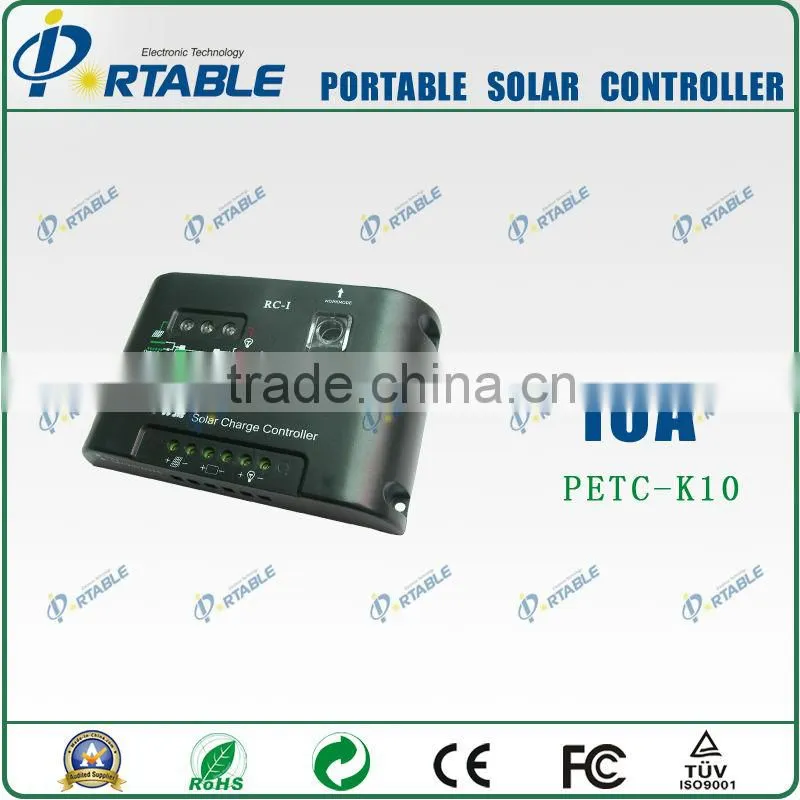

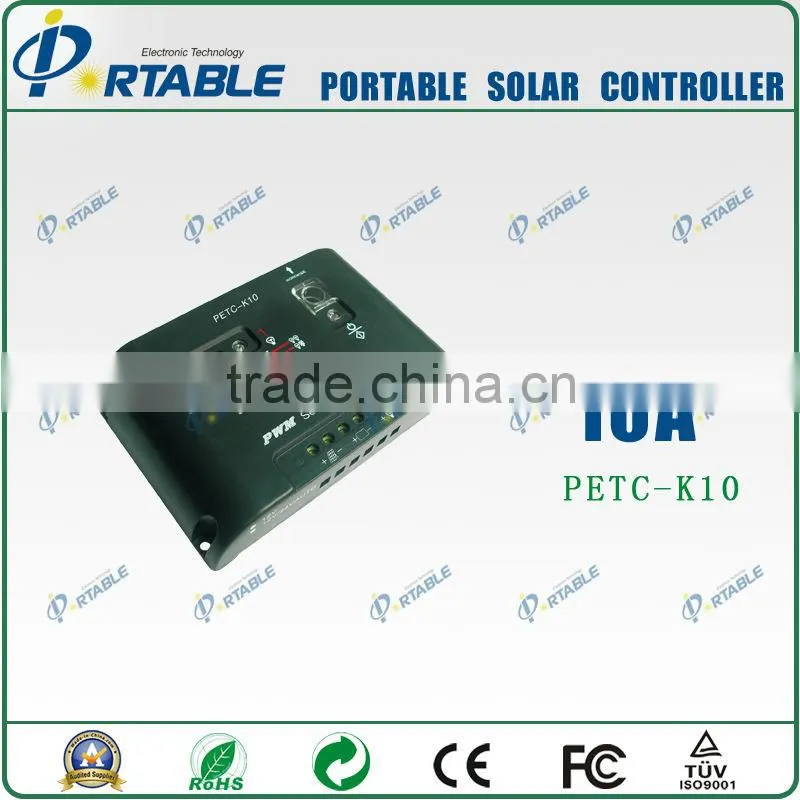

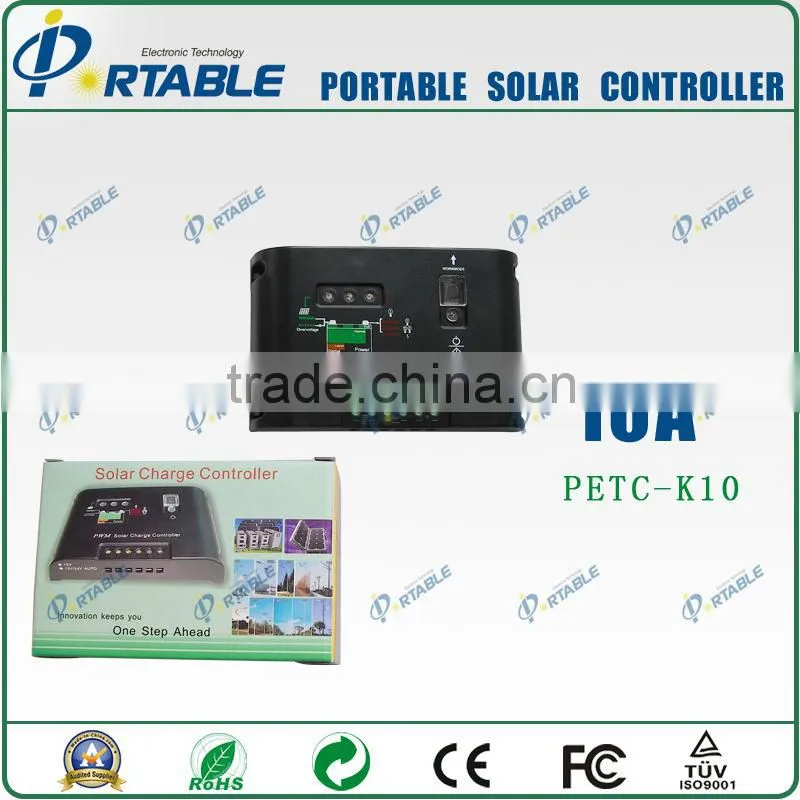

PWM Solar PV Charge Controller | PWM solar regulator 12V/24VSolar controller
System voltage 12V 24V/12V AUTO
PWM controller
PWM Solar PV Charge Controller | PWM solar regulator 12V/24V
Technical parameters:
Items |
Solar Charge Controller |
Model |
EPRC - 10LED – W EPRC - 20LED - W |
Rated Charge Current |
10A, 20A(12V/24V Auto) |
Rated Load Power |
10A Rated Voltage:12V:≤50W Rated Voltage:24V:≤100W 10A Rated Voltage:12V:≤100W Rated Voltage:24V:≤200W Note:Depend on the power of LEDs |
Constant power control precision |
>5% |
Overload, short circuit protection |
1.25 times rated current 60 seconds. 1.5 times rated current 5 seconds overload protection. |
System Voltage |
12V/24V Auto |
No-load Consumption |
≤6mA |
Recharge circuit reduction voltage |
≤0.26V |
Discharge circuit reduction voltage |
≤0.15V |
Overpressure protection |
17V, ×2/24V |
Ascending recharging voltage |
1.46 V, X 2/24V, Time 10min, (only when the discharge calls) |
Balanced recharging voltage |
14.4 V, X 2/24V, Maintain time :10min |
Floating charging |
13.6 V, X 2/24V, maintain Time: (until) voltage recharge returns |
Charging return volatage |
13.2v; ×2/24V(ascension, straight, floating and charging returns voltage compensation), |
Overcharging return volatage |
12.6 V, X 2/24V |
Out of volatage |
12.0V; ×2/24V; |
Overdischarge voltage |
11.1 V - the discharge rate consumption initial Over discharge voltage (no-load voltage), X 2/24V |
Temperature compensation |
-5mv/°C/2V |
Working temperature |
Industry-specific:-35°C~55°C(suffix I) |
Control Type |
Charging: PWMpulse width modulation, Output: Constant power |
Function |
Timer and light controlled |
Fit for |
Solar Home System,Solar Energy system,Solar Light, Solar Garden Light, Solar Power Supply, etc. |
Warranty |
One-year quality warranty |
Features:
1, Intelligent control. Specially designed for the constant power control output for LED light source, more advanced than output ways of constant-current control, more efficient, control conversion efficiency can reach above 90%. And can output power through the setup and fine-tune LED light source. At the same time, it can achieve half power (-TH) of timing, or adjust LED light source output power (- A) automaticlly according to the actual power of the battery, greatly improving the supply power rate of system. (also can realize constant current output control).
2, Soft start-up function and continuous stepless adjustment light function.
3, Fixed accurate discharge control by using discharge rate features of battery. The discharge end voltage is the control point which is fixed by discharge rate curve, eliminating the inaccurate of the pure control to the valtage overdischarging, according with the inherent characteristics of battery namely different discharge rate has different end voltage.
4, Complete protection: fully automatic control and protection of overcharging, over discharging, short circuit, overload, unique counter-attack connect, reverse current, reverse polarity, lighting, etc. All above protection without causing damage to any component, not burning insurance.
5, Tandem PWM charging main circuit, can reduce the 50% loss of the charging circuit than using diode recharging circuit, charging efficiency is 3% - 6% higher than non-PWM, increased the using power time. Ascending charging after overdischarging restore, normal balance charging, floating charging of automatic control mode can extend battery life, high precision temperature compensation.
6, LED displays the relevant parameters of solar charge controller and work status.
7, All control use industrial chip (only to suffix I-industry-specific controller), operation free in high temperature, moisture environment. Use crystals timing control, realize accurate timing control.
8, Flash memory make each work control point recorded, cancel potentiometer adjust control setting point, making setting digitization and eliminate factors which reduce the accuracy and reliability, such as the deviation of potentiometer vibration.
9, Digital LED display and setting a key type to complete all Settings, very convenient.
10, Controller has moisture-proof function.
11, Convenient wiring, simple installation without Day-to-day maintenance, service life is up to 20 years
Our services:
1.We can OEM, make your own brand name and logo.
2.We can make your own package.
3.According to your requirement
Our advantages:
1.From research to produce, we all do by ourselves.
2.Factory-direct service,producation circle short and low cost.
3.The apprence of the products are special, we have the patent.
4.International design team, from design to proofing, printing, production and whole.
5.We have provided many OEM service, our customers are 100% satisfied.
Our factory Shenzhen Portable Electronic Technology Co., Ltd. is mainly devoted to the research, development, manufacture and sale of solar products and power supply. Our solar mobile/laptop chargers, portable power,solar modules, solar infrared security lights,solar street light ,solar controller and solar home system etc supply have been successfully sold to clients in Europe, the USA, the Middle East, Asia, Australia and South Africa.
