Home > Electrical & Electronics > Electronic Tube & Transistor > Rectifier Diode > KBP206 Kbp Bridge Diode

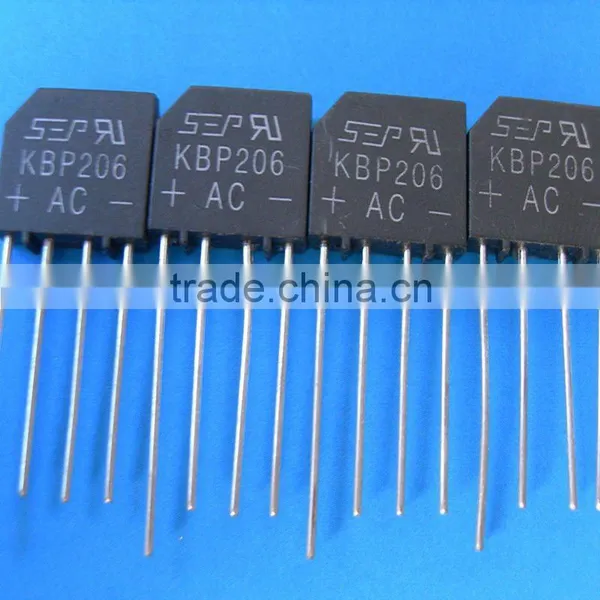

KBP206 Kbp Bridge Diode

Name: KBP206 Kbp Bridge Diode
Brand: BX,PY
SKU: 134126265
Availability: InStock

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Chongqing, China

Brand Name:

BX,PY

Model Number:

Silicon Bridge Rectifiers

Contact Supplier Request Quote Chat Now

Shenzhen Bingxu Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Chongqing, China

Brand Name BX,PY

Model Number Silicon Bridge Rectifiers

Type Rectifier Diode

Package Type Through Hole

Max. Forward Voltage .

Max. Reverse Voltage 600V

Max. Forward Current 2.0A

Max. Reverse Current .

Specifications

KBP206 Bridge Diode
1,2A, 600V
2,Low reverse current
3,Low forward voltage drop
4,High reliability

SILICON BRIDGE RECTIFIERS DIODE KBP201 THRU KBP207
PRV : 50 - 1000 Volts
Io : 2.0 Amperes

FEATURES :
* High case dielectric strength
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Ideal for printed circuit board

MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Terminals : Plated lead solderable per
MIL-STD-202, Method 208 guaranteed
* Polarity : Polarity symbols marked on case
* Mounting position : Any
* Weight : 2.74 grams

Type Number	SYM BOL	KBP 201	KBP 202	KBP 203	KBP 204	KBP 205	KBP 206	KBP 207	units
Maximum Recurrent Peak Reverse Voltage	*V_RRM*	50	100	200	400	600	800	1000	V
Maximum RMS Voltage	*V_RMS*	35	70	140	280	420	560	700	V
Maximum DC blocking Voltage	*V_DC*	50	100	200	400	600	800	1000	V
Maximum Average Forward rectified Output Current at TA=50°C	*I_F(AV)*	2.0							A
Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rate load (JEDEC method)	*I_FSM*	60							A
Maximum Forward Voltage Drop per element at 2.0A DC	*V_F*	1.0							V
Maximum DC Reverse Current Ta =25°C at rated DC blocking voltage Ta =100°C	*I_R*	10.0 500.0							uA uA
I²t Rating for Fusing (t 8.3ms)	*I²t*	10							A²Sec
Typical Junction Capacitance (Note 1)	*C_J*	15							pF
Typical Thermal Resistance (Note 2)	*R_(JA)*	25							°C /W
Storage Temperature	*T_STG*	-55 to +150							°C
Operating Junction Temperature	*T_J*	-55 to +125							°C
