DBS102 Bridge Diode

FOB Price

Negotiable / Piece

1000 Pieces(Min. Order)

Port Shenzhen
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China	Brand Name	BX.PY
Model Number	Bridge rectifiers	Type	Rectifier Diode
Package Type	Other, Molded plastic	Max. Forward Voltage	.
Max. Reverse Voltage	100V	Max. Forward Current	1.0A
Max. Reverse Current	.

Product Description

Specifications

DBS102 bridge diode
1.100V1.0A
2,High surge current capability
3,Small size,simple installation
4,Glass passivated

DBS102 bridge diode

DBS101 THRU DBS107

SINGLE-PHASE 1.0AMP. GLASS PASSIVATED BRIDGE RECTIFIER DIODE

VRRM 50V- 1000V

FEATURE

.High surge current capability

.Ideal for printed circuit board

.Reliable low cost construction utilizing molded technique

.High temperature soldering guaranteed:

260°C/10 seconds at 5 lbs.,(2.3kg) tension

.Small size,simple installation

.Good for printed circuit board

.Glass passivated junctions

.Reliable low cost construction

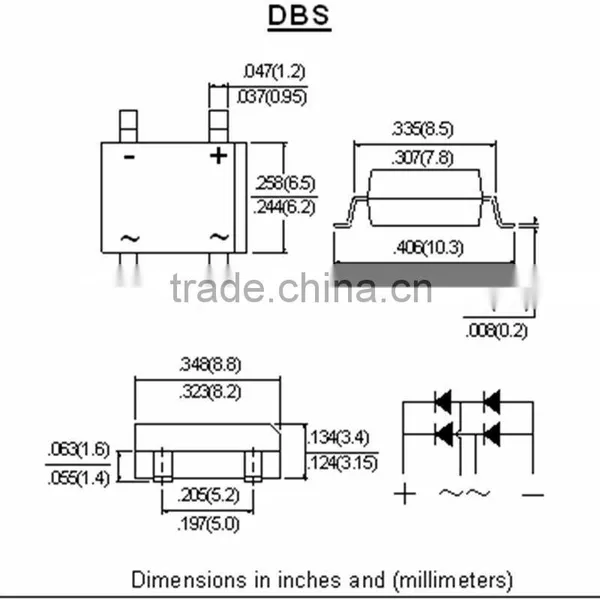

MECHANICAL DATA

.Case: Molded plastic

.Epoxy: UL 94V-0 rate flame retardant

.Lead: MIL-STD- 202E, Method 208 guaranteed

.Polarity: Symbols molded or marked on body

.Mounting position: Any

.Weight:0.4 grams

Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier DBS101 Diode
Reverse Voltage 50 to 1000 Volts Forward Current 1.0 Ampere

Type Number	SYM BOL	DB S101	DB S102	DB S103	DB S104	DB S105	DB S106	DB S107	units
Maximum Recurrent Peak Reverse Voltage	*V_RRM*	50	100	200	400	600	800	1000	V
Maximum RMS Voltage	*V_RMS*	35	70	140	280	420	560	700	V
Maximum DC blocking Voltage	*V_DC*	50	100	200	400	600	800	1000	V
Maximum Average Forward rectified Current at TA=40°C	*I_F(AV)*	1.0							A
Peak Forward Surge Current 8.3ms single half sine- wave superimposed on rate load (JEDEC method)	*I_FSM*	50							A
Maximum Forward Voltage Drop per element at 1.0A DC	*V_F*	1.1							V
Maximum DC Reverse Current Ta =25°C at rated DC blocking voltage Ta =125°C	*I_R*	10.0 400.0							uA uA
Typical Junction Capacitance (Note 1)	*C_J*	25							pF
Typical Thermal Resistance (Note 2)	*R_(JA)*	40							°C /W
Storage Temperature	*T_STG*	-55 to +150							°C
Operating Junction Temperature	*T_J*	-55 to +150							°C
