Home > Electrical & Electronics > Electronic Tube & Transistor > Rectifier Diode > Bridge Diodes KBL410 4A

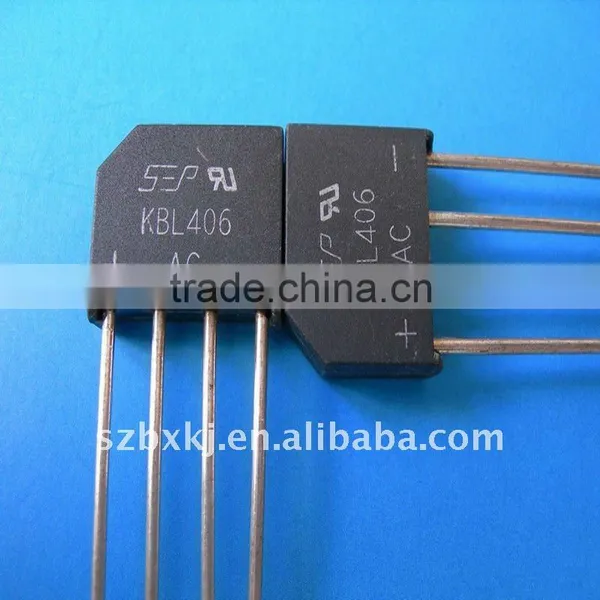

Bridge Diodes KBL410 4A
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
BX.PY
Model Number:
Bridge rectifiers
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Chongqing, China
Brand Name
BX.PY
Model Number
Bridge rectifiers
Type
Rectifier Diode
Package Type
Through Hole
Max. Reverse Voltage
1000v
Max. Forward Current
4.0A
Specifications
Bridge Diodes KBL4101,1000V, 4A
2,Surge overload rating: 200 A peak
3,High case dielectric strength
KBL401 THRU KBL410
SINGLE PHASE SILICON BRIDGE RECTIFIER DIODE
VOLTAGE: 50 TO 1000V CURRENT: 4.0A
FEATURES
• Ideal for printed circuit board
• Surge overload rating: 200 A peak
• High case dielectric strength
• High temperature soldering guaranteed:250oC/10sec/0.375"(9.5mm) lead length at 5 lbs tension
MECHANICAL DATA
• Terminal: Plated leads solderable per MIL-STD 202E, method 208C
• Case: UL-94 Class V-O recognized flame retardant epoxy
• Polarity: Polarity symbol marked on body
• Mounting position: Any
