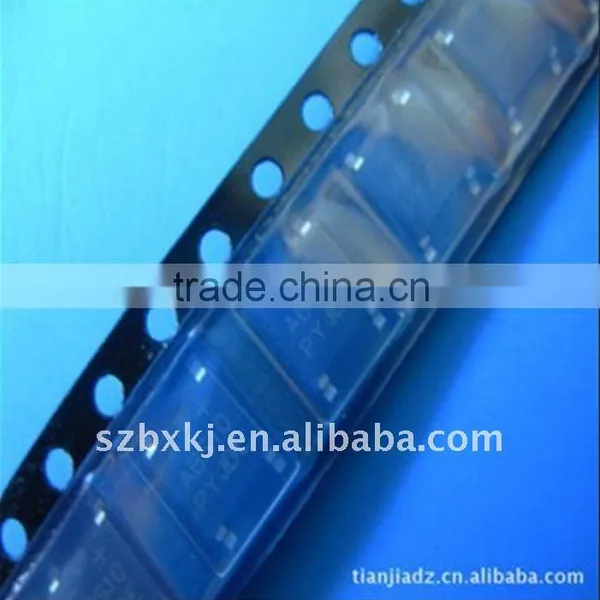

ABS6 GPP Bridge Diode

ABS6 GPP Bridge Diode thumbnail-1
ABS6 GPP Bridge Diode photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
BX.PY
Model Number:
Bridge rectifiers
Contact Supplier Request Quote Chat Now
Shenzhen Bingxu Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name BX.PY
Model Number Bridge rectifiers
Type Rectifier Diode
Package Type Through Hole
Max. Reverse Voltage 600v
Max. Forward Current 1.0A

Specifications

GPP Bridge Diodes ABS 06
1,600V, 1A
2,Glass passivated
3,High surge current capability

ABS2 THRU ABS13



Product discription: Single Phase 1.0 AMP. Glass Passivated Bridge Rectifiers

1)Part Number: ABS6

2)Package: ABS

3)IF(AV): 0.8A,1.0A

4)VRRM:800V

5)VRMS: 560V

6)VF: 0.95V

7)IR: 10mA at 25



Type Number

SYM

BOL

ABS2

ABS4

ABS6

ABS8

ABS10

ABS13

units

Maximum Recurrent Peak Reverse Voltage

VRRM

200

400

600

800

1000

1300

V

Maximum RMS Voltage

VRMS

140

280

420

560

700

910

V

Maximum DC blocking Voltage

VDC

200

400

600

800

1000

1300

V

Maximum Average Forward rectified Current

On glass-epoxy

On aluminum substrate

IF(AV)



0.8

1.0



A

Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rate load (JEDEC method)

IFSM

30

A

Maximum Forward Voltage Drop per element at 0.4A DC

VF

0.95

V

Maximum DC Reverse Current                     TA =25°C

at rated DC blocking voltage                        TA =125°C

IR

10.0

200.0

μA

I2t Rating for Fusing (t 8.3ms)

I2t

3.74

A2Sec

Typical Thermal Resistance                            (Note )

RJA

80

°C /W

Storage Temperature

TSTG

-55 to +150

°C

Operating Junction Temperature

TJ

-55 to +150

°C



FEATURE
*.Glass passivated junction.
*.Ideal for printed circuit board.
*.Reliable low cost construction utilizing molded plastic technique.
* .High surge current capability.
*.High temperature soldering guaranteed: 260/10 seconds /0.375"(9.5mm) lead length at 5 lbs., ( 2.3 kg ) tension
* .Small size, simple installation.


MECHANICAL DATA
.Case: Molded plastic
.Epoxy: UL 94V-0 rate flame retardant
.Lead: MIL-STD- 202E, Method 208 guaranteed
.Polarity: As marked



APPLICATIONS:

• Wide range in communication & measuring equipment
• Commercial & Industrial applications
• Automotive electronics applications
• Wireless communications
• PDA and Palm Pilots



ABS6 GPP Bridge Diode

High temperature soldering guaranteed:
260°C / 10 seconds / 0.375” ( 9.5mm )
lead length at 5 lbs., ( 2.3 kg ) tension
