Help CenterLong Service Time Customized Price Outdoor Escalator
Related Products
-
Online Shopping Comfortable Low Noice Lift Korea Car ElevatorUS$ 10,000 - 20,000MOQ: 1 Set -
Outstanding Used Home Elevators for Sale Food Lift DumbwaiterUS$ 3,000 - 10,000MOQ: 1 Set
-
New Design Standard Home Gearless Price Passenger Lift ElevatorUS$ 8,880 - 15,000MOQ: 1 Set
-
Residential Price Gearless Passenger Lift Elevator for HotelUS$ 8,880 - 15,000MOQ: 1 Set
-
Best-selling Residential Cheap Price Gearless Lift Small Home ElevatorUS$ 8,880 - 15,000MOQ: 1 Set

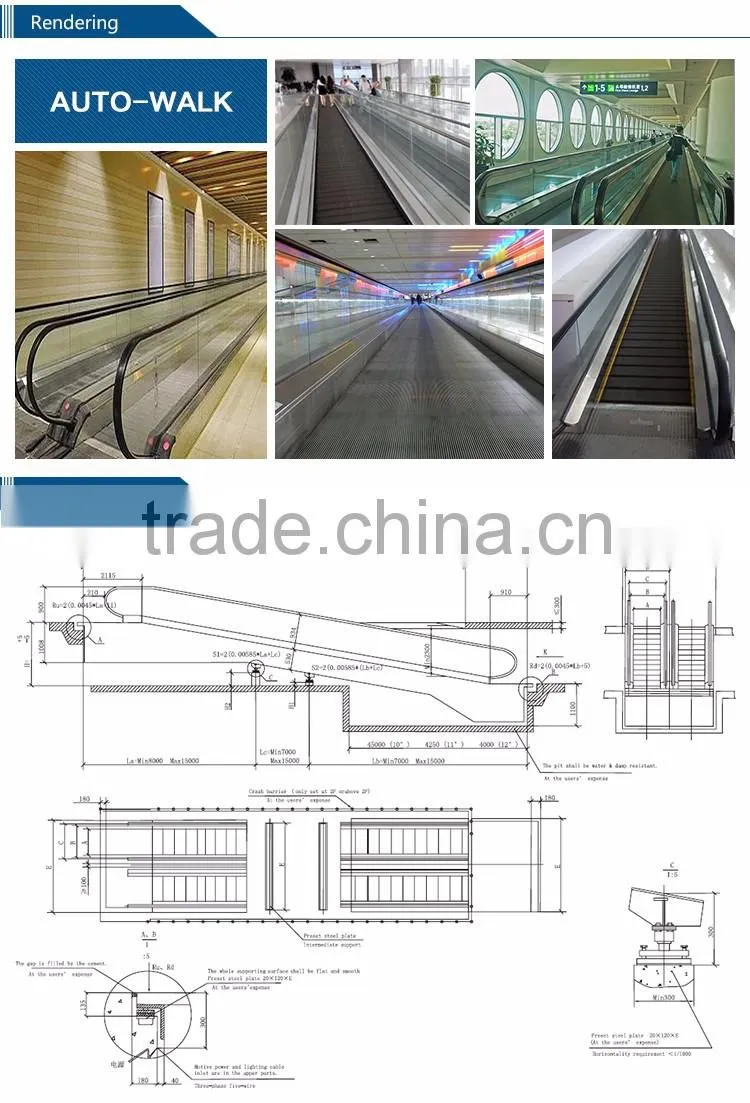

Specification
| Lifting height | Center Support | La(mm) | Lb(mm) | Lc(mm) | ||
| From | To | S1 | S2 |
|||
| 1601 | 2663 | 1 | L-7000 | 700 | ||
| 2664 | 4151 | 1 | 15000 | L-15000 | ||
| 4152 | 58511000 | 1 | 1 | 15000 | 7000 | L-2000 |
| A | H2 | H1 | ||||
| 10° | H2=H-(La-1995)*0.1763-840 | H1=H2-(Lc*0.1763) | ||||
| 11° | H2=H-(La-2055)*0.1944-840 | H1=H2-(Lc*0.1944) | ||||
| 12° | H2=H-(La-2115)*0.2126-840 | H1=H2-(Lc*0.2126) | ||||
| Step width (mm) |
Lifting height (mm) |
Speed (m/s) |
Person |
Inclination (°) |
Traction machine power(KW) |
Power capacity (KVA) | Rated current (A) |
| 800 | 1000-3800 | 0.5 | 6750 | 10,11,12 | 7.5 | 15 | 39 |
| 3800-6000 | 11 | 22 | 58 | ||||
| 1000 | 1000-3000 | 0.5 | 9000 | 10,11,12 | 7.7 | 15 | 39 |
| 3000-4800 | 11 | 22 | 58 | ||||
| 4800-6000 | 15 | 30 | 78 |
Standard Function
1.Two direction moving
2.Emergency stop
3.Maintenance operation
4.Illumination for the passenger
5.Fault display
6.Static electricity protection
7.Emergency stop button
8.Skirting guard
9.Handrail entry safety protection
10.Main drive chains safety protection
11.Unintentional reversal protection
12.Phase failure protection
13.Over load protection
14.Step sagging protection
15.Step chains safety protection
16.Comb safety protection
1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevator manufacturers.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator manufacturer.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
