Cheap Passenger Elevators, China Lifts and Elevators, Residential Elevator for Passengers

Passenger Elevators and Lifts, Residential Elevators, Commercial Elevators and Lifts for Hotel and Office Building,Machine Room(Small Machine Room) and Machine Roomless Passenger Elevators

Cheap Passenger Elevators, China Lifts and Elevators, Residential Elevator for Passengers

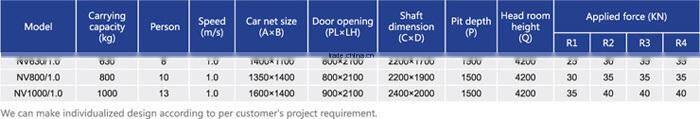

Specifications:

1.Capacity:630kg-1000kg Speed:1.0m/s
2.Safety & reliable and energy-savin

3. Best Materials with Competitve Price

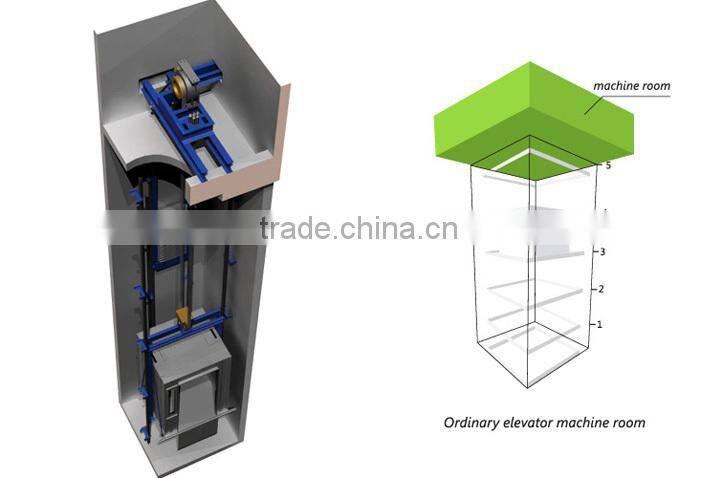

Machine Room (Small Machine Room) Passenger Elevator

Are you looking for an elevator for a building up to 25 floors?
NOVA NV SERIES is the best choice for you.
Its traditional design with a machine-room is sophisticated, yet simple, highly standardized and quickly installed.
No complicated specifications are required.

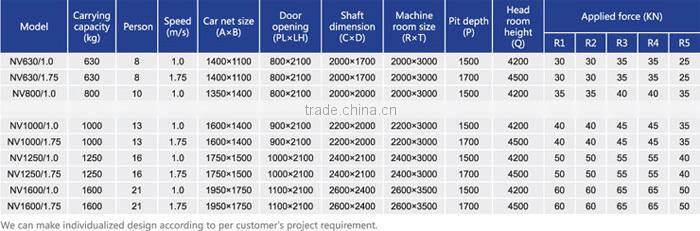

Key figures
Capacity: 630~1600kg

Speed: 1.0~1.75m/s

Nova machine room series adopt the high degree mature VVVF control technology applying on the traditional three phase asynchronous motor, through the deceleration on turbine and worm of high degree of accuracy, make every elevator cabin work according to the best running curve, making the passenger feel more comfortable.

Excellent Performance

1. Using Traction Machine of compact structure and excellent performance, its reliable running effect and long working life have been approved by long history.
2. Using 32 bit anti-jamming microprocessor to realize real-time control, low fault, good reliability and strong functions.
3. The application of CAN-BUS full serial communication system, reducing the cores of cable, and make it possible that elevators are distributed controlled by multi-microprocessors.
4. High speed controllers and high degree of accuracy sensors work together, catch the exact position of cabin at any time, providing perfect brake curve, make the leveling precision degree within ±3mm.
5. By using VVVF control technology and Gleason tooth synchronous belt door operator system, the elevator runs more stable with high efficiency, lower noise and fault.

___________________________________________________________________________________________

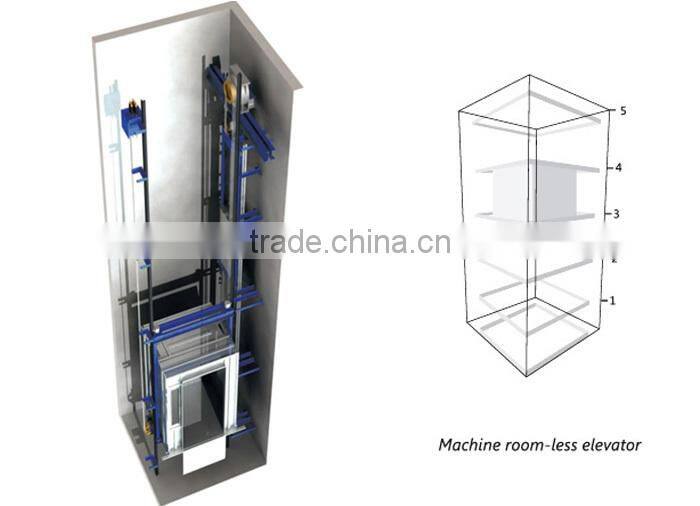

Machine room-less Passenger Elevator

In this crowded world, space is vital to us.
NOVA know it and that’s what we have been working on.

Key figures

Capacity: 630~1000kg

Speed: 1.0m/s

The occurrence of machine room-less elevator opens an important page on the elevator industry. Permanent magnetic synchronous gearless traction technology’s occurrence lays the steady foundations for machine room-less elevator. PM synchronous gearless traction machine owns small volume, light weight and high transmission efficiency, and it can be placed inside the hoistway under the situation of machine room-less. The plan can also provide the designers more free space when designing besides for saving the architect cost.

Excellent Performance

1. PM synchronous gearless traction machine owns small volume, light weight, make the machine room cancelled, reducing the architect cost.
2. PM synchronous gearless traction machine don’t need to use lubrication oil, reducing the maintenance cost and satisfying green environmental protection requirements.
3. Using 32 bit anti-jamming microprocessor to realize real-time control, low fault, good reliability and strong functions.
4. The application of CAN-BUS full serial communication system, reducing the cores of cable, and make it possible that elevators are distributed controlled by multi-microprocessors.
5. By using VVVF control technology and Gleason tooth synchronous belt door operator system, the elevator runs more stable with high efficiency, lower noise and fault.

Passenger Elevator Parts

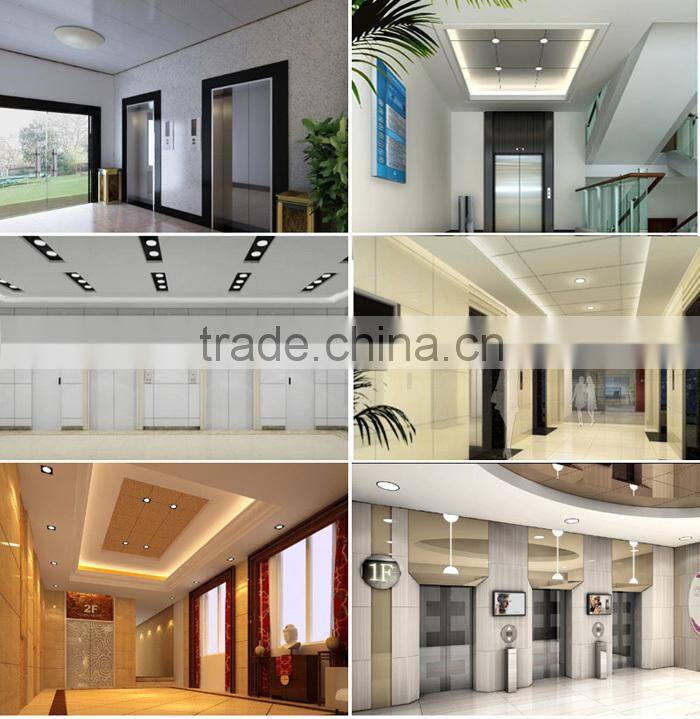

Sample Passenger Elevator

Nova welcomes you to visit our website or email us to get our passenger elevator preliminary inquiry sheet for your selection to meet your specific requirements.
