Specifications
1.For All steel radial light truck tyre2.one stage
3.Dia.of bead:17.5"-24.5"
4.Good quality with excellent service

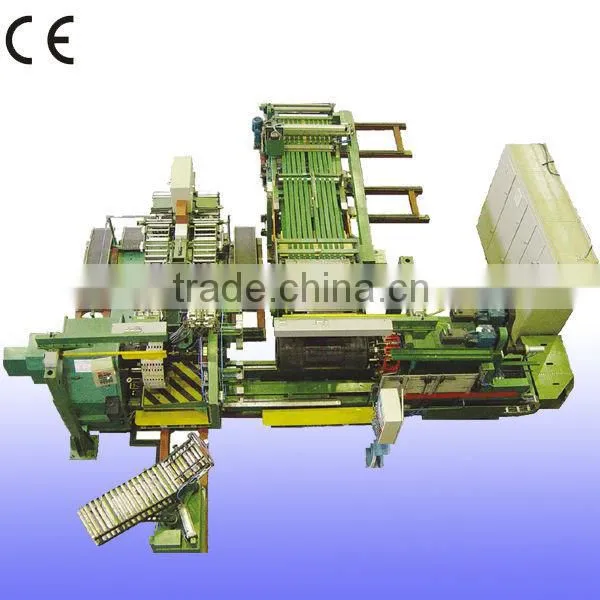

Plastsea Single Stage All-steel Radial Light Truck Tyre Building Machine (Two Drums)
This machine of Plastsea is used for making the all-steel radial light truck tyre. It has two drums for the green tyre making.
Below is the parameters, if you need further details, please tell us.
No. |
Item |
Parameter |
1 |
Diameter of bead |
17.5”-24.5” |
2 |
Tyre size |
7R17.5-11R17.5, 8R19.5-315/80R19.5, 8.25R20-12.00R20, 10R22.5-215/80R22.5, 11R24.5-12R24.5, 11.00R24-12.00R24 |
3 |
Diameter range of green tyre |
740-1210mm |
4 |
Shuttle range of shoulder |
300 mm |
5 |
Width of ply |
285-1050mm |
6 |
Max inner liner width |
390-920mm |
7 |
Width of belt min/max |
52-410mm |
8 |
Width of tread |
160-400mm |
9 |
Max width of chafer |
160mm or 185mm |
10 |
Max width of sidewall |
400mm 80-1150mm |
11 |
Overall size |
12060x9620x2250mm |
If you need more parameters, please don't hesitate to let us know. We welcome your visiting.
