Home > Manufacturing & Processing Machinery > Rubber Machinery > Rubber Raw Material Machinery > Rubber Mixing Mill/open Mixing Mill

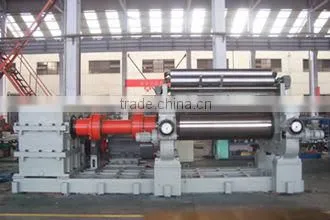

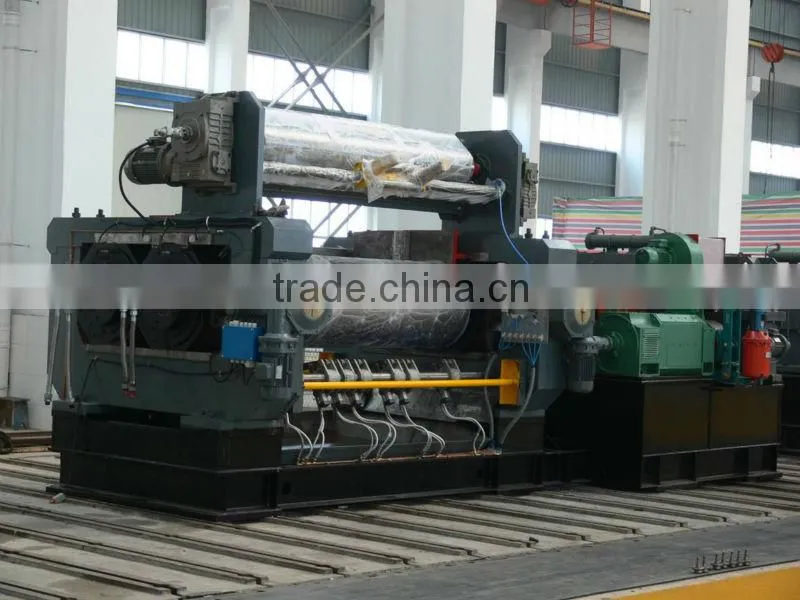

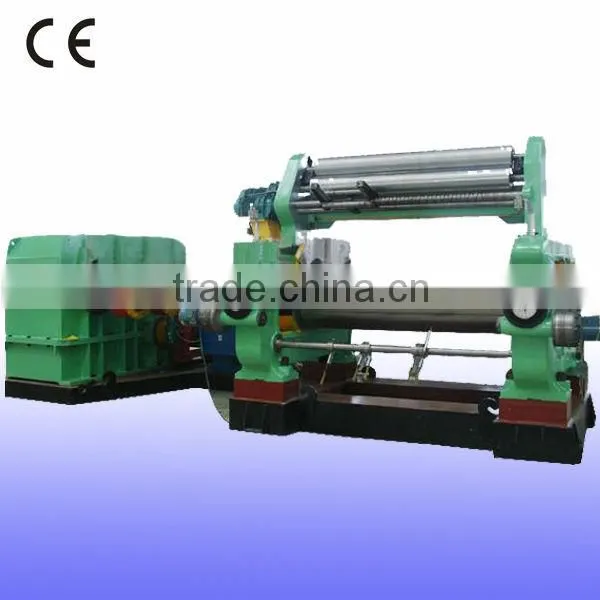

Rubber Mixing Mill/open Mixing Mill

Name: Rubber Mixing Mill/open Mixing Mill
Brand: PLASTSEA
SKU: 134087083
Availability: InStock

Rubber Mixing Mill/open Mixing Mill thumbnail-1

Rubber Mixing Mill/open Mixing Mill thumbnail-2

Rubber Mixing Mill/open Mixing Mill thumbnail-3

Rubber Mixing Mill/open Mixing Mill photo-1

Rubber Mixing Mill/open Mixing Mill photo-2

Rubber Mixing Mill/open Mixing Mill photo-3

US$ 10,000 - 50,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Open Mixing Mill

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Qingdao Plastsea International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Open Mixing Mill

Place of Origin Shandong, China

Brand Name PLASTSEA

Voltage 220v 230v 380v 440v

Power(W) 48kw 54kw

Weight 3t~51t

Certification ISO9001 CE

Warranty 12 months

Rubber Mixing Mill/open Mixing Mill

——PLASTSEA MACHINERY CO., LTD

Product Description

Two Roll Rubber Mixing Mill main uses are following in rubber product factory: Natural rubber refining,

raw rubber and compound mixing, Rubber beating mixing and rubber tabletting.

Model			XK-250	XK-300	XK-360	XK-400	XK-450	XK-550	XK-560	XK-660	XK-710
Roller diameter		mm	250	300	360	400	450	550	560-510	660	710
Roller working length		mm	620	750	900	1000	1200	1500	1530	2130	2200
Front roller linear speed		m/min	16.3	15.1	16.7	19.3	21.8	22.5	27.2	28	31.9
Max roll space		mm	8	10	10	10	10	15	15	0.5-15	0.5-15
Capacity per batch		kg	10-15	15-20	20-25	18-35	25-50	50-65	50-65	165	190
Motor power		Kw	18.5	22	30	37	55	110	90	240	280
Dimensions	L	mm	2722	3580	4200	4920	5405	6646	6270	7280	8185
	W	mm	1115	1550	1780	1780	1740	2736	2282	3400	3910
	H	mm	1345	1695	1760	1800	1790	2105	2000	2530	2270
Gross weight		t	~3.2	~5.2	~6.5	~8	~11.4	~22	~22.5

Open mixing mill's Features:

1.Tailored structure,easy to operate.

2.There are many speed and speed ratios availabe which can availabe which can satisfy most customer's formula and processing requirements

3.Fram,fram cap and base,looking very nice,are welded and treated by annealing for stress relieving.

4.Chilled alloy cast iron roll is abrasion resistance with long service life

5.The speed reducer is the hard service gear reducer of class 6 precision,which has long service life and low noise

6.Perfect emergency stop device can ensure the safty of personnel and equipment.

7.The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.

8.Stock pan is easy to clean up with dislodging device

9.Human nature designed operating system reduce labor intensity.

10.Modular structure offer various structures for customer's option.

11.The flexible design system can satisfy customer's special design requirement within the shortest time.

12.A load test running will be made to the assembled equipment in our company to save debugging time for customers

Features & Advantages of rubber mixing mill machine :

1.The main parts of the machine adopt welded steel structure,the base is welded from H type steel as a whole,to make the machine be convenient to install and repair,and surable.

2.The roller bearing has oil seal device,can be done many kinds of lubricating methods such as grease cup,grease pump,thin oil cup and thin oil pump cycle and so on..

3.The roller bearing adopts self-aligning roller bearing,except it can keep the running positional accuracy of the rollers and the accurate roller gap long time,the biggest advantage is energy saving:from the actual test we get that the bearing can save more than 20% than using nylon sleeve and other sliding bearing,if 8 hours’ working time per day,it can save about 20000kwh per year,remarkable economical benefit.

4.This machine adopts hard tooth surface cylindrical gear reducer to run the rear roller directly(while the traditional machine adopts open big and small gears for transmission),so this makes the machine be compact structure,good-looking appearance,easy maintain,stable running,low noise,difficult to wear,long service life and so on.

5.With braking device,when emergency incident happens,press the stop button to brake hard,safe and reliable.

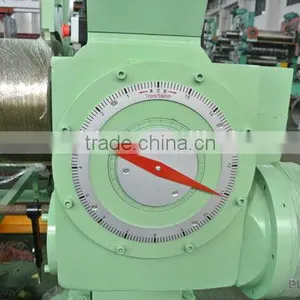

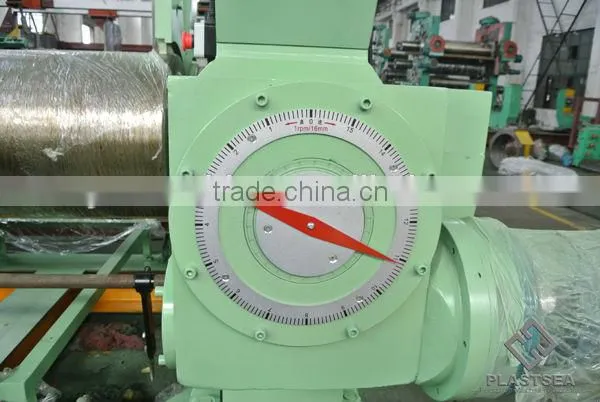

6.The roller gap adopts worm and gear to adjust,operation and effort,convenient and reliable.

7.This open mill rubber mixing machine adopts electric control to adjust rubber guide gap,with the features of convenientand accurate on operation,save both time and labour,civilized production etc.
