Home > Products > Rubber Batch Off Cooling > High quality rubber batch-off cooling machine
High quality rubber batch-off cooling machine
- 100 Set / Sets per Month
- QINGDAO
- T/T
Product Details
Condition: | New | Type: | Tire Machine | Tire Machine Type: | Other Tire Machine |
Place of Origin: | Shandong, China | Brand Name: | PLASTSEA | Model Number: | XPG-600 XPG-800 XPG-900 |
Voltage: | 220v 380v 420v 440v | Power(W): | 110KW | Weight: | 11~34 TON |
Certification: | ISO CE | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Professional manufacturer of rubber batch-off cooling machine
——PLASTSEA MACHINERY CO., LTD
Rubber sheet cooling machine can be designed and manufactured based on customers’ parameter.
1. Application
1. This is the downstream auxiliary to the internal mixer or the dispersion mixer.
2. It works with the twin screw roller-die extruder or sheeting mill and is designed to perform continuous operations of rubber slad converying,air cooling,drying,cutting and wig-wag stacking.
2. Features
1. It achieves continuous working and high-efficiency production by integrating the operations of air cooling, drying, cutting and wig-wag stacking .
2. Dipping slab for separate applying to achieve uniform applying and not polluting the environment.
3. Long air-cooling time brings good cooling effect.
4. Fixed-length cutting and adjustable cutting length.
5. PLC technology is adopted, which is easy for full-process control.
3. Parameter
Parameters/version | XPG-600-700 | XPG-800-900 |
Lab specification | (4-12)*600-700 (mm) | (4-12)*800-900 (mm) |
Front take-away conveyor belt max liner velocity | 400 (m/min) | 400 (m/min) |
Rubber strip hanging barwoving speed | 0.117-2.2 (m/min) | 400 (m/min) |
Axial fan | 0.37kw 5760m³/h | 0.37kw 5760m³/h |
Swing rang and frequency | 1.3m 10-16/min | 1.3m 10-16/min |
Rubber strip temperature after cooling | ≤+5°C ≤room temperature+5°C | ≤+5°C ≤Room temperature+5°C |
Speed-adjusting frequency motor of lifting swing edvice | XWD1.5-3-1/11 | XWD7.5-7-1/43 |
Speed-adjusting frequency motor of rubber swing edvice | XWD1.1-5-1/87 | XWD1.1-5-1/87 |
Rubber bar pitch | 160or101.6 | 160or 101.6 |
Max hanging height of rubber strip | 1400mm | 1400mm |

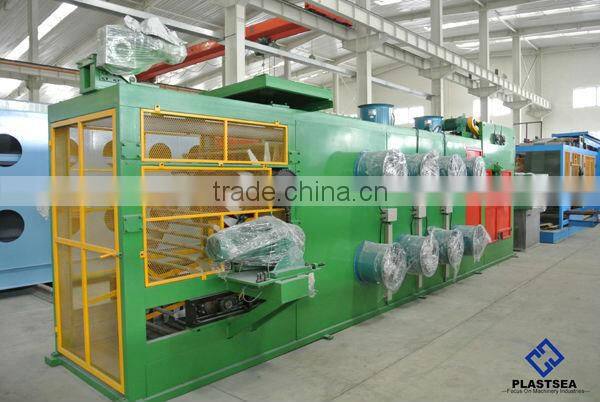

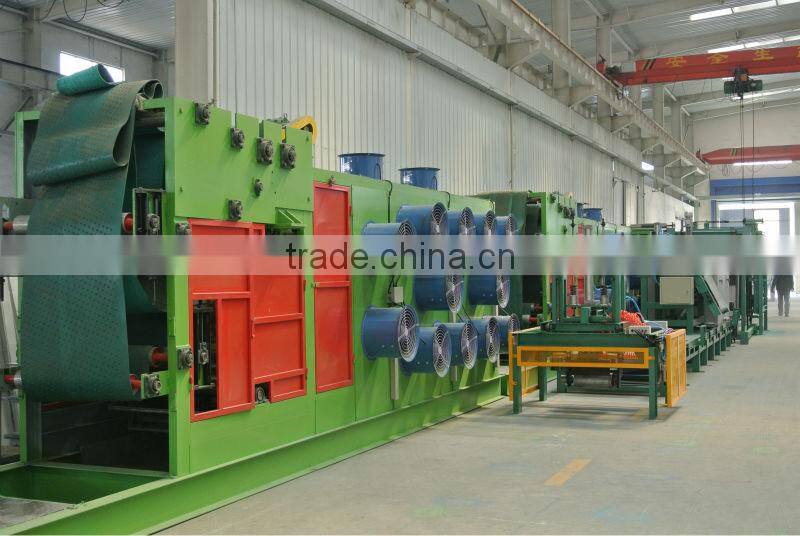

PRODUCT SHOW
1. Reply your inquiry in 24 working hours.
2. Customized design is available. UEM&UBM are welcomed.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
4. Professional supplier: We are specialized in producing all kinds of machinery with competitive price and good quality.
5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
As a professional machinery supplier,Plastsea Corp. was established by an experienced and professional team.It's located in Qingdao city which is the rubber&plastic industry center of China with the top level institute and university .
After several years developing,Plastsea has offered its excellent service and products to more than 30 countries in the world.
At present ,Plastsea focuses on Rubber and Tyre industries.Through joint-venture and cooperation methos,Plastsea has developed eight fabrication bases in China.The products cover internal mixer,twin-screw sheer,batch off cooling molds,tyre building drum,tyre bladder,tyre bladder mold,etc.
Welcome to visit our company and we can show you the machine in working condition:
If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
