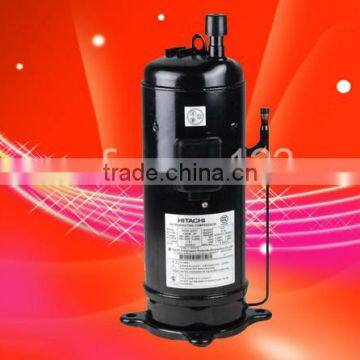

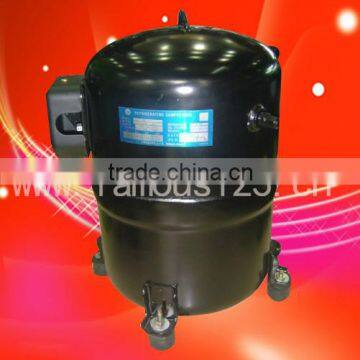

3.5hp Hitachi Compressor for Heat Pump 350DH

3.5hp Hitachi Compressor for Heat Pump 350DH thumbnail-1
3.5hp Hitachi Compressor for Heat Pump 350DH thumbnail-2
3.5hp Hitachi Compressor for Heat Pump 350DH thumbnail-3
3.5hp Hitachi Compressor for Heat Pump 350DH thumbnail-4
3.5hp Hitachi Compressor for Heat Pump 350DH thumbnail-5
3.5hp Hitachi Compressor for Heat Pump 350DH thumbnail-6
3.5hp Hitachi Compressor for Heat Pump 350DH photo-1
3.5hp Hitachi Compressor for Heat Pump 350DH photo-2
3.5hp Hitachi Compressor for Heat Pump 350DH photo-3
3.5hp Hitachi Compressor for Heat Pump 350DH photo-4
3.5hp Hitachi Compressor for Heat Pump 350DH photo-5
3.5hp Hitachi Compressor for Heat Pump 350DH photo-6
US$ 100 - 1,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
Hitachi
Model Number:
350DH
Contact Supplier Request Quote Chat Now
Dongguan Famous Refrigerant Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Japan
Brand Name Hitachi
Model Number 350DH
Type Refrigeration Compressor
Application Refrigeration Parts
Certification CE

Hitachi Piston Compressor H Series 1,200AH,250AH,300AH,350DH,400DH,500DH,600DH
2,For Heat Pump and Air Conditioning
3,Use R-22

                                             R22 Hitachi Piston Compressor H series





Features:



1,High efficiency, high reliability, small size, lightweight, low vibration and low noise have been key demands of the present age in the air- conditioning compressor.
2,HITACHI proudly presents the scroll compressor to answer these demands. It is completely new and revolutionary in construction including the following features.
3,WORLD FIRST IN SCROLL COMPRESSORS
4,FEWER PARTS
5,HIGH EFFICIENCY
6,LOW SOUND, LOW VIBRATION
7,HIGH RELIABILITY
8,WIDE OPERATING RANGE



Technical Datas:

Application Refrigerant Series Model Rafed output Frequency Cooling Capacity EER Sound Level Displacoment Oil Charge Weight Power Source
3 p 1p
200V-50Hz 200/220V-60Hz 200V-50Hz 220V-60Hz 346/380V-50Hz 380/400V-60Hz 380/415V-50Hz 440V-60Hz 220V-60Hz 220/240V-50Hz
3P 1P 3P 1P 3P 1P
HP Hz kcal/h W Blu/h Kcal/wh dB(A) CM³ CM³ Kg
For Heat Pump and Air Conditioning R22 H 200AH 2 50 4650 5400 18450 2.65 2.6 52 53 30 1.0 23 25 √       √ √
60 5550 6450 22020 52 54
250AH 2.5 50 5800 6750 23020 2.7 2.65 53 54 37.5 1.0 24 26 √ √ √ √ √ √
60 7000 8150 27780 53 55
300AH 3 50 7300 8500 28970 2.7 2.65 54 55 47 1.0 25 27 √ √ √ √ √ √
60 8800 10250 34920 54 55
350DH 3.5 50 8650 10050 34330 2.6 2.55 53 54 56 1.2 33 35   √ √ √   √
60 10300 12000 40870 54 56
400DH 4 50 10100 11750 40080 2.7 2.6 54 55 64.2 1.5 34 35 √ √ √ √ √ √
60 12200 14200 48410 55 57
500DH 5 50 12600 14650 50000 2.7 - 56 - 80 1.8 35 - √ √ √ √
60 15200 17650 60320 57 -
600DH 6 50 14100 16400 55950 2.7 - 57 - 90 1.8 36 - √
60 17000 19750 67460 58 -







 Applicatian

Heat Pump and Air Conditioning
Evaporating Temperature 72°C(45°F)
Condensing Temperature 54.4°C(130°F)
Liquid Temperature 46.1°C(115°F)
Return gas Temperature 35°C(95°F)
Ambient Tamperature 35°C(95°F)
Power Source Rated Voltage





Pictures:

3.5hp Hitachi Compressor for Heat Pump 350DH3.5hp Hitachi Compressor for Heat Pump 350DH3.5hp Hitachi Compressor for Heat Pump 350DH3.5hp Hitachi Compressor for Heat Pump 350DH3.5hp Hitachi Compressor for Heat Pump 350DH3.5hp Hitachi Compressor for Heat Pump 350DH
