ZB Series Refrigeration Copeland Compressor ZB58KCE-TFD
US$ 200 - 2,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Thailand
Brand Name:
Copeland
Model Number:
ZB58KCE-TFD
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Copeland ZB114KCE-TFDUS$ 200 - 2,000MOQ: 1 Unit -
Semi-hermetic DWM Copeland Compressor D2DD-50XUS$ 1,000 - 10,000MOQ: 1 Unit
-
4hp DWM Copeland Refrigeration Compressor D2DL-40 XUS$ 1,000 - 10,000MOQ: 1 Unit
-
Copeland Compressor Semi-hermetic Compressor D2DB-750,D2DB-75XUS$ 1,000 - 10,000MOQ: 1 Unit
-
DWM Copeland Semi-hermetic Compressor,semi-hermetic Copeland Compressor,dwm Copeland Compressor D2DB-500 DCUS$ 1,000 - 10,000MOQ: 1 Unit
Place of Origin
Thailand
Brand Name
Copeland
Model Number
ZB58KCE-TFD
Type
Refrigeration Compressor
Application
Refrigeration Parts
Certification
CE
ZB Copeland Refrigerator Compressor
1,ZB114KCE,ZB95KCE,ZB76KCE,ZB66KCE,ZB58KCE
2,ZB30KCE,ZB38KCE,ZB42KCE,ZB45KCE,ZB50KCE etc
1,ZB114KCE,ZB95KCE,ZB76KCE,ZB66KCE,ZB58KCE
2,ZB30KCE,ZB38KCE,ZB42KCE,ZB45KCE,ZB50KCE etc
Type: Hermetic scroll compressors
Producer: Copeland
Series: ZB
Model: ZB58KCE-TFD
Technical data
| Displacement [m³/h]: | 22,1 | |
| Sound power [dBA]: | 76 | |
| Sound power with sound shell [dBA]: | 66 | |
| Sound pressure level [dB]: | 65 | |
| Net Weight [kg]: | 60 | |
| Oil charge [dm³]: | 2,5 | |
| Maximum high pressure [bar]: | 32 | |
| Maximum standstill pressure [bar]: | 22,6 | |
| Minimal lowside temperature [°C]: | -35 | |
| Maximum lowside temperature [°C]: | 50 | |
| PED category: | 2 |
Electrical data
| Power supply [V/~/Hz]: | 380-420V/3/50Hz | |
| Locked rotor current [A]: | 95 | |
| Max. operating current [A]: | 15,4 | |
| Winding resistance [Ω]: | 1,8 |
Connections
| inches | |||
| Suction Rotolock valve connection: | 1 3/4" | ||
| Discharge Rotolock valve connection: | 1 1/4" |
- screwed sight glass
- Rotalock connections
- Schraeder connection
- assembly washer
- discharge temperature control
Application
- high and medium temperatures (from 10 ºC to -40 ºC)
- refrigerants R134a, R404A/R507 and R407C

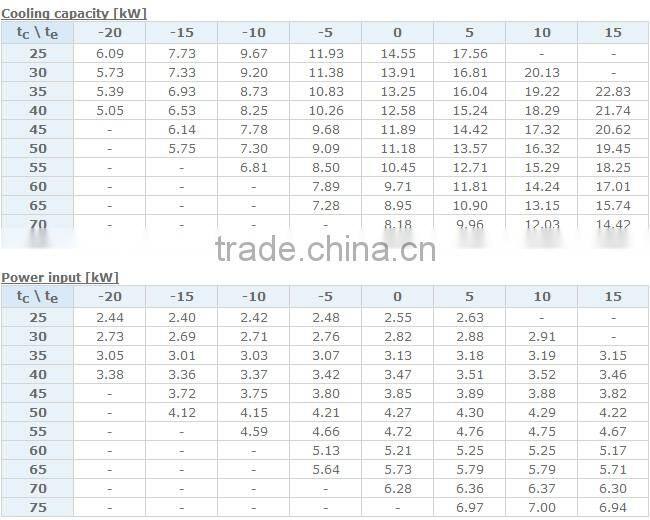

Capacity : R134A,R407C,R404A/R507
Drawing:
| A | 476 | mm |
| B | 232 | mm |
| C | 190 | mm |
| D | 264 | mm |
Pictures:
