4hp DWM Copeland Refrigeration Compressor D2DL-40 X
US$ 1,000 - 10,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Germany
Brand Name:
Copeland
Model Number:
D2DL-40 X
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Copeland Compressor Semi-hermetic Compressor D2DB-750,D2DB-75XUS$ 1,000 - 10,000MOQ: 1 Unit -
DWM Copeland Semi-hermetic Compressor,semi-hermetic Copeland Compressor,dwm Copeland Compressor D2DB-500 DCUS$ 1,000 - 10,000MOQ: 1 Unit
-
DWM Copeland Semi-hermetic Compressor D2DB-500 DC,D2DB-50 XUS$ 1,000 - 10,000MOQ: 1 Unit
-
DWM Copeland Semi-hermetic CompressorUS$ 1,000 - 10,000MOQ: 1 Unit
-
DWM Copeland Compressor D3DA-500 DC,D3DA-50 XUS$ 1,000 - 10,000MOQ: 1 Unit
Place of Origin
Germany
Brand Name
Copeland
Model Number
D2DL-40 X
Type
Refrigeration Compressor
Application
Refrigeration Parts
Certification
CE
Semi-hermetic DWM Copeland Compressor all models
1,R-22,R134A,R407C,R404A/R507
2,from 5HP to 80HP
3,low price & high quality
1,R-22,R134A,R407C,R404A/R507
2,from 5HP to 80HP
3,low price & high quality
Type: Semi-hermetic piston compressors
Producer: Copeland
Series: DISCUS
Model: D2DL-40 X
Technical data
| Cylinder count: | 2 | |
| Displacement [m³/h]: | 23,7 | |
| Weight [kg]: | 140 | |
| Oil charge [dm³]: | 2,3 | |
| Max. operating current [A]: | 10 | |
| Locked rotor current [A]: | 55 | |
| Power supply [V/~/Hz]: | 380-420V/3/50Hz |
Connections
| milimeters | inches | ||
| Suction line: | 1 3/8" | ||
| Discharge line: | 7/8" |
Standard equipment
- oil pump
- oil sight glass
- Rotalock valves
- thermal protections
Optional equipment
- additional header cooling
- oil pressure switch
- crankcase heater
- unload starting
- capacity control

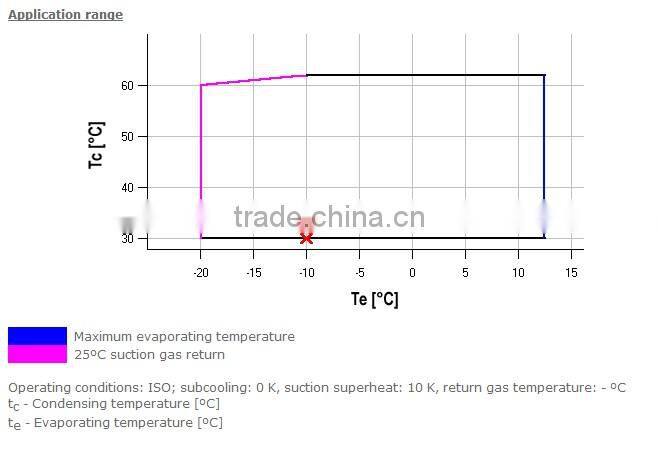

Application
-
high, medium and low temperatures
(R22 from 12,5 ºC to -50 ºC)
(R404A/R507 from 7 ºC to -50 ºC)
(R134a from 12,5 ºC to -20 ºC)
(R407A from 7 ºC to -45 ºC)
Capacity : R134A,R407C,R404A/R507

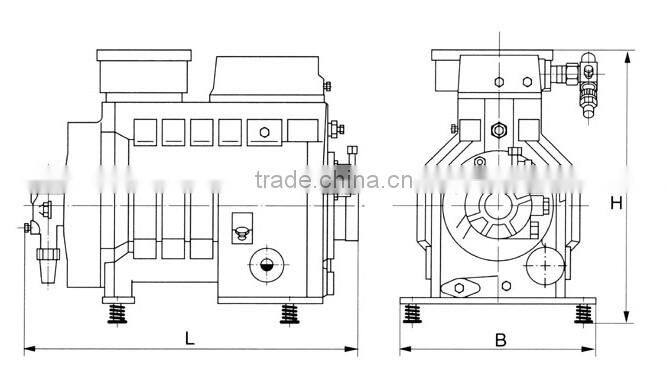

Dimensions:
| L | 670 | mm |
| B | 360 | mm |
| H | 750 | mm |

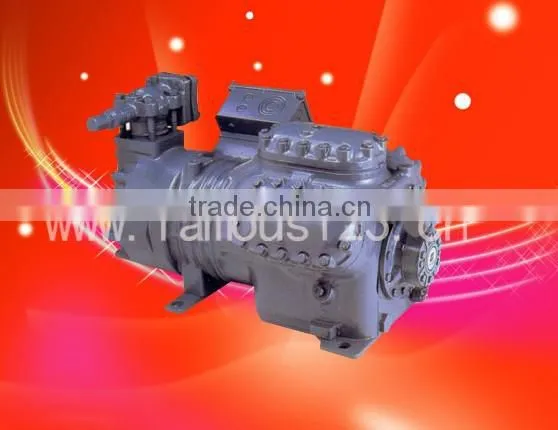

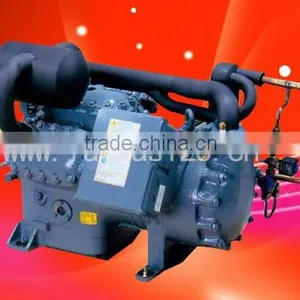

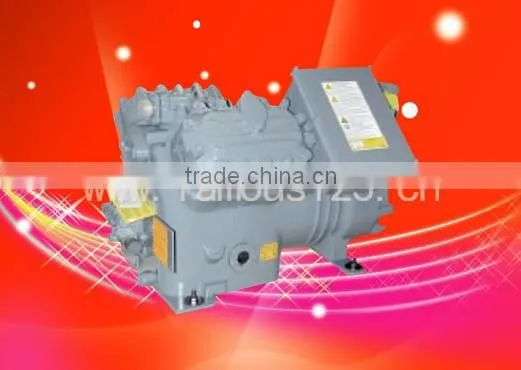

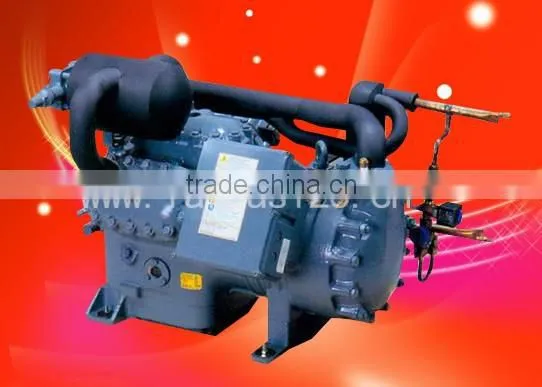

Pictures:
